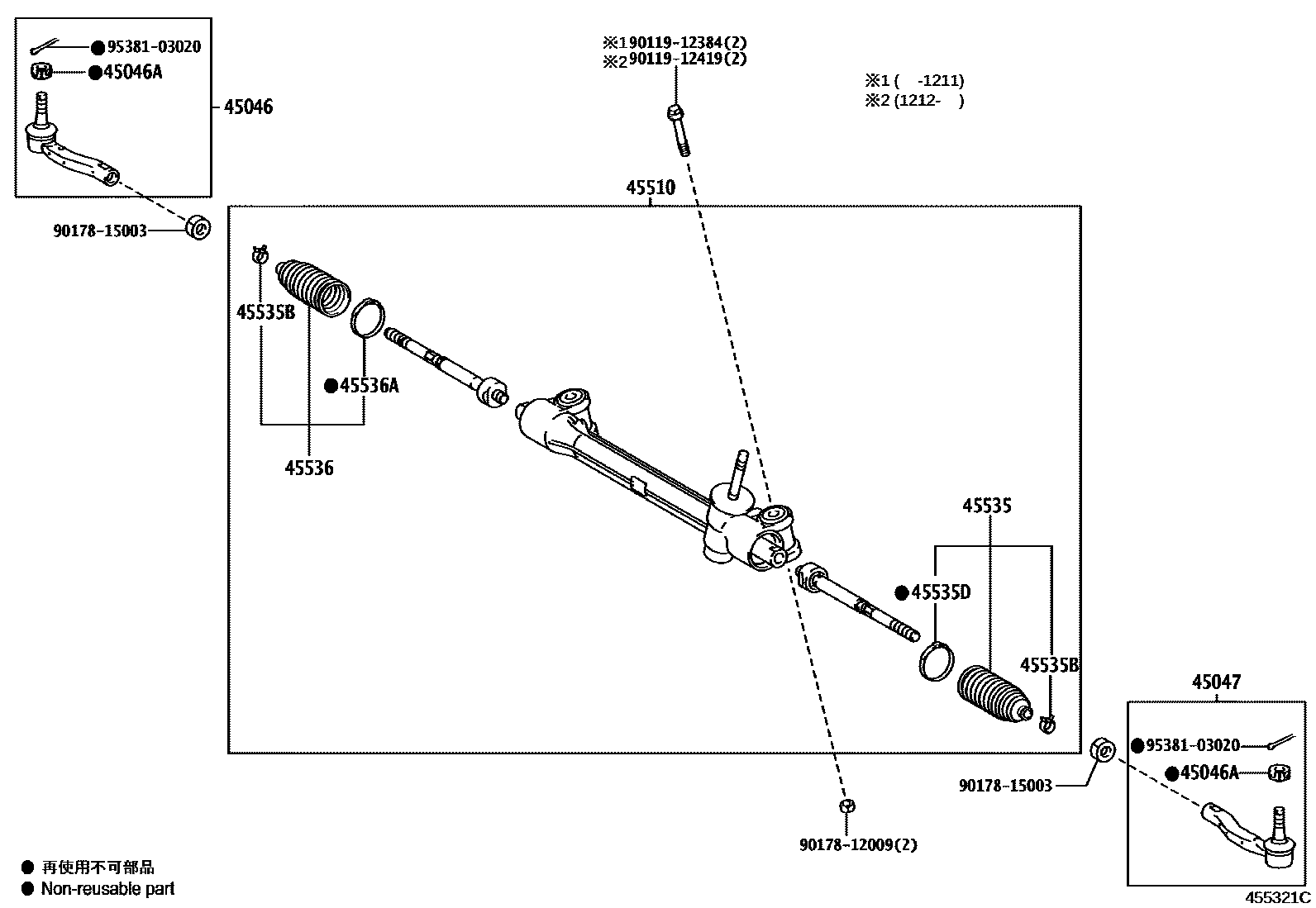

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-59115iNLP11#,NSP110200901

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNLP11#,NSP110200901

45047END SUB-ASSY, TIE ROD, LH

main45046-59115iNLP11#,NSP110200901

45510GEAR ASSY, STEERING

main45510-52070iNLP110,NSP110..RHD200901-201211

sub45510-52071

main45510-52071iNLP110,NSP110..RHD201212-201405

main45510-52210iNLP110,NSP110..LHD200901-201212

sub45510-52211

main45510-52211iNLP110,NSP110..LHD201301

main45510-52220iNLP115..LHD200902-201212

sub45510-52221

main45510-52221iNLP115..LHD201301-201405

main45510-52230iNLP115..RHD200902-201212

sub45510-52231

main45510-52231iNLP115..RHD201301-201405

45535BOOT, STEERING RACK, NO.1

main45535-59015iNLP11#,NSP110200901-201104

sub45535-59035

main45535-59035iNLP11#,NSP110201105

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iNLP11#,NSP110200901

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iNLP11#,NSP110200901

45536BOOT, STEERING RACK, NO.2

main45535-59015iNLP11#,NSP110200901-201104

sub45535-59035

main45535-59035iNLP11#,NSP110201105

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iNLP11#,NSP110200901

9011912384

main90119-12384

9011912419

main90119-12419

9017812009

main90178-12009

9017815003

main90178-15003

9538103020

main95381-03020

14 parts on this diagram · 2 diagrams in section
