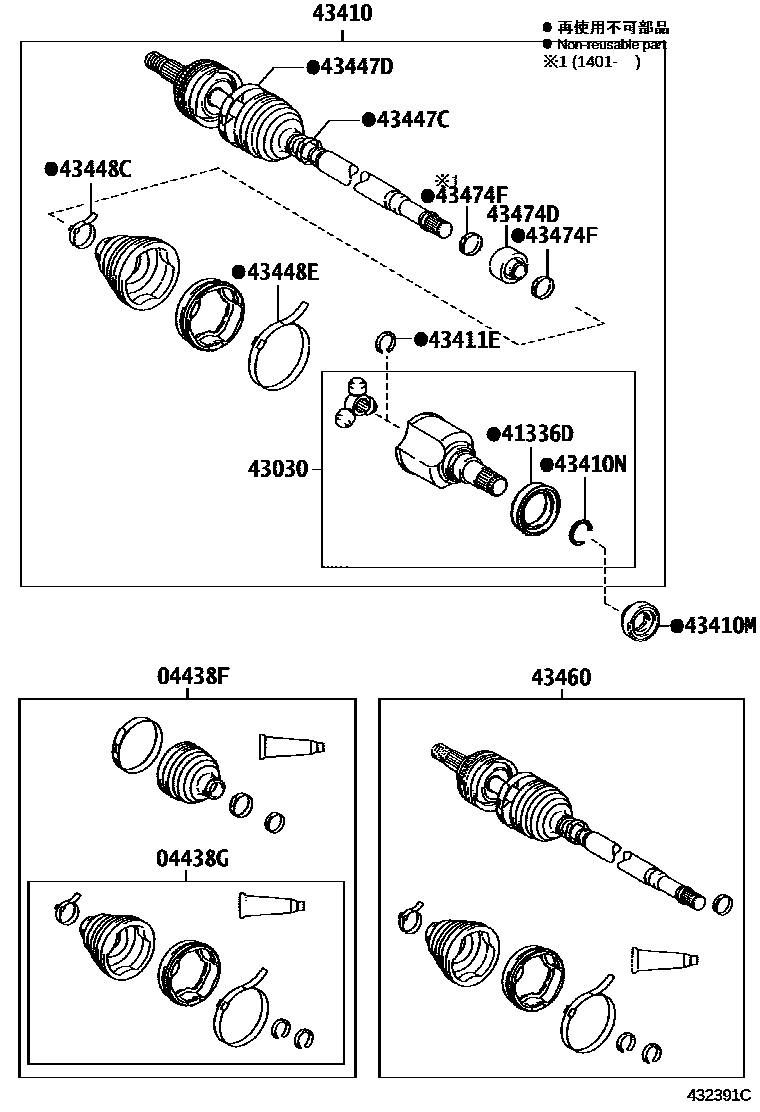

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-12530iNSP110¥10,800200901-200909

sub04427-52671¥10,800

main04427-12540iNLP110¥10,800200901-201003

sub04428-12740¥10,800

main04427-12760iNLP115¥10,800201003-201405

sub04427-12762¥10,800

main04427-52671iNSP110¥10,800200909-200911

sub04427-52890¥10,800

main04427-52820iNLP115¥10,800200902-201002

sub04427-12760¥10,800

main04427-52890iNSP110¥10,800200911-201002

sub04427-52891¥9,000

main04427-52891iNSP110¥9,000201003-201410

sub04427-52897¥9,000

main04428-12740iNLP110¥10,800201003-201405

sub04428-12780¥10,800

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-12310iNLP110¥6,700200901-201003

sub04438-12A00¥6,700

main04437-12410iNLP115¥6,700201003-201405

sub04437-12411¥4,150

main04437-52190iNSP110¥6,700200901-200909

sub04437-52191¥5,500

main04437-52191iNSP110¥5,500200909

main04437-52390iNLP115¥6,700200902-201002

sub04437-12410¥6,700

main04438-12A00iNLP110¥6,700201003-201405

sub04438-12A01¥4,150

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNSP110¥130200901

main41336-12060iNLP110¥200200901-201405

main41336-52020iNLP115¥250200902-201405

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-12131iNLP115¥20,600200902-201405

main43040-12120iNLP110¥16,600200901-201405

main43403-10011iNSP110¥19,500200901

sub43403-0W031¥16,200

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52290iNSP110¥82,800200901-201604

sub43410-52291¥82,800

main43410-52300iNLP110¥82,800200901-201405

main43410-52310iNLP115¥57,400200902-201405

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34037iNSP110¥350200901-201011

sub90311-34041¥350

main90311-34041iNSP110¥350201011-201604

sub90311-34054¥350

main90311-35062iNLP110¥350200901-201011

sub90311-35065¥270

main90311-35065iNLP110¥270201011-201405

main90316-28003iNLP115¥450200902-201405

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iNLP115¥110200902-201405

main90521-26004iNSP110¥100200901

main90521-27005iNLP110¥110200901-201405

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iNLP11#¥40200901-201405

main90520-22001iNSP110¥110200901

sub90520-22029¥90

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iNLP11#¥220200901-201405

main42345-52260iNSP110¥220200901

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iNLP11#¥340200901-201405

main42345-52250iNSP110¥330200901

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iNLP11#¥220200901-201405

main90949-01078iNSP110¥80200901

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iNLP11#¥330200901-201405

main90949-01146iNSP110¥350200901

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59415iNSP110¥55,800200901-200909

sub43460-59416¥55,800

main43460-59416iNSP110¥55,800200909-201410

sub43460-59666¥49,900

main43460-59666iNSP110¥49,900201411

sub43460-59669¥37,800

main43460-59755iNLP110200901-201003

sub43460-59756¥56,400

main43460-59756iNLP110¥56,400201003-201405

sub43460-59757¥56,400

main43460-59765iNLP115200902-201003

sub43460-59766

main43460-59766iNLP115201003-201405

sub43460-59767

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-12120iNLP110¥7,500200901-201405

sub43474-12210¥4,640

main43474-12160iNLP115¥2,480200902-201405

main43474-52090iNSP110¥3,940200901-201410

sub43474-52110¥1,520

main43474-52110iNSP110¥1,520201411

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iNLP115,NSP110¥700200901-201411

15 parts on this diagram · 3 diagrams in section
