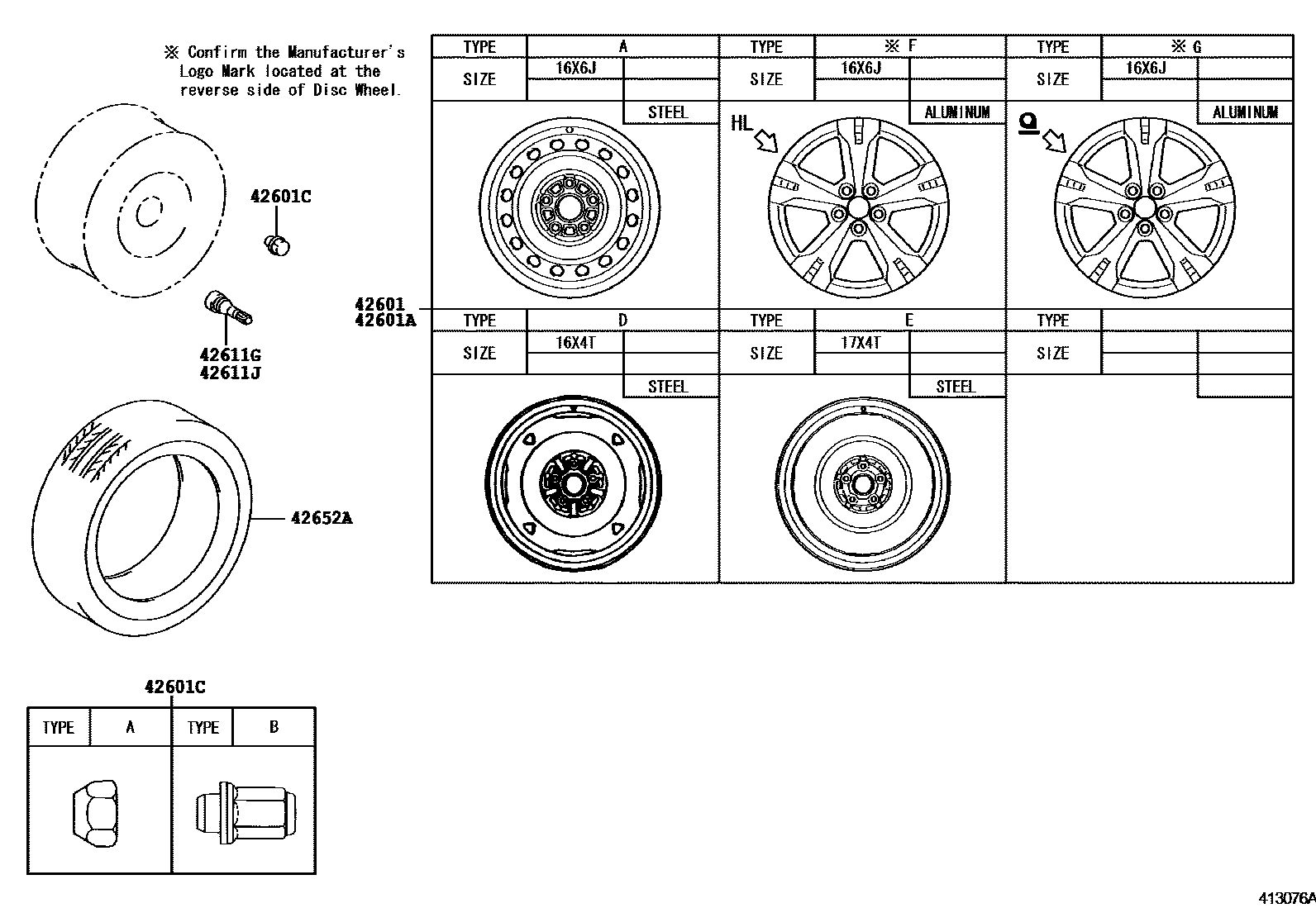

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main4261A-52010×4supersedes 42611-52670iNLP11#,NSP110..N201108

16X6J,#,TYPE F:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-20840iNLP110,NSP110200901-201004

16X4T,TYPE D:REFER ILLUST.

sub42611-20841

main42611-20A50iNLP110,NSP110201004

16X4T,TYPE D:REFER ILLUST.

main42611-21150iNLP115200902-201004

17X4T,SPARE TIRE-T125/70D17,TYPE E:REFER ILLUST.

main42611-21290iNLP115201004-201405

17X4T,SPARE TIRE-T125/70D17,TYPE E:REFER ILLUST.

sub42611-21291

42601CNUT, HUB (FOR AXLE)

main90942-01033×20supersedes 90942-01007iNLP11#,NSP110..N200901-201604

TYPE B:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNLP110,NSP110200901

42652ATIRE (FOR SPARE)

main4265A-53010iNLP115..LHD200902-201009

T125/70D17 *Y/H,LITHUANIA SPEC&SPARE TIRE-TEMPORARY(T125/70D17)

sub4265A-53011

6 parts on this diagram · 2 diagrams in section
