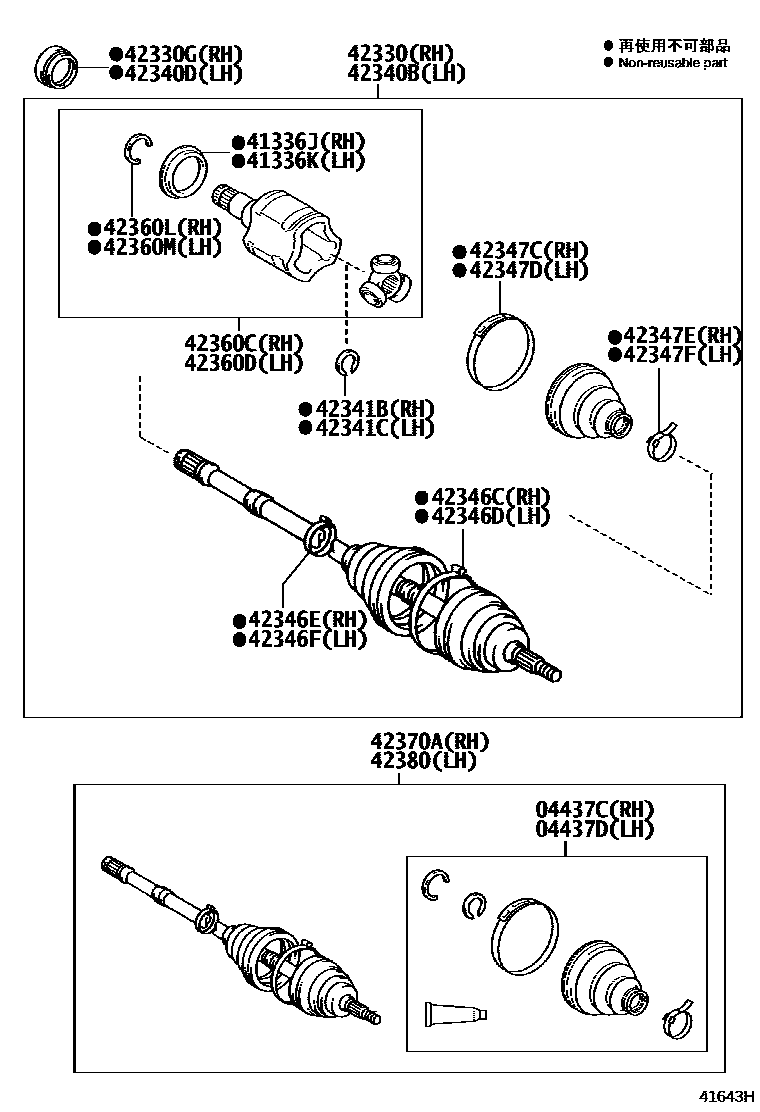

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04437CBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH

main04439-52050iNLP115200902-201306

main04439-52051iNLP115201306-201405

sub04439-52052

04437DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH

main04439-52050iNLP115200902-201306

main04439-52051iNLP115201306-201405

sub04439-52052

41336JCOVER, REAR DRIVE SHAFT DUST, RH

main41336-28050iNLP115200902-201405

41336KCOVER, REAR DRIVE SHAFT DUST, LH

main41336-28050iNLP115200902-201405

42330SHAFT ASSY, REAR DRIVE, RH

main42340-52020iNLP115200902-201305

main42340-52021iNLP115201306-201405

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-37004iNLP115200902-201405

sub90311-37007

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-52020iNLP115200902-201305

main42340-52021iNLP115201306-201405

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-37004iNLP115200902-201405

sub90311-37007

42341BRING, SNAP (FOR REAR DRIVE SHAFT RH)

main43425-48040iNLP115201306-201405

main90520-21020iNLP115200902-201305

42341CRING, SNAP (FOR REAR DRIVE SHAFT LH)

main43425-48040iNLP115201306-201405

main90520-21020iNLP115200902-201305

42346CCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-52190iNLP115200902-201405

42346DCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)

main42345-52190iNLP115200902-201405

42346ECLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-52200iNLP115200902-201405

42346FCLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)

main42345-52200iNLP115200902-201405

42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-12120iNLP115200902-201405

ID=74.3

42347DCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)

main42345-12120iNLP115200902-201405

ID=74.3

42347ECLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-12130iNLP115200902-201405

42347FCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH

main42345-12130iNLP115200902-201405

42360CJOINT ASSY, REAR DRIVE SHAFT INBOARD, RH

main42360-52010iNLP115200902-201405

42360DJOINT ASSY, REAR DRIVE SHAFT INBOARD, LH

main42360-52010iNLP115200902-201405

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90520-19018iNLP115200902-201405

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90520-19018iNLP115200902-201405

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-59135iNLP115200902-201306

main42370-59136iNLP115201306-201405

sub42370-59138

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42370-59135iNLP115200902-201306

main42370-59136iNLP115201306-201405

sub42370-59138

24 parts on this diagram · 3 diagrams in section
