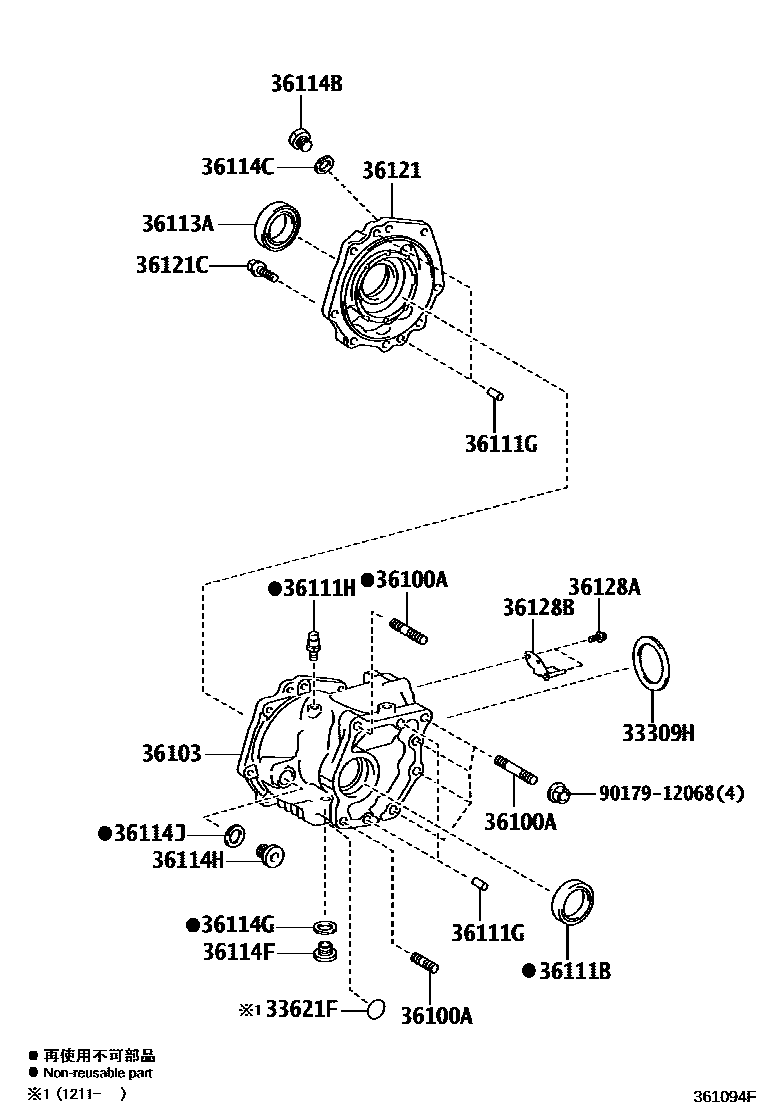

TRANSFER CASE & EXTENSION HOUSING
33309HWASHER, TRANSFER OUTPUT SHAFT
T=1.02,MARK 01
T=1.04,MARK 02
T=1.06,MARK 03
T=1.08,MARK 04
T=1.10,MARK 05
T=1.12,MARK 06
T=1.14,MARK 07
T=1.16,MARK 08
T=1.18,MARK 09
T=1.20,MARK 10
T=1.22,MARK 11
T=1.24,MARK 12
T=1.26,MARK 13
T=1.28,MARK 14
T=1.30,MARK 15
T=1.32,MARK 16
T=1.34,MARK 17
T=1.36,MARK 18
T=1.38,MARK 19
T=1.40,MARK 20
T=1.42,MARK 21
T=1.44,MARK 22
T=1.46,MARK 23
T=1.48,MARK 24
T=1.50,MARK 25
T=1.52,MARK 26
T=1.54,MARK 27
T=1.56,MARK 28
33621FLABEL, TRANSAXLE OIL INFORMATION
sub33621-48020
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=22 & 22,L=69
S=19 & 19,L=47
S=30 & 22,L=64
36103CASE SUB-ASSY, TRANSFER
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36113ASEAL, OIL (FOR TRANSFER CASE RH)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36114JGASKET, NO.2 (FOR TRANSFER CASE)
36121COVER, TRANSFER CASE, NO.1
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
36128ABOLT (FOR BREATHER OIL DEFLECTOR)
36128BDEFLECTOR, BREATHER OIL
9017912068
main90179-12068
19 parts on this diagram · 1 diagram in section
