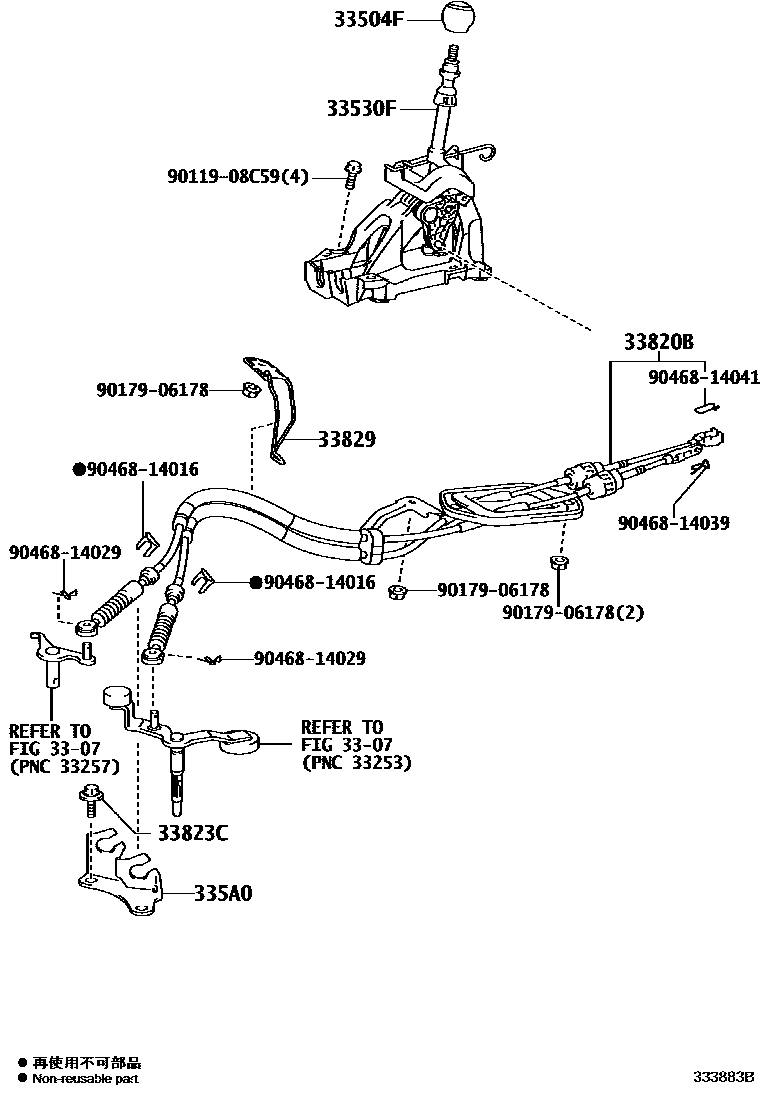

SHIFT LEVER & RETAINER

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12320-B1iNLP11#,NSP110..R200901-201008

DK.GRAY,TRIM1#

sub33504-33100

main33504-12330-B1iNLP11#,NSP110..N200901-201008

DK.GRAY,TRIM1#

main33504-52290-C0iNLP11#,NSP110..R201008-201604

BLACK,TRIM1#

main33504-52300-C0iNLP11#,NSP110..N201008-201604

BLACK,TRIM1#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-52260iNLP11#,NSP110200901

335A0BRACKET ASSY, CONTROL CABLE

main335A0-52010iNSP110200901

main335A0-52020iNLP11#200901-201405

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-52650iNSP110200901

main33820-52660iNLP110200901-201405

main33820-52670iNLP115200902-201405

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08C60×3iNLP11#,NSP110200901

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-52170iNLP11#,NSP110200901

9011908C59

main90119-08C59

9017906178

main90179-06178

9046814016

main90468-14016

9046814029

main90468-14029

9046814039

main90468-14039

9046814041

main90468-14041

13 parts on this diagram · 1 diagram in section
