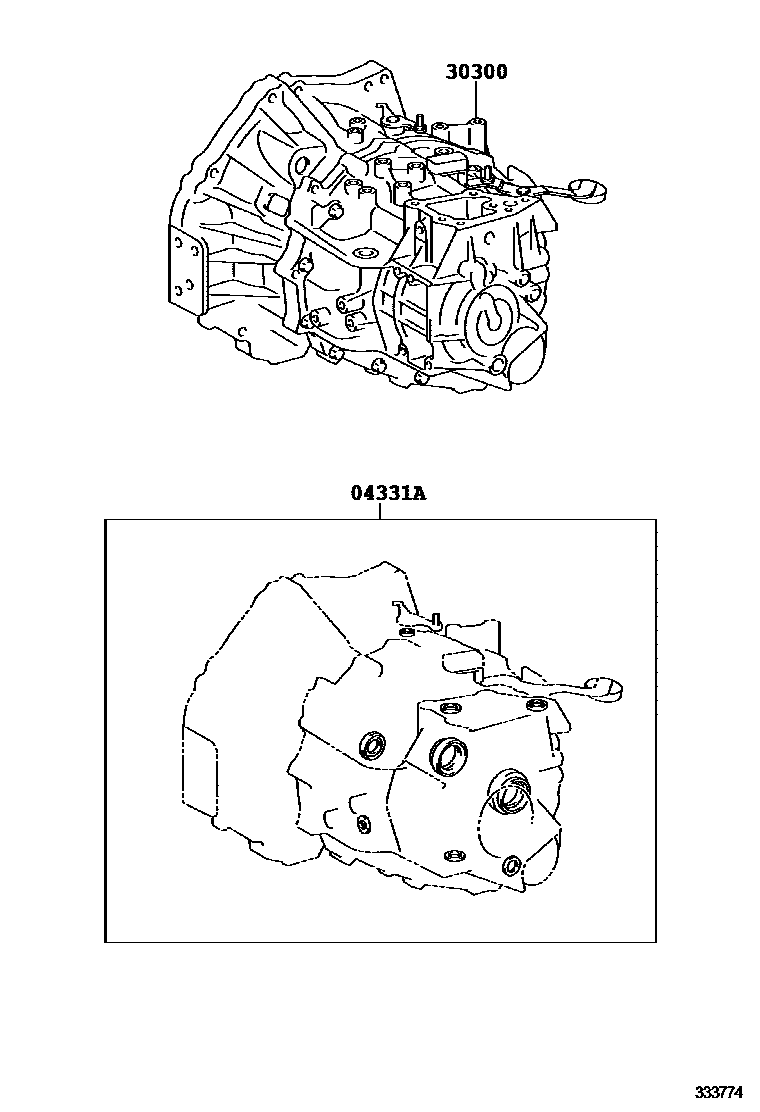

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1EC63,EC65,EC65F 0002 1

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-20250iNLP110200901-201211

sub04331-20280

main04331-20252iNLP110201211-201405

sub04331-20270

main04331-52580iNLP115200902-201210

sub04331-52581

main04331-52581iNLP115201210-201405

sub04331-52582

main04331-52590iNSP110200901-201211

sub04331-52592

main04331-52592iNSP110201211

sub04331-52593

30300TRANSAXLE ASSY, MANUAL

main30300-52610iNLP115200902-201008

EC65F

sub30300-52611

main30300-52611iNLP115201008-201405

EC65F

sub30300-52570

main30300-52670iNSP110..LHD200901-201004

EC63,WITH(STOP & START SYSTEM)

sub30300-52671

main30300-52670iNSP110..RHD200901-201004

EC63

sub30300-52671

main30300-52671iNSP110..RHD201004-201402

EC63,WITH(STOP & START SYSTEM)

main30300-52671iNSP110..RHD201004-201402

EC63

main30300-52672iNSP110..RHD201402-201405

EC63

main30300-52680iNSP110..LHD200901-201004

EC63

sub30300-52681

main30300-52681iNSP110..LHD201004-201309

EC63

main30300-52682iNSP110..LHD201309-201604

EC63

main30300-52690iNLP110200901-201004

EC65

sub30300-52691

main30300-52691iNLP110201004-201405

EC65

2 parts on this diagram · 2 diagrams in section
