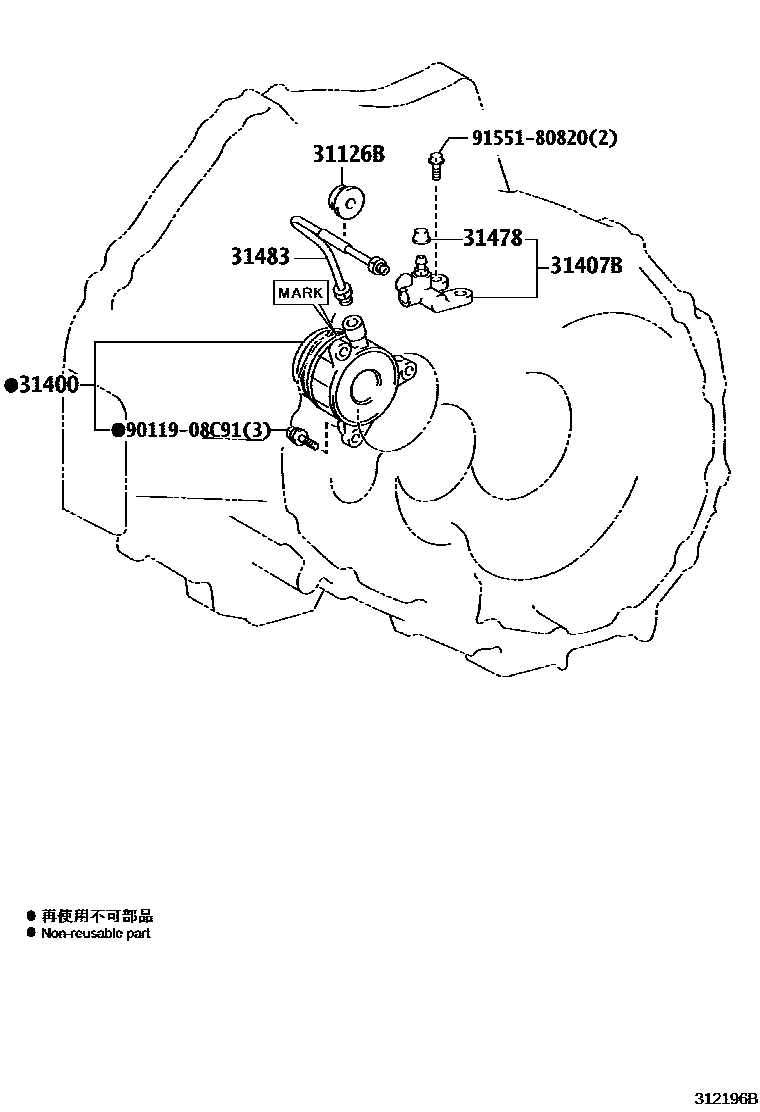

CLUTCH RELEASE CYLINDER

31126BBOOT, CLUTCH TUBE

main31126-20090iNLP11#,NSP110200901-201604

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-19005iNLP110,NSP110200901-201008

MARK=31400-05010

sub31400-09000

main31400-59015iNLP110,NSP110201004-201511

W/O MARK

sub31400-59025

main31400-59025iNSP110201512-201604

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-52010iNLP11#,NSP110200901

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNLP11#,NSP110200901

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-52090iNLP110,NSP110201004-201604

main31482-52110iNLP110,NSP110200901-201008

9011908C91

main90119-08C91

9155180820

main91551-80820

7 parts on this diagram · 1 diagram in section
