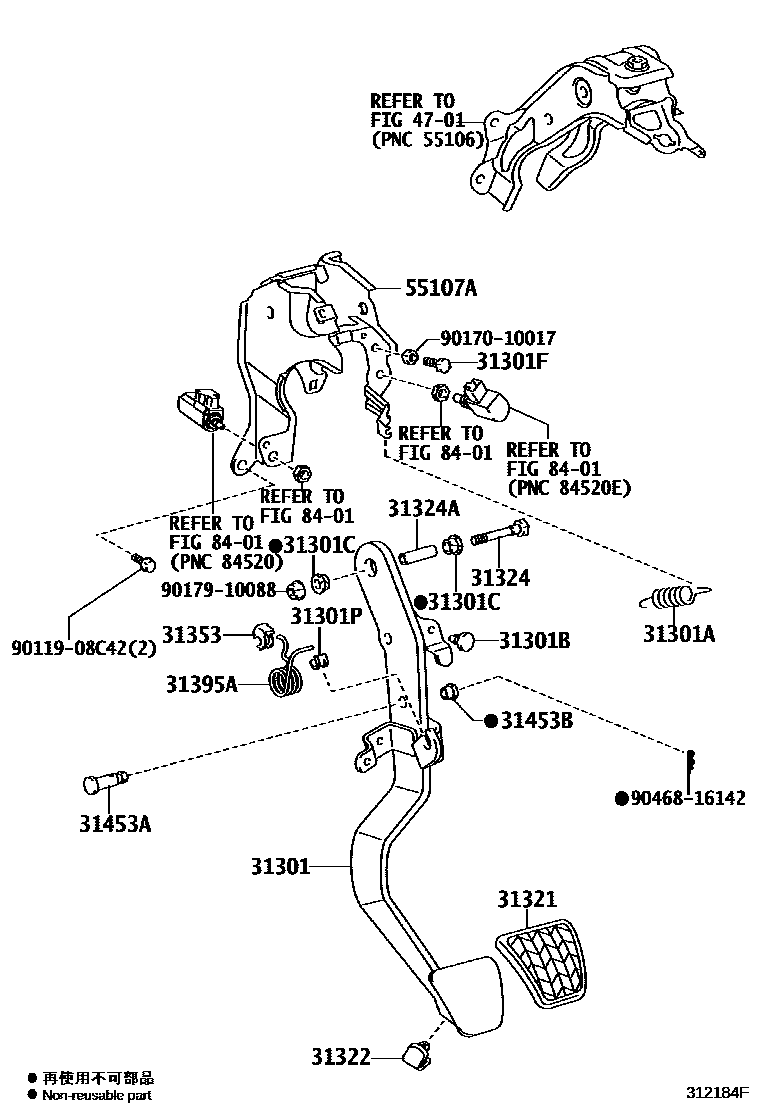

CLUTCH PEDAL & FLEXIBLE HOSE
31301ASPRING(FOR CLUTCH PEDAL)
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31301PBUSH(FOR CLUTCH PEDAL TURNOVER)
31322STOPPER, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31353HOLDER, CLUTCH PEDAL SPRING
31395AHOOK, PEDAL SPRING, NO.1
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=31.5
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
4701
8401
9011908C42
main90119-08C42
9017010017
main90170-10017
9017910088
main90179-10088
9046816142
main90468-16142
21 parts on this diagram · 8 diagrams in section
