CLUTCH & RELEASE FORK

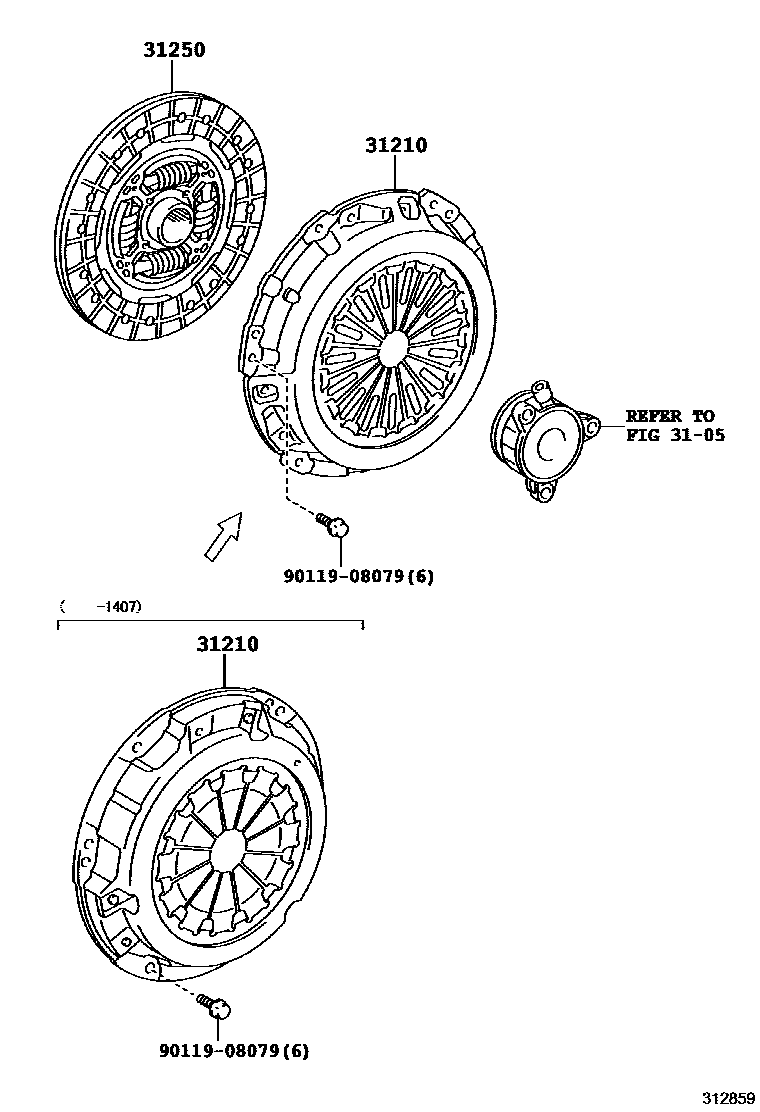

Parts diagram
3105
31210COVER ASSY, CLUTCH
main31210-0W210i200902-201001
sub31210-0W211
main31210-0W211i201002-201405
main31210-52100i200901-201405
main31210-52130i200901-201406
main31210-52170i201406
31250DISC ASSY, CLUTCH
main31250-0W140i200902-201405
main31250-52120i200901-201009
sub31250-52210
main31250-52130i200901-201103
sub31250-52131
main31250-52131i201104-201405
sub31250-52132
main31250-52210i201010-201603
sub31250-52211
9011908079
main90119-08079

4 parts on this diagram · 1 diagram in section
