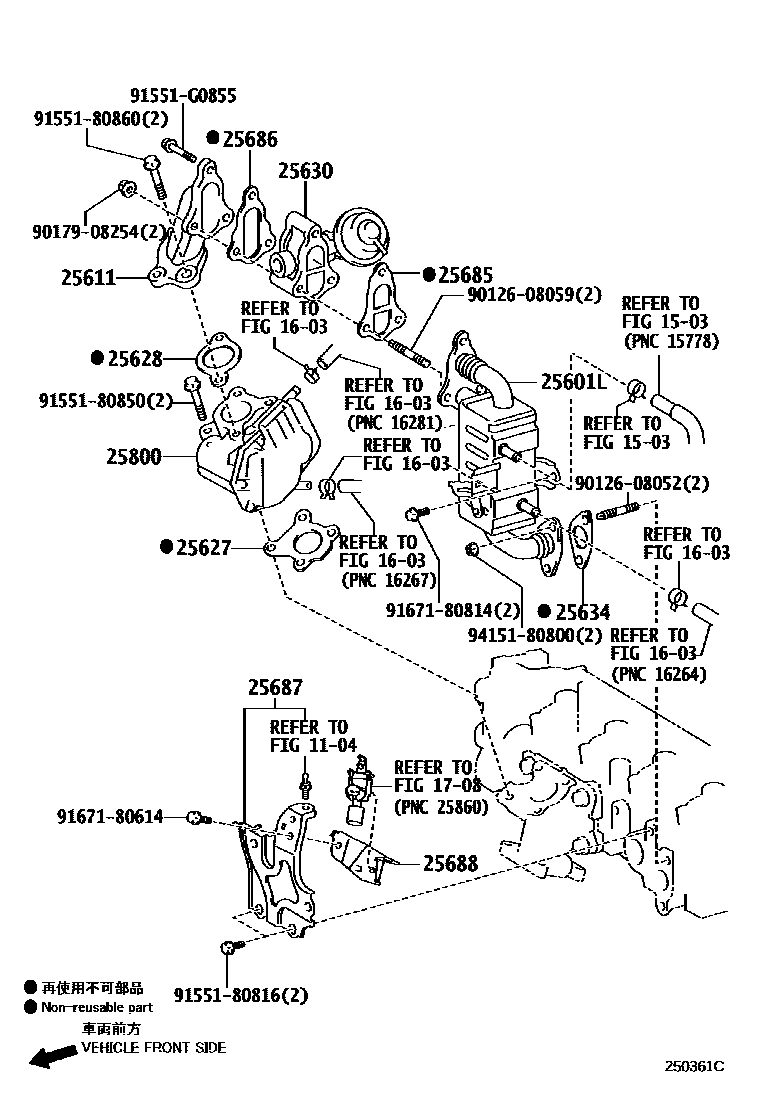

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1104

1503

1603

1708

25601PIPE SUB-ASSY, EGR, NO.1

main25611-47010i1NRFE..NSP110200901-201007

sub25611-47011

main25611-47011i1NRFE..NSP110201007

25601LPIPE SUB-ASSY, EGR W/COOLER

main25601-33060i1NDTV..NLP11#200901-201008

sub25601-33061

main25601-33070i1NDTV..NLP11#201008-201405

sub25601-33071

25611CONNECTOR, EGR PIPE

main25611-33020i1NDTV..NLP11#200901-201405

25627GASKET, EGR VALVE

main25627-33010i1NDTV..NLP11#200901-201405

25628GASKET, EGR INLET

main25628-33040i1NDTV..NLP11#200901-201405

25630VALVE ASSY, EGR, NO.2

main25630-33010i1NDTV..NLP11#200901-201405

25634GASKET, EGR PIPE

main25634-33010i1NDTV..NLP11#200901-201405

main25634-47010i1NRFE..NSP110200901

25685GASKET, EGR COOLER, NO.1

main25685-33010i1NDTV..NLP11#200901-201405

25686GASKET, EGR COOLER, NO.2

main25686-33010i1NDTV..NLP11#200901-201405

25687BRACKET, EGR COOLER, NO.1

main25687-33010i1NDTV..NLP11#200901-201008

main25687-33020i1NDTV..NLP11#201008-201012

main25687-33021i1NDTV..NLP11#201012-201405

25688BRACKET, EGR COOLER, NO.2

main25688-33010i1NDTV..NLP11#200901-201008

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-33010i1NDTV..NLP11#200901-200911

sub25800-33011

main25800-33011i1NDTV..NLP11#200911-201405

9012608052

main90126-08052

9012608059

main90126-08059

9017908254

main90179-08254

9155180816

main91551-80816

9155180850

main91551-80850

9155180860

main91551-80860

91551G0855

main91551-G0855

9167180614

main91671-80614

9167180814

main91671-80814

9415180800

main94151-80800

26 parts on this diagram · 3 diagrams in section
