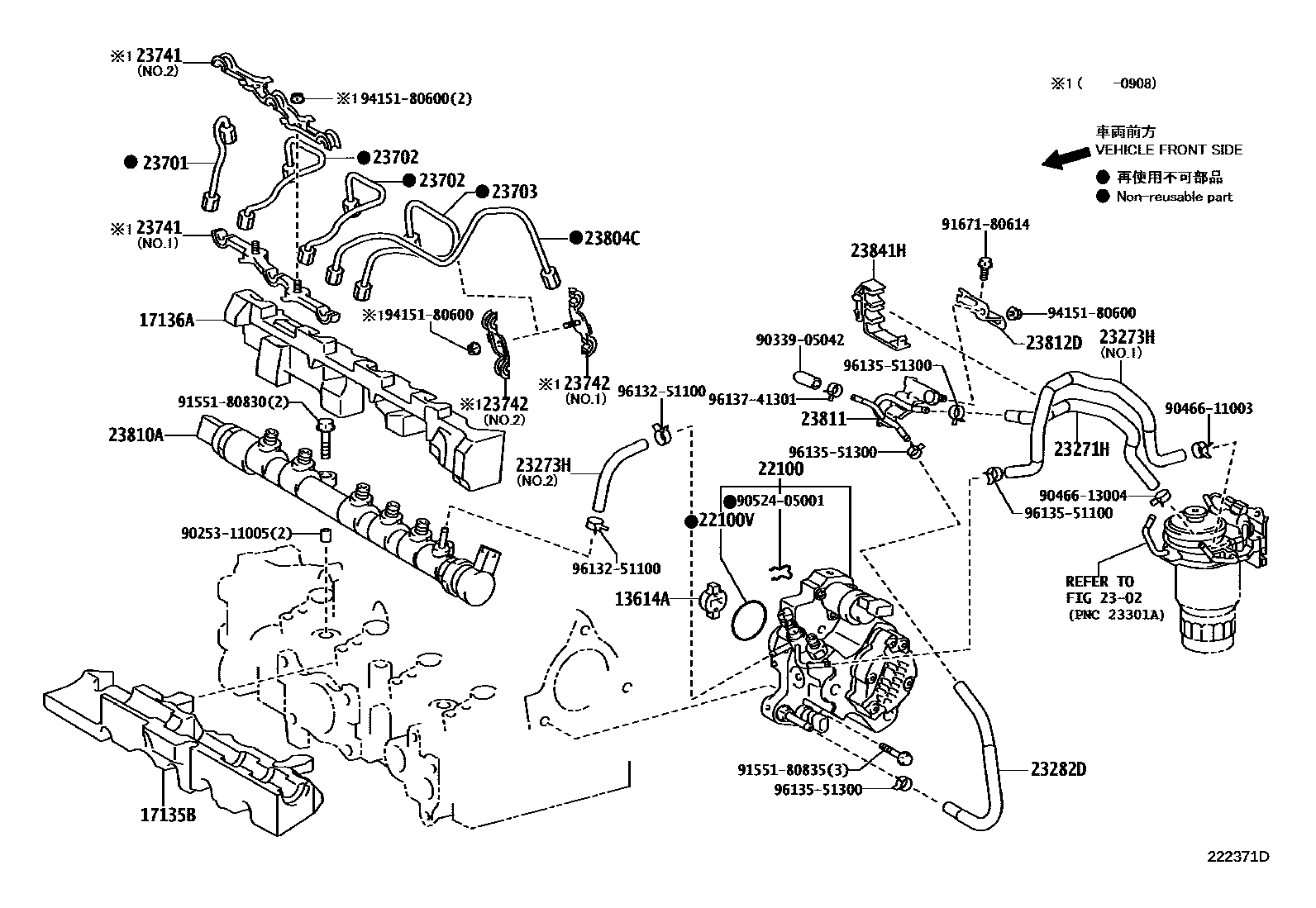

INJECTION PUMP ASSEMBLY
13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1
17136AINSULATOR, INTAKE MANIFOLD, NO.2
22100PUMP ASSY, INJECTION OR SUPPLY
(J)
22100VRING, O(FOR INJECTION PUMP)
2302
23271HHOSE, FUEL, NO.1
23273HHOSE, FUEL, NO.2
NO.2
NO.1
23282DHOSE, FUEL, NO.4
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23741CLAMP, INJECTION PIPE, NO.1
NO.1
NO.2
23742CLAMP, INJECTION PIPE, NO.2
NO.1
NO.2
23804CPIPE SUB-ASSY, FUEL INLET
23810ARAIL ASSY, COMMON
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23812DPIPE, FUEL, NO.2
23841HCLAMP, FUEL HOSE
9025311005
main90253-11005
9033905042
main90339-05042
9046611003
main90466-11003
9046613004
main90466-13004
9052405001
main90524-05001
9155180830
main91551-80830
9155180835
main91551-80835
9167180614
main91671-80614
9415180600
main94151-80600
9613251100
main96132-51100
9613551100
main96135-51100
9613551300
main96135-51300
9613741301
main96137-41301
32 parts on this diagram · 1 diagram in section
