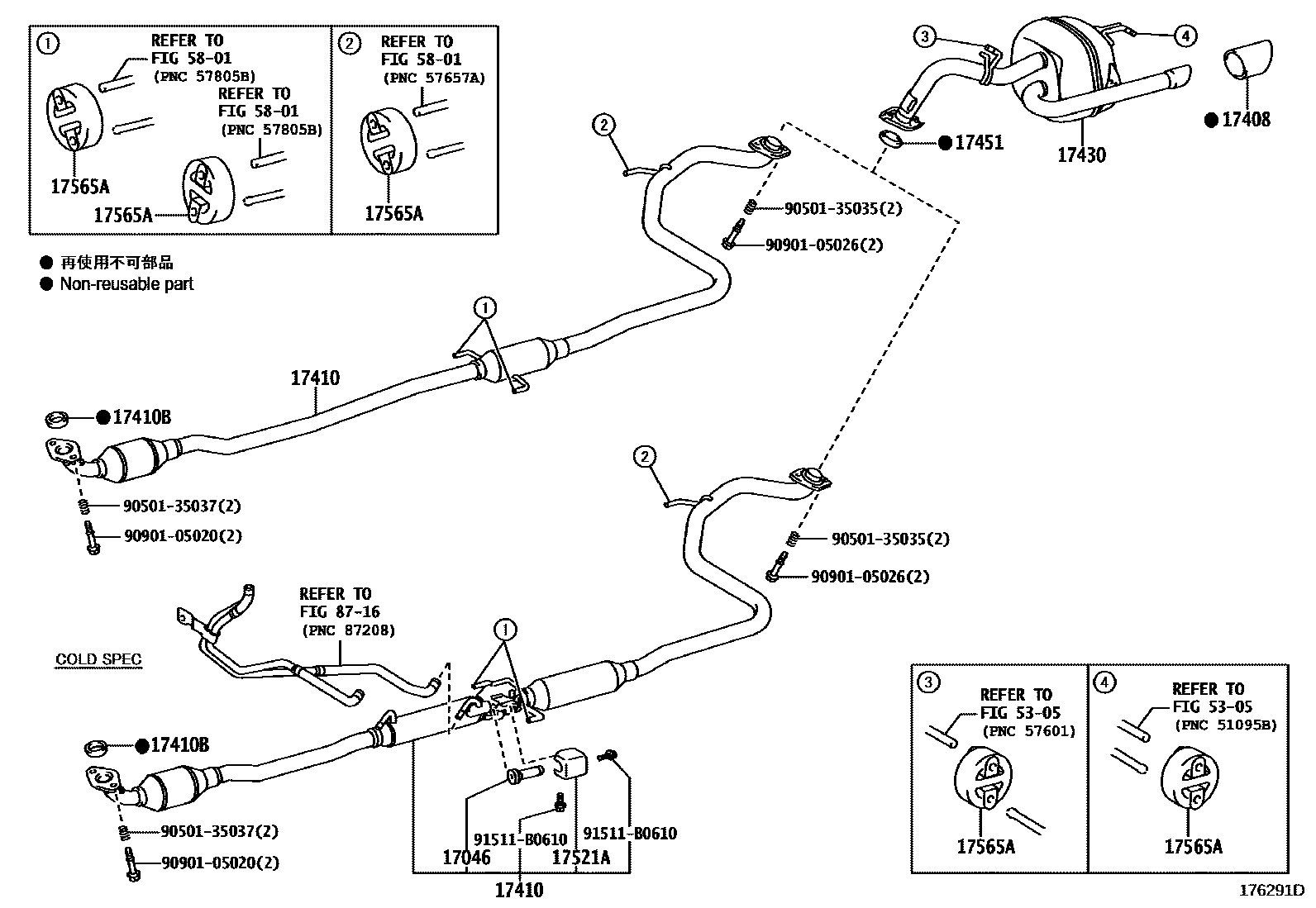

EXHAUST PIPE

0001 1 0002 1 0003 1

17046ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL

main17046-47020

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-21030i1N#..NLP11#,NSP110200901

17410PIPE ASSY, EXHAUST, FRONT

main17410-33160i1NDTV..NLP110200901-201405

main17410-33170i1NDTV..NLP115200902-201405

main17410-47090i1NRFE..NSP110200901-201008

*114=TOYOTA/CD9/Y

main17410-47170i1NRFE..NSP110201008

*114=TOYOTA/CE9/Y

17410BGASKET, EXHAUST PIPE

main17451-21070i1N#..NLP115,NSP110200901

main17451-28040i1NDTV..NLP110200901-201405

sub17451-28041

17430PIPE ASSY, EXHAUST, TAIL

main17430-21750i1NRFE..NSP110200901-201105

sub17430-21751

main17430-21751i1NRFE..NSP110201106

main17430-33130i1NDTV..NLP110200901-201405

main17430-33140i1NDTV..NLP115200902-201405

17451GASKET, EXHAUST PIPE

main17451-23041i1NRFE..NSP110200901-201009

sub17451-23042

main17451-23042i1NRFE..NSP110201010

sub17451-23043

main90917-06082i1NDTV..NLP11#200901-201405

17521APROTECTOR, EXHAUST PIPE, UPPER NO.1

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-40010i1N#..NLP110,NSP110200901-201011

sub17565-47010

main17565-47010i1NDTV..NLP115201012-201405

5305

5801

8716

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

91511B0610

main91511-B0610

16 parts on this diagram · 3 diagrams in section
