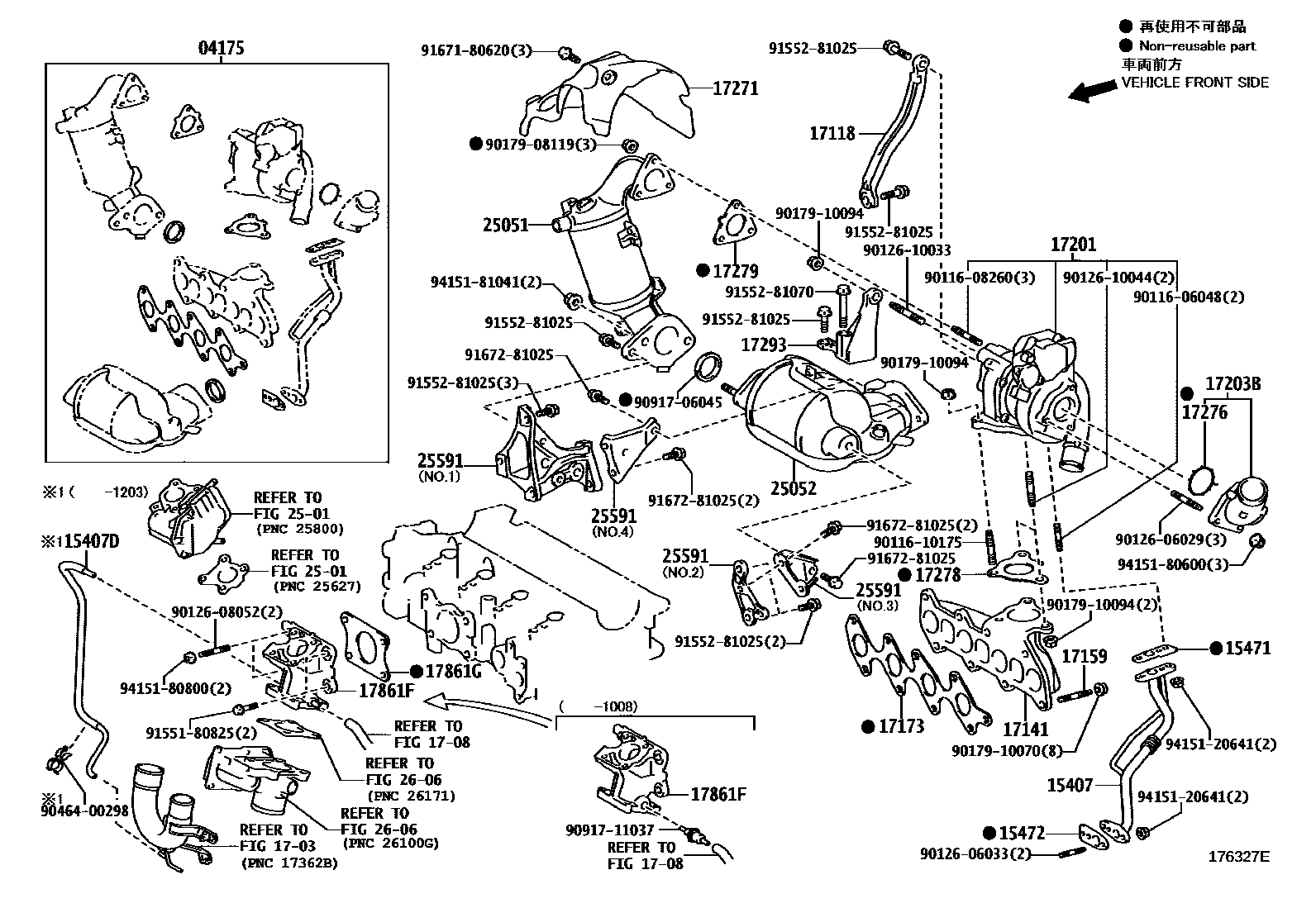

MANIFOLD

0001 1 0002 1 0003 1EUROPE STEP4 0004 1

04175GASKET KIT, TURBOCHARGER

main04175-33070i1NDTV..NLP110200901-201405

sub04175-33071

main04175-33080i1NDTV..NLP115200902-201405

sub04175-33081

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-33020i1NDTV..NLP11#200901-201112

sub15407-33021

main15407-33021i1NDTV..NLP11#201112-201405

15407DHOSE, OIL, NO.1

main12109-33020i1NDTV..NLP11#200901-201203

15471GASKET, TURBO OIL INLET

main15471-33010i1NDTV..NLP11#200901-201405

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-33020i1NDTV..NLP11#200901-201405

1703

1708

17118STAY, MANIFOLD

main17118-33040i1NDTV..NLP11#200901-201405

main17118-47010i1NRFE..NSP110200901

sub17118-47011

17141MANIFOLD, EXHAUST

main17141-33050i1NDTV..NLP11#200901-201405

sub17141-33051

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-10033i1NDTV..NLP11#200901-201405

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-33030i1NDTV..NLP11#200901-201405

sub17173-33031

main17173-47020i1NRFE..NSP110200901-201009

sub17173-47021

main17173-47021i1NRFE..NSP110201009

17201TURBOCHARGER SUB-ASSY

main17201-0N041i1NDTV..NLP11#200901-201002

sub17201-0N042

main17201-0N042i1NDTV..NLP11#201002-201405

17203BELBOW SUB-ASSY, COMPRESSOR INLET

main17203-33010i1NDTV..NLP11#200901-201405

17271INSULATOR, TURBO, NO.1

main17271-33090i1NDTV..NLP11#200901-201405

17276GASKET, COMPRESSOR INLET

main17276-33010i1NDTV..NLP11#200901-201405

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-33010i1NDTV..NLP11#200901-201405

17279GASKET, TURBINE OUTLET ELBOW

main17279-27020i1NDTV..NLP11#200901-201405

17293STAY, TURBOCHARGER

main17293-33010i1NDTV..NLP11#200901-201405

17861FCONNECTOR, INTAKE AIR

main17861-33040i1NDTV..NLP11#200901-201008

main17861-33060i1NDTV..NLP11#201008-201203

main17861-33080i1NDTV..NLP11#201203-201405

17861GGASKET, INTAKE AIR CONNECTOR

main26171-33050i1NDTV..NLP11#200901-201405

2501

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-33090i1NDTV..NLP11#200901-201405

*114=*407

main25051-47010i1NRFE..NSP110200901-201008

*114=TOYOTA/47010/Y

main25051-47040i1NRFE..NSP110201008

*114=TOYOTA/47040/Y

25052CONVERTER SUB-ASSY, EXHAUST MANIFOLD, NO.2

main25052-33020i1NDTV..NLP110200901-201008

*114=TOYOTA/*208/Y

main25052-33030i1NDTV..NLP115200902-201008

*114=TOYOTA/*209/Y

main25052-33040i1NDTV..NLP110201008-201405

*114=*257

main25052-33050i1NDTV..NLP115201008-201405

*114=*256

25591BRACKET, MANIFOLD SUPPORT

main25591-33050i1NDTV..NLP110200901-201405

NO.1

main25591-33060i1NDTV..NLP115200902-201405

NO.1

main25592-33020i1NDTV..NLP11#200901-201405

NO.2

main25593-33010i1NDTV..NLP11#200901-201405

NO.3

main25594-33010i1NDTV..NLP110200901-201405

NO.4

main25594-33020i1NDTV..NLP115200902-201405

NO.4

2606

9011606048

main90116-06048

9011608260

main90116-08260

9011610175

main90116-10175

9012606029

main90126-06029

9012606033

main90126-06033

9012608052

main90126-08052

9012610033

main90126-10033

9012610044

main90126-10044

9017908119

main90179-08119

9017910070

main90179-10070

9017910094

main90179-10094

9046400298

main90464-00298

9091706045

main90917-06045

9091711037

main90917-11037

9155180825

main91551-80825

9155281025

main91552-81025

9155281070

main91552-81070

9167180620

main91671-80620

9167281025

main91672-81025

9415120641

main94151-20641

9415180600

main94151-80600

9415180800

main94151-80800

9415181041

main94151-81041

48 parts on this diagram · 4 diagrams in section
