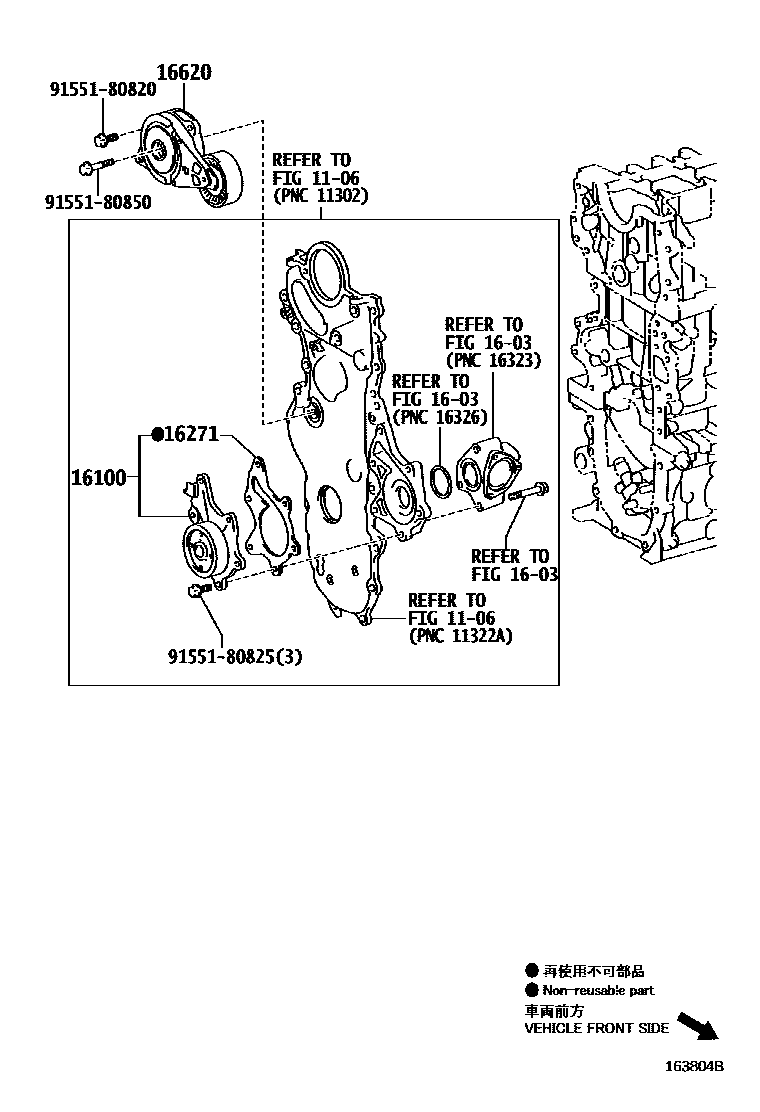

WATER PUMP

0001 1 0002 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-39525i1NDTV..NLP11#¥9,000200901-201405

sub16100-39526¥9,000

main16100-80004i1NRFE..NSP110¥8,700200901-201308

sub16100-80010¥7,900

sub91552-81050¥120

main16100-80010i1NRFE..NSP110¥7,900201308

sub16100-80019¥7,900

16271GASKET, WATER PUMP

main16271-33030i1NDTV..NLP11#¥650200901-201405

main16271-47031i1NRFE..NSP110¥490200901

16620TENSIONER ASSY, V-RIBBED BELT

main16620-33020i1NDTV..NLP11#200901-201303

sub16620-33021

main16620-33021i1NDTV..NLP11#201303-201405

sub16620-33022

main16620-47010i1NRFE..NSP110¥16,100200901

9155180820

main91551-80820¥80

9155180825

main91551-80825¥80

9155180850

main91551-80850¥100

8 parts on this diagram · 2 diagrams in section
