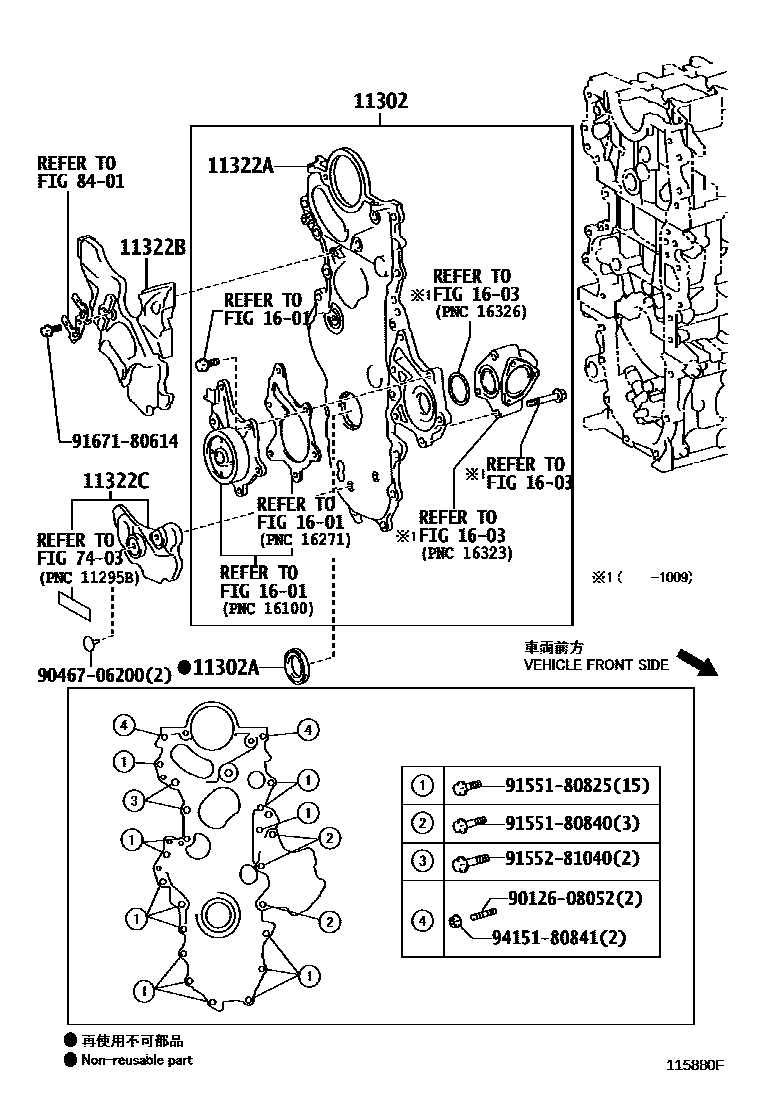

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-33010i1NDTV..NLP11#200901-201009

sub11310-33040

sub13559-33021

main11310-33011i1NDTV..NLP11#201009-201405

sub11310-33012

main11310-47010i1NRFE..NSP110200901-200907

sub11310-47011

main11310-47011i1NRFE..NSP110200907-201308

sub11310-47012

sub91552-81050

sub91671-10825

main11310-47012i1NRFE..NSP110201308-201407

sub11310-47013

main11310-47013i1NRFE..NSP110201407

sub11310-47014

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-25021i1NRFE..NSP110201104-201303

sub90311-25032

main90311-25031i1NRFE..NSP110200901-201104

main90311-25032i1NRFE..NSP110201303

main90311-40033i1NDTV..NLP11#200901-201301

sub90311-40040

main90311-40040i1NDTV..NLP11#201301-201405

11322ACOVER, TIMING BELT, NO.1

main11321-33020i1NDTV..NLP11#200901-201405

sub11321-33021

sub13559-33021

11322BCOVER, TIMING BELT, NO.2

main11322-33020i1NDTV..NLP11#200901-201405

11322CCOVER, TIMING BELT, NO.3

main11323-33010i1NDTV..NLP11#200901-201405

1601

1603

7403

8401

9012608052

main90126-08052

9046706200

main90467-06200

9155180825

main91551-80825

9155180840

main91551-80840

9155281040

main91552-81040

9167180614

main91671-80614

9415180841

main94151-80841

16 parts on this diagram · 2 diagrams in section
