CYLINDER BLOCK

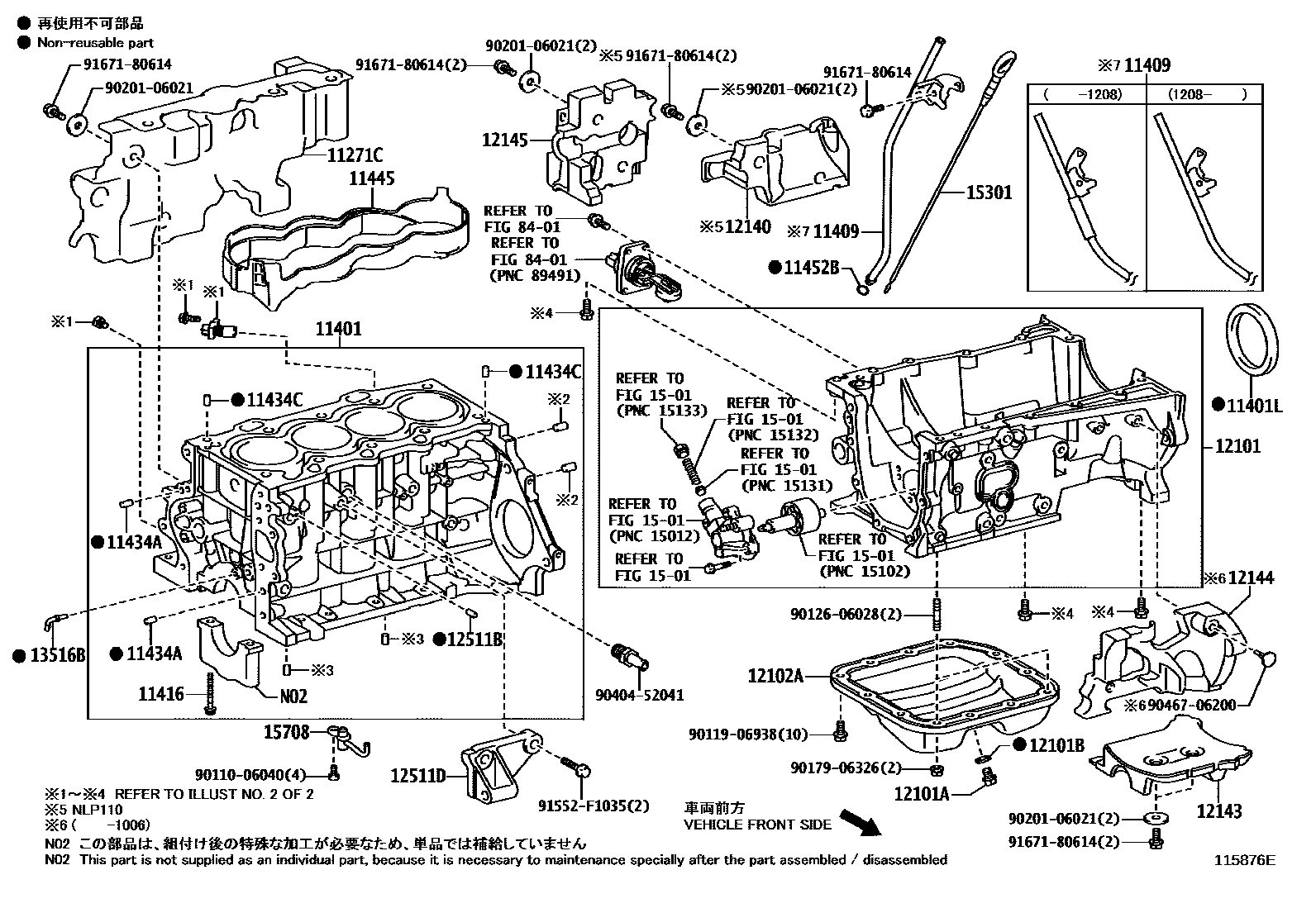

Parts diagram

11271CCOVER, CYLIVDER BLOCK SIDE

main11271-33050i200901-201002

main11271-33051i201002-201405

11401BLOCK SUB-ASSY, CYLINDER

main11410-39085i200901-201212

main11410-39155i201212-201405

main11410-49015i200901-200909

main11410-49016i200909-201006

main11410-49017i201006-201307

main11410-49018i201307-201309

main11410-49045i201309

11401LSEAL, ENGINE REAR OIL

main90311-75017i200901-201301

main90311-75020i201301-201405

main90311-99012supersedes 90311-78005i200901-201405

11409GUIDE SUB-ASSY, OIL LEVEL GAGE

main11409-33010i200901-201208

main11409-33011i201208-201405

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154×10i200901-201405

main90910-02175×10i200901

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i200901

L=12,OD=4.0

main90250-08120×2i200901-201405

L=18,OD=8

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×2i200901-201405

L=18,OD=8

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-33010i200901-201405

main11445-47010i200901

11452GUIDE, OIL LEVEL GAGE

main11409-47010i200901-201005

main11409-47011i201005-201207

main11409-47012i201207

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i200901-201405

main96741-19010i200901

12101PAN SUB-ASSY, OIL

main12101-33040i200901-201405

main12101-47061i200901-201102

main12101-47120i201102-201203

main12101-47121i201203

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i200901-201405

main90341-12032i200901

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i200901

12102APAN SUB-ASSY, OIL, NO.2

main12102-33010i200901-201405

12140COVER, OIL PAN

main12615-33010i200901-201004

main12615-33011i201004-201405

12143COVER, OIL PAN

main12143-33030i200901-201004

main12143-33031i201004-201405

12144SILENCER, OIL PAN COVER

main12144-33010i200901-201006

12145SILENCER, OIL PAN COVER, NO.2

main12145-33010i200901-201003

main12145-33011i201003-201405

12511BPIN, RING(FOR ALTERNATOR BRACKET)

main90250-04097i200901-201405

12511DBRACKET, ALTERNATOR

main12511-33020i200901-201110

main12511-33021i201110-201405

13516BJET, OIL

main13516-33030i200901-201405

main13516-40010i200901

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-33050i200901-201405

main15301-47020i200901-201005

main15301-47050i201005

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-33020×4i200901-201405

main15708-47010×4i200901-200902

main15708-47030×4i200902-201104

main15708-47031×4i201307-201502

main15708-47040×4i201104-201203

main15708-47080×4i201503-201604

8401

9011006040

main90110-06040

9011906938

main90119-06938

9012606028

main90126-06028

9017906326

main90179-06326

9020106021

main90201-06021

9040452041

main90404-52041

9046706200

main90467-06200

91552F1035

main91552-F1035

9167180614

main91671-80614

34 parts on this diagram · 4 diagrams in section
