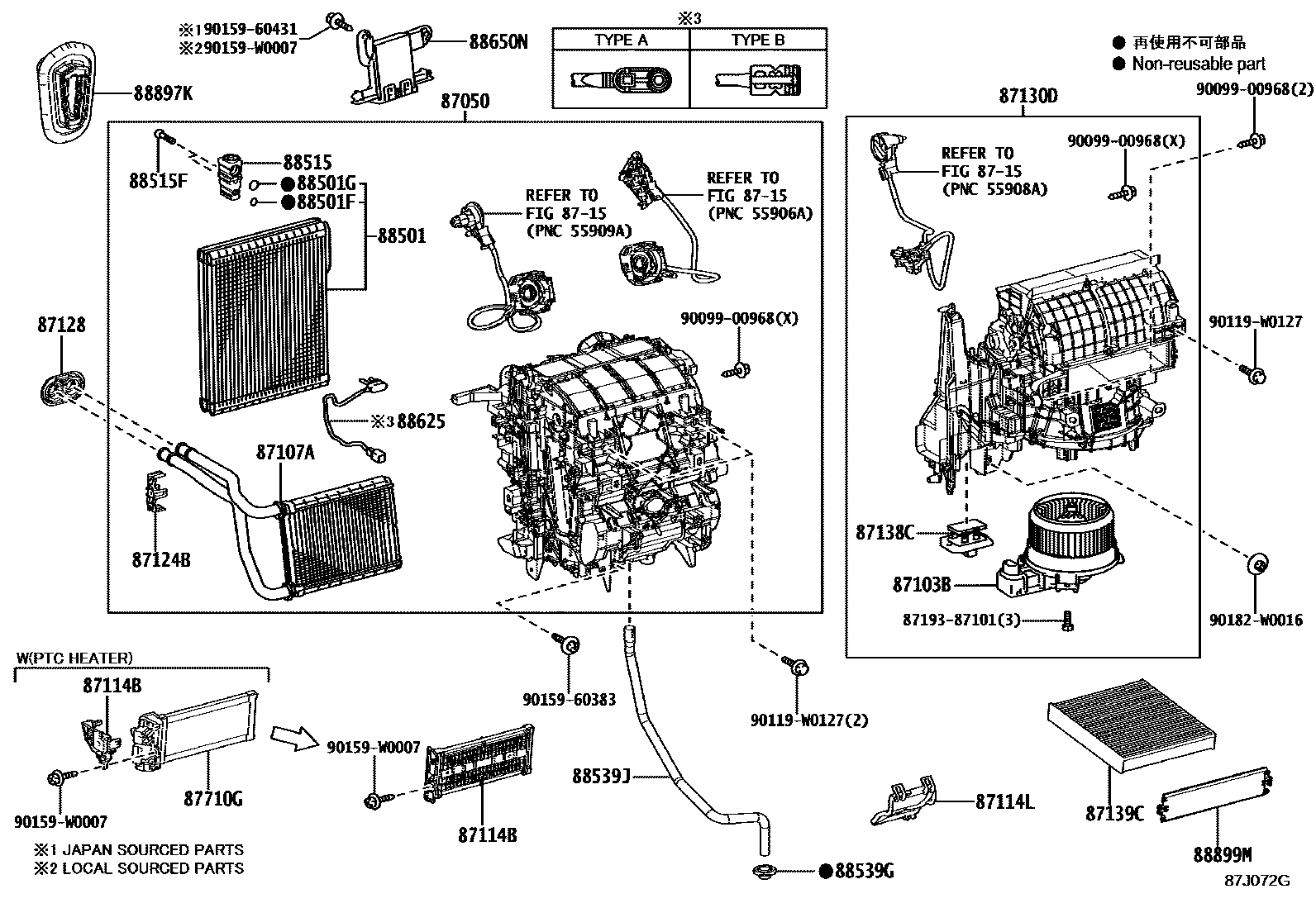

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
AIR CONDITIONER-AUTO
EGYPT SPEC&COLD AREA SPEC-WITH(EUROPE A RANK)
COLD AREA SPEC-WITH(EUROPE A RANK)
NEW CALEDONIA, TAHITI SPEC
WITH(STOP & START SYSTEM)
NEW CALEDONIA, TAHITI SPEC
AIR CONDITIONER-AUTO
UKRAINE SPEC&COLD AREA SPEC-WITH(EUROPE A RANK)&AIR CONDITIONER-AUTO
AIR CONDITIONER-AUTO
AIR CONDITIONER-AUTO (DUAL&COLD STORAGE EVAPORATOR TYPE)
NEW CALEDONIA, TAHITI SPEC
TUNISIA SPEC
COLD AREA SPEC-WITH(EUROPE A RANK)
TUNISIA SPEC&COLD AREA SPEC-WITH(EUROPE A RANK)
COLD AREA SPEC-WITH(EUROPE A RANK)
UKRAINE SPEC&COLD AREA SPEC-WITH(EUROPE A RANK)
COLD AREA SPEC-WITH(EUROPE A RANK)
UKRAINE SPEC&COLD AREA SPEC-WITH(EUROPE A RANK)
WITH(STOP & START SYSTEM)&COLD AREA SPEC-WITH(EUROPE A RANK)
87103BMOTOR SUB-ASSY, BLOWER W/FAN
AIR CONDITIONER-AUTO
AIR CONDITIONER-AUTO
AIR CONDITIONER-AUTO
AIR CONDITIONER-AUTO
AIR CONDITIONER-AUTO
COLD AREA SPEC-WITH(EUROPE S RANK)
COLD AREA SPEC-WITH(EUROPE A RANK)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
COLD AREA SPEC-WITH(EUROPE A RANK)&AIR CONDITIONER-AUTO (DUAL&COLD STORAGE EVAPORATOR TYPE)
87114LCOVER, HEATER, NO.2
87124BCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
AIR CONDITIONER-AUTO
AIR CONDITIONER-AUTO
AIR CONDITIONER-AUTO
COLD AREA SPEC-WITH(EUROPE A RANK)
COLD AREA SPEC-WITH(EUROPE A RANK)
COLD AREA SPEC-WITH(EUROPE S RANK)
87139CFILTER, CLEAN AIR
main87139-58010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007
DEODORANT FILTER
POLLEN FILTER,OE PART
8715
87710GQUICK HEATER ASSY
COLD AREA SPEC-WITH(EUROPE A RANK)&AIR CONDITIONER-AUTO (DUAL&COLD STORAGE EVAPORATOR TYPE)
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
EGYPT SPEC&AIR CONDITIONER- MANUAL
WITH(STOP & START SYSTEM)
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
main90068-14038iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007
ID=13.4,OD=18.2
88515VALVE, COOLER EXPANSION
main88515-0D550iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007
EGYPT SPEC&AIR CONDITIONER- MANUAL
WITH(STOP & START SYSTEM)
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
main88539-K0020iKSP211..LHD..(N,R);MXPH11..(G,R)..CZEP;MXPH11..LHD..G..FRP;MXPA11..LHD..(G,S,V)202007
88625THERMISTOR, COOLER, NO.1
main88620-02210iMXPA11..6F..N;MXPH11..N..CZEP;MXPA11..LHD..CVT..N;MXPH11..RHD..(N,S,V);MXPH11..LHD..(N,R)..FRP202007-202401
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
WITH(STOP & START SYSTEM)&COLD AREA SPEC-WITH(EUROPE A RANK),TYPE C:REFER ILLUST.
WITH(STOP & START SYSTEM)&COLD AREA SPEC-WITH(EUROPE A RANK),TYPE D:REFER ILLUST.
88650NAMPLIFIER ASSY, AIR CONDITIONER
AIR CONDITIONER-AUTO(DUAL MODE CONTROL)
main88650-K0121supersedes 88650-K0121iMXPA11..V;MXPH11..G;MXPH11..R..CZEP;MXPA11..(G,S)..CZEP;MXPA11..LHD..G..FRP202011
COLD AREA SPEC-WITH(EUROPE A RANK)
88897KGROMMET, (FOR COOLER PIPE)
88899MPLATE, COVER(FOR AIR FILTER)
8719387101
main87193-87101
9009900968
main90099-00968
90119W0127
main90119-W0127
9015960383
main90159-60383
9015960431
main90159-60431
90159W0007
main90159-W0007
90182W0016
main90182-W0016
30 parts on this diagram · 6 diagrams in section
