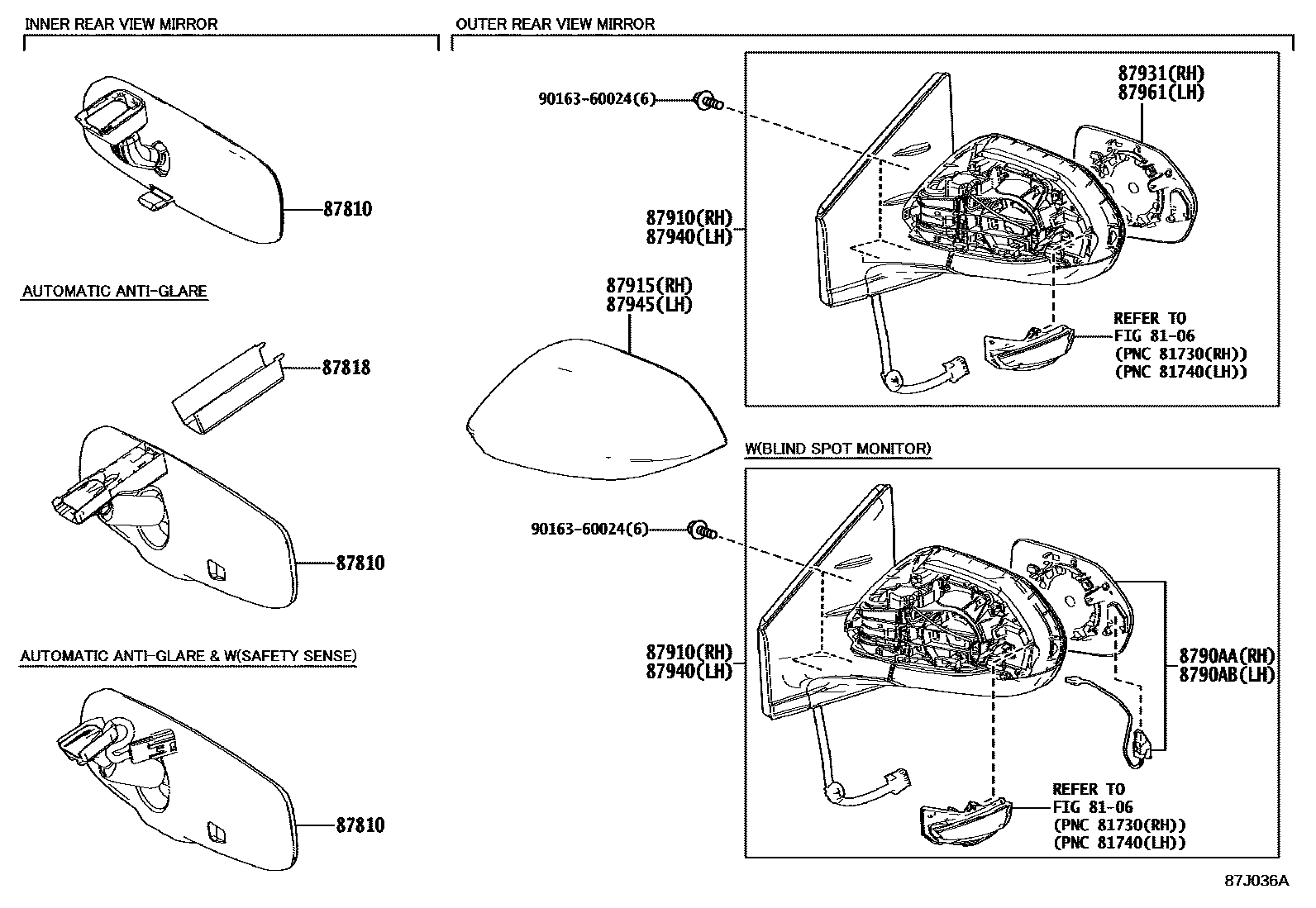

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
ACTIVE SAFETY PACKAGE-WITHOUT
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITHOUT&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87818COVER, INNER RR VIEW MIRROR
ACTIVE SAFETY PACKAGE-WITHOUT&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
8790AAINDICATOR, OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-*273 & *MIH & *BSM&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT)&BLIND SPOT MONITOR-WITH(*BSM)
8790ABINDICATOR, OUTER MIRROR, LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *BSM)&BLIND SPOT MONITOR-WITH(*BSM)
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & *MIH & *BSM&BLIND SPOT MONITOR-WITH(*BSM)
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
87915COVER, OUTER MIRROR, RH
BODY COLOR-TWO-TONES
SUPER WHITE 2,040
WHITE,2ND ,2ST ,2SV
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
main87915-02380-B5iMXPH11..G;MXPA11..LHD..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..6F..S..FRP;MXPA11..RHD..CVT..(N,S);MXPA11..LHD..CVT..S..FRP202007
GRAY ME.,1G3
SILVER ME.,1L0
BLACK MC.,209 ,2KR ,2KV ,2PN ,2PU ,2SW ,2SZ
RED MC.,3T3
CORAL CS.,2SX ,2SY ,2VW ,3U7
EMOTIONAL RED 2,3U5
ORANGE ME.,4R8
main87915-02380-G0iMXPH11..G;MXPA11..LHD..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..6F..S..FRP;MXPA11..RHD..CVT..(N,S);MXPA11..LHD..CVT..S..FRP202007
OXIDE BRONZE ME.,6X1
GRAYISH BLUE,8W2
main87915-02380-J3iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..6F..S..FRP;MXPA11..LHD..G..FRP;MXPA11..RHD..CVT..(N,S);MXPA11..LHD..CVT..S..FRP202007
DK.BLUE M.M.,8W7
JUNIPER BLUE M.M.,8Y8
NO PAINT REQ.,BODY COLOR-TWO-TONES
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
main87940-K0090supersedes 87940-K0020iMXPH11..RHD..G;MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007
NO PAINT REQ.,BLIND SPOT MONITOR-WITH
87945COVER, OUTER MIRROR, LH
BODY COLOR-TWO-TONES
SUPER WHITE 2,040
WHITE,2ND ,2ST ,2SV
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1L0
BLACK MC.,209 ,2KR ,2KV ,2PN ,2PU ,2SW ,2SZ
RED MC.,3T3
CORAL CS.,2SX ,2SY ,2VW ,3U7
EMOTIONAL RED 2,3U5
ORANGE ME.,4R8
OXIDE BRONZE ME.,6X1
GRAYISH BLUE,8W2
DK.BLUE M.M.,8W7
JUNIPER BLUE M.M.,8Y8
NO PAINT REQ.,BODY COLOR-TWO-TONES
87961MIRROR OUTER, LH
9016360024
main90163-60024
12 parts on this diagram · 1 diagram in section
