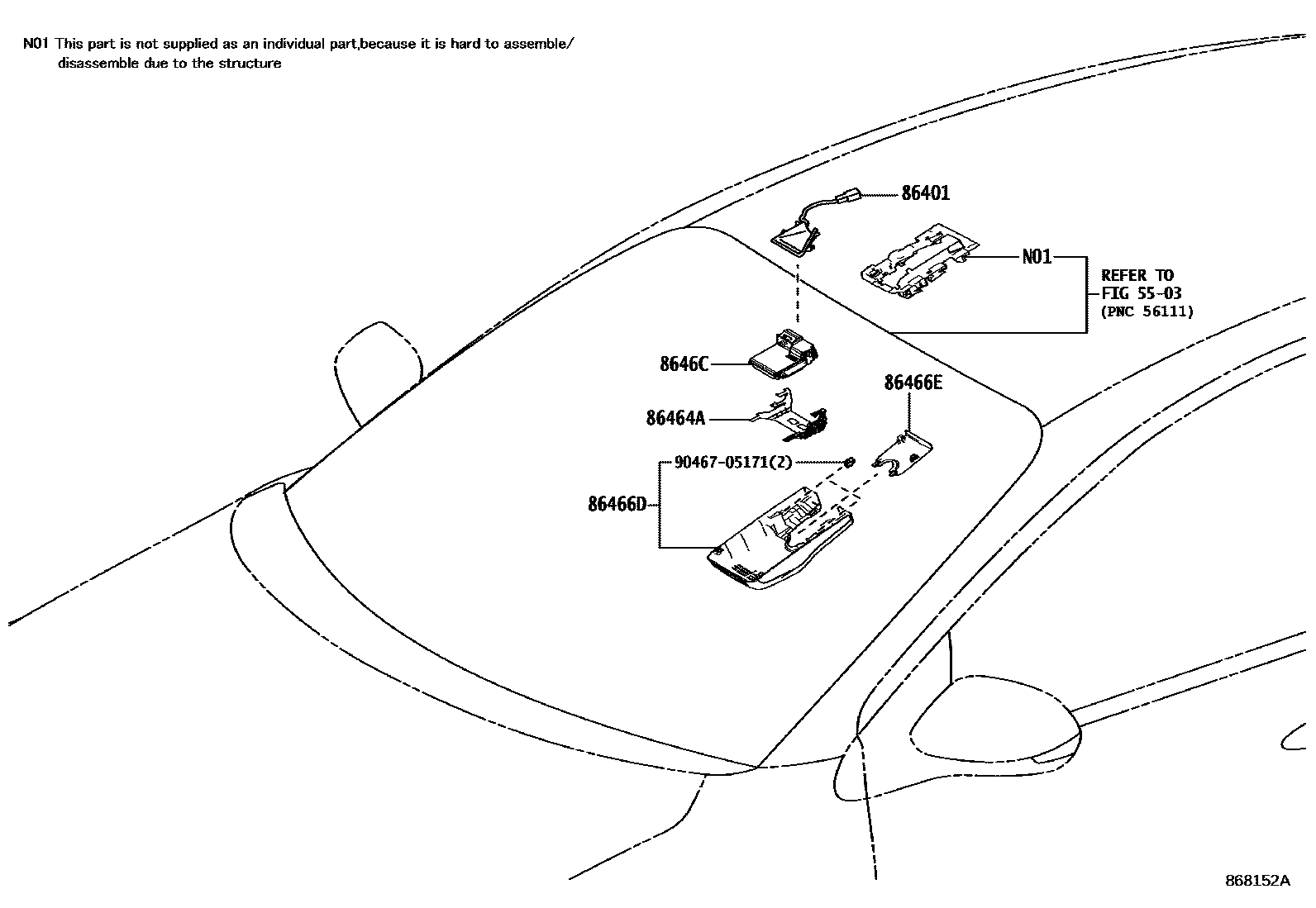

PRE-COLLISION SYSTEM

0001 1 0003 1

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-K0010iKSP211,MXPA11,MXPH11202007-202407

86464ALATCH, FORWARD RECOGNITION

main86464-K0010iKSP211,MXPA11,MXPH11202007-202407

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-0D030iMXPH11..LHD..(N,R,S)..FRP202401

ACTIVE SAFETY PACKAGE-WITHOUT

main86466-K0010iKSP211,MXPA11,MXPH11202007-202407

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-K0020iKSP211,MXPA11,MXPH11202007-202407

main86467-0D030iMXPH1#..N,S,V;MXPH11..R..FRP202401

ACTIVE SAFETY PACKAGE-WITHOUT

8646CCAMERA, FORWARD RECOGNITION

main8646C-0D070iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main8646C-0W040iKSP211,MXPA11,MXPH11202007

*614

main8646C-52250iMXPH1#..N,S,V;MXPH11..R..FRP202401

ACTIVE SAFETY PACKAGE-WITHOUT

9046705171

main90467-05171

7 parts on this diagram · 2 diagrams in section
