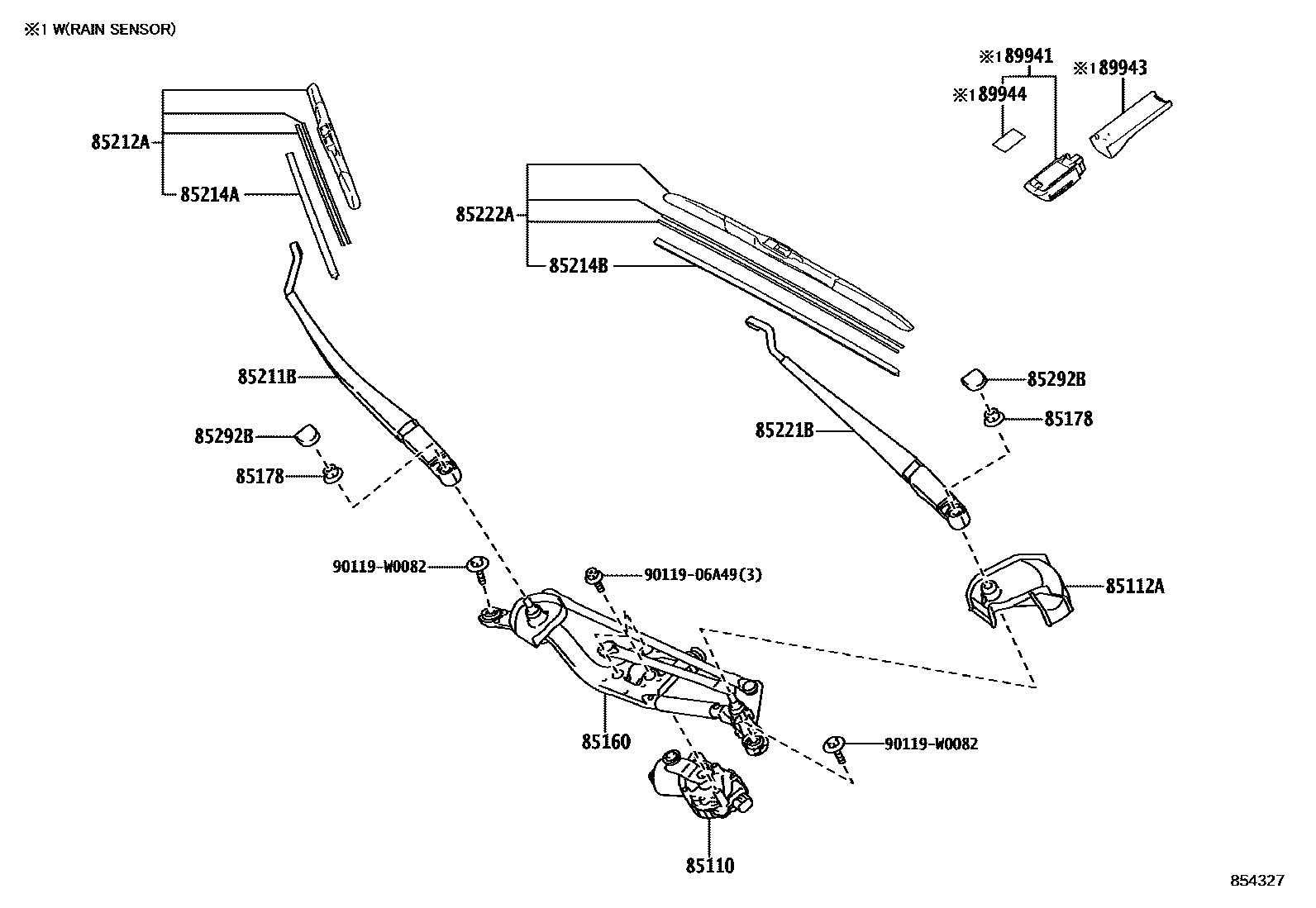

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-K0110iMXPA11..RHD..6F..N202401-202407

main85110-K0120iMXPA11..LHD..N;MXPH11..LHD..R..FRP;MXPH11..LHD..(N,S,V)202007-202401

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-0D010iMXPA11..LHD..N;MXPH11..LHD..R..FRP;MXPH11..LHD..(N,S,V)202007-202401

main85112-0D020iKSP211..RHD..G202007-202105

85160LINK ASSY, WINDSHIELD WIPER

main85150-K0030iMXPA11..LHD..N;MXPH11..LHD..R..FRP;MXPH11..LHD..(N,S,V)202007-202401

main85150-K0040iMXPH1#..RHD..(N,S,V)202401

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

85211BARM, FRONT WIPER, RH

main85211-K0020iKSP211..LHD..G202007-202105

main85211-K0030iMXPH1#..RHD..(N,S,V)202401

85212ABLADE, FR WIPER, RH

main85212-K0020iKSP211..LHD..(N,R);MXPH11..(G,R)..CZEP;MXPH11..LHD..G..FRP;MXPA11..LHD..(G,S,V)202007

main85212-K0030iMXPA11..RHD..6F..N202401-202407

85214ARUBBER, WIPER, RH

main85214-28090iKSP211..LHD..G202007-202105

main85214-30380iMXPA11..RHD..6F..N202401-202407

85214BRUBBER, WIPER, LH

main85214-28090iKSP211..RHD..G202007-202105

main85214-30380iKSP211..LHD..G202007-202105

85221BARM, FRONT WIPER, LH

main85221-K0020iMXPA11..LHD..N202401-202407

main85221-K0030iKSP211..RHD..N;MXPH11..RHD..G;MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

85222ABLADE, FR WIPER, LH

main85222-K0020iKSP211..LHD..(N,R);MXPH11..(G,R)..CZEP;MXPH11..LHD..G..FRP;MXPA11..LHD..(G,S,V)202007

main85222-K0030iMXPA11..RHD..6F..N202401-202407

85292BCAP, FRONT WIPER ARM HEAD

main85292-0F010×2iKSP211..G202007-202105

89941SENSOR, RAIN

main89941-0D040iKSP211,MXPA11,MXPH11..G,N,S,V202007

89943COVER, RAIN SENSOR

main89943-42040iKSP211,MXPA11,MXPH11..G,N,S,V202007

main89943-78020iMXPH11..LHD..N202401

WINDSHIELD GLASS-GREEN(ACOUSTIC)

89944TAPE, RAIN SENSOR

main89944-42020iKSP211,MXPA11,MXPH11..G,N,S,V202007

9011906A49

main90119-06A49

90119W0082

main90119-W0082

16 parts on this diagram · 2 diagrams in section
