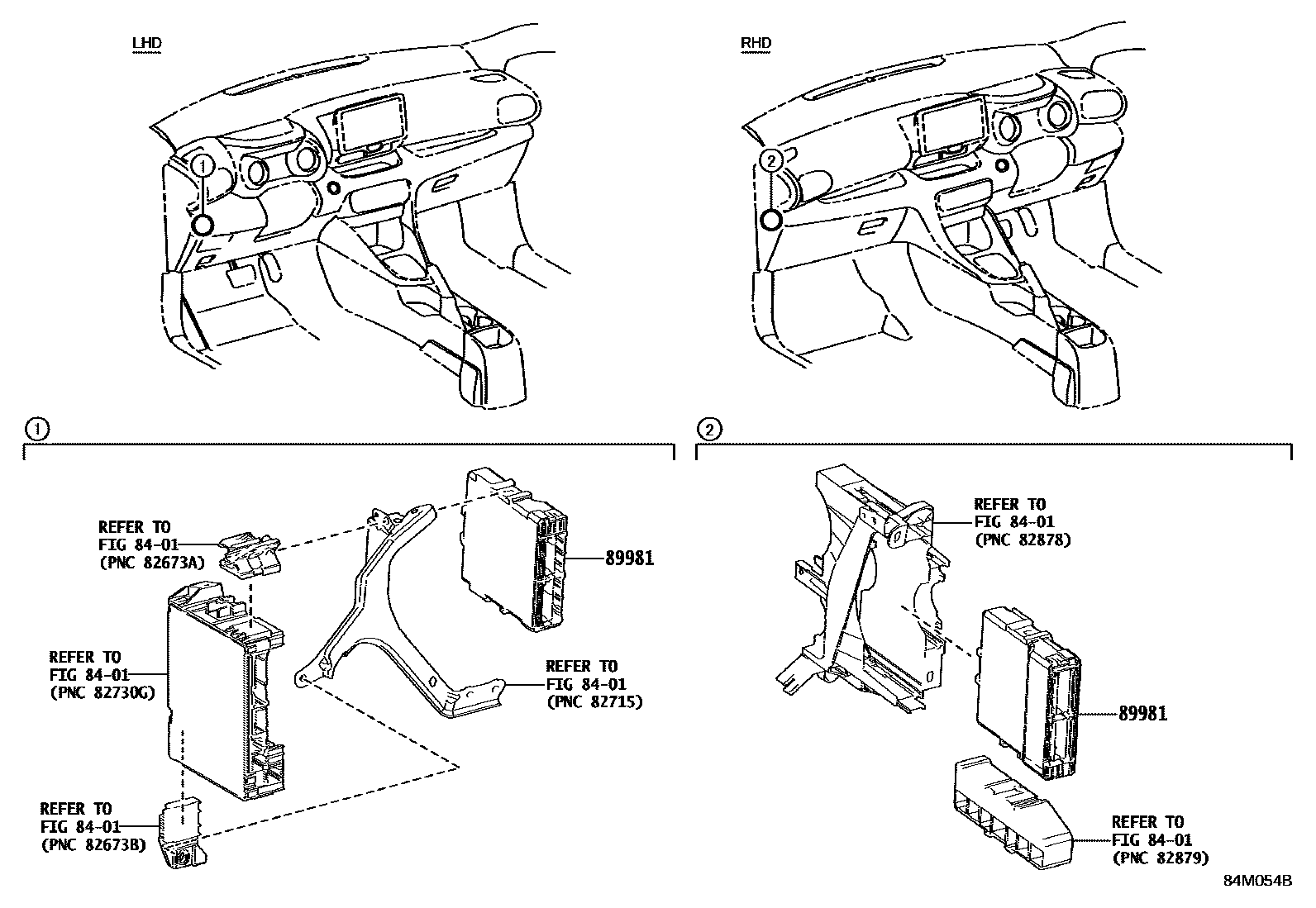

HEV CONTROL COMPUTER

8401

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-0D250iMXPH11..N,S,V;MXPH11..R..FRP202401-202504

main89981-0D260iMXPH13202401-202504

main89981-K0280iMXPH11..G,S202007-202108

*614

main89981-K0281supersedes 89981-K0011iMXPH11..G,S202108-202110

*614

main89981-K0282supersedes 89981-K0012iMXPH11..N,V;MXPH11..LHD..R..FRP202111-202401

*614

2 parts on this diagram · 1 diagram in section
