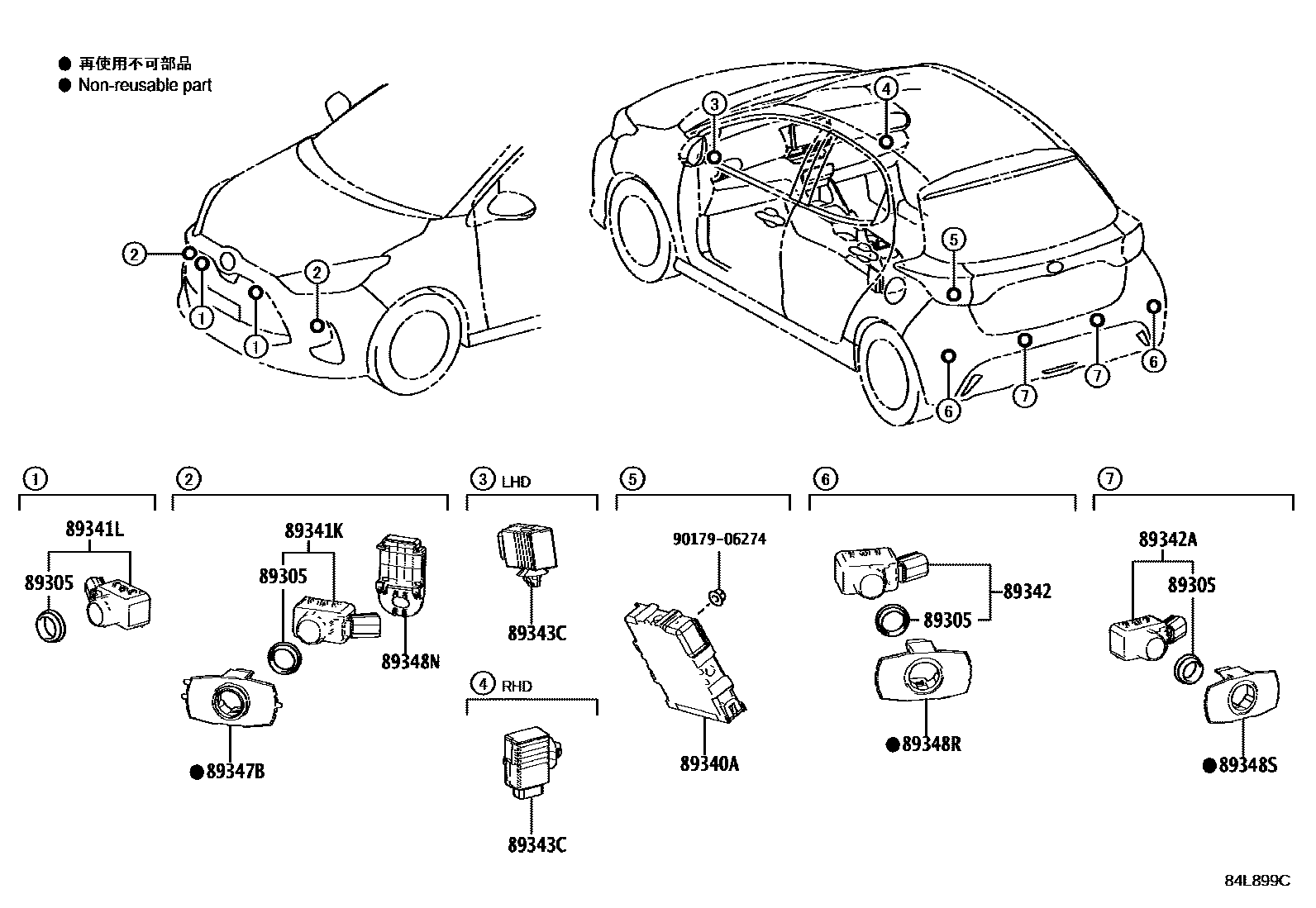

CLEARANCE & BACK SONAR

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010

89340ACOMPUTER ASSY, CLEARANCE WARNING

89341KSENSOR, ULTRASONIC, FRONT CORNER

89341LSENSOR, ULTRASONIC, FRONT CENTER

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-K0060

89342ASENSOR, ULTRASONIC, REAR CENTER

89343CBUZZER, CLEARANCE WARNING, NO.1

89347BRETAINER, ULTRASONIC SENSOR, FRONT CORNER

89348NCLIP, ULTRASONIC SENSOR, NO.1

89348RRETAINER, ULTRASONIC SENSOR, REAR CORNER

89348SRETAINER, ULTRASONIC SENSOR, REAR CENTER

9017906274

main90179-06274

12 parts on this diagram · 1 diagram in section
