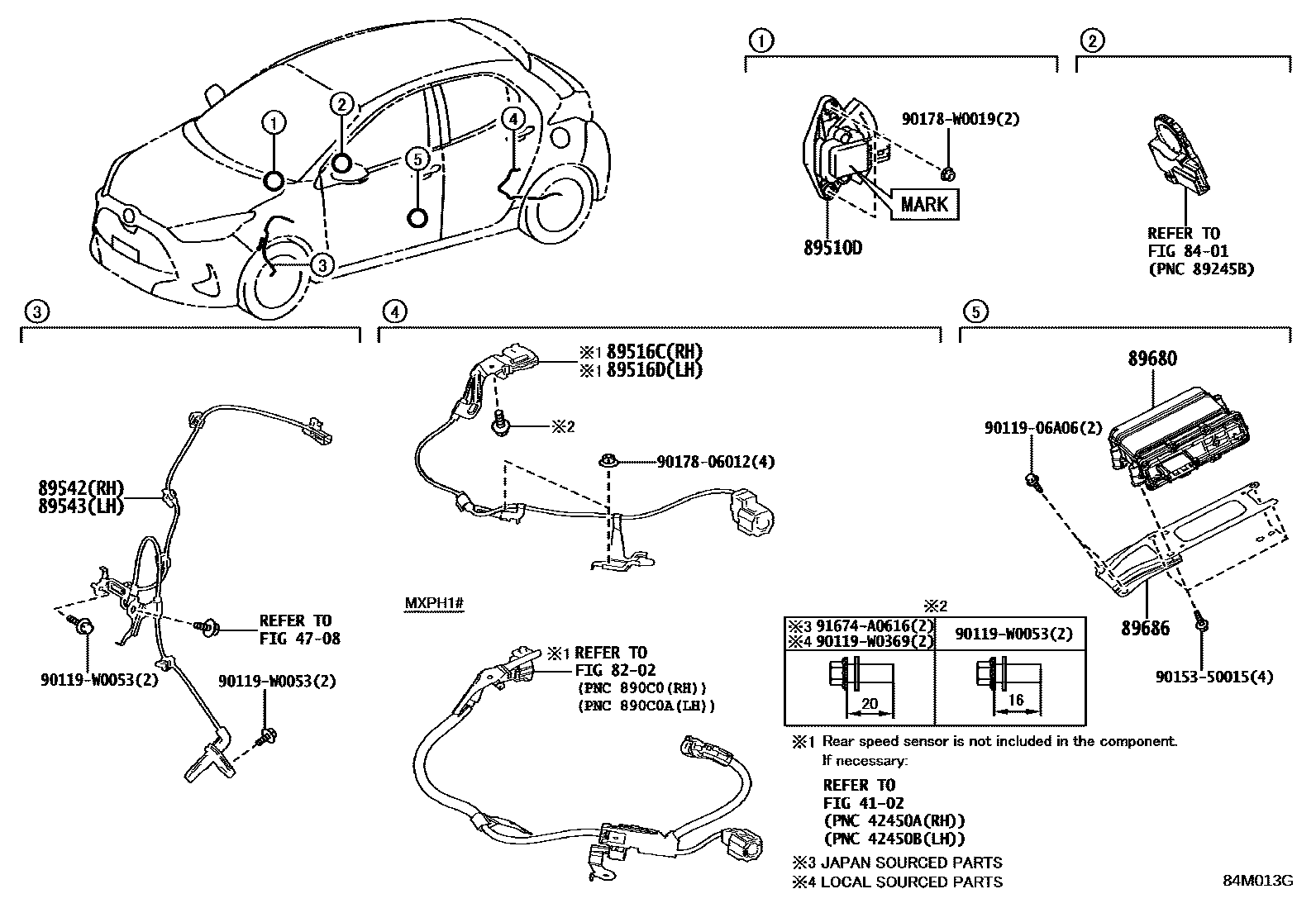

ABS & VSC

0001 1 0002 1

4102

4708

8202

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-K0010iMXPH11..LHD¥6,700202007-202305

MARK=89510-K0010

main89510-K0011iMXPH11..R..FRP;MXPH11..LHD..(N,S,V)202305-202401

MARK=89510-K0011

main89510-K0020iMXPH11..RHD..R¥6,700202007-202304

MARK=89510-K0020

main89510-K0021iMXPH11..RHD..G¥6,100202304-202401

MARK=89510-K0021

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-K0030iKSP211..G202007-202407

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-K0040iKSP211..G202007-202407

89542SENSOR, SPEED, FRONT RH

main89542-K0020iKSP211..G202007-202407

89543SENSOR, SPEED, FRONT LH

main89543-K0020iKSP211..G202007-202407

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-K0010iMXPH11..RHD..R¥24,900202007-202401

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-K0010iMXPH11..RHD..R202007-202401

9011906A06

main90119-06A06¥60

90119W0053

main90119-W0053¥100

90119W0369

main90119-W0369

9015350015

main90153-50015¥60

9017806012

main90178-06012¥80

90178W0019

main90178-W0019¥110

91674A0616

main91674-A0616¥60

18 parts on this diagram · 2 diagrams in section
