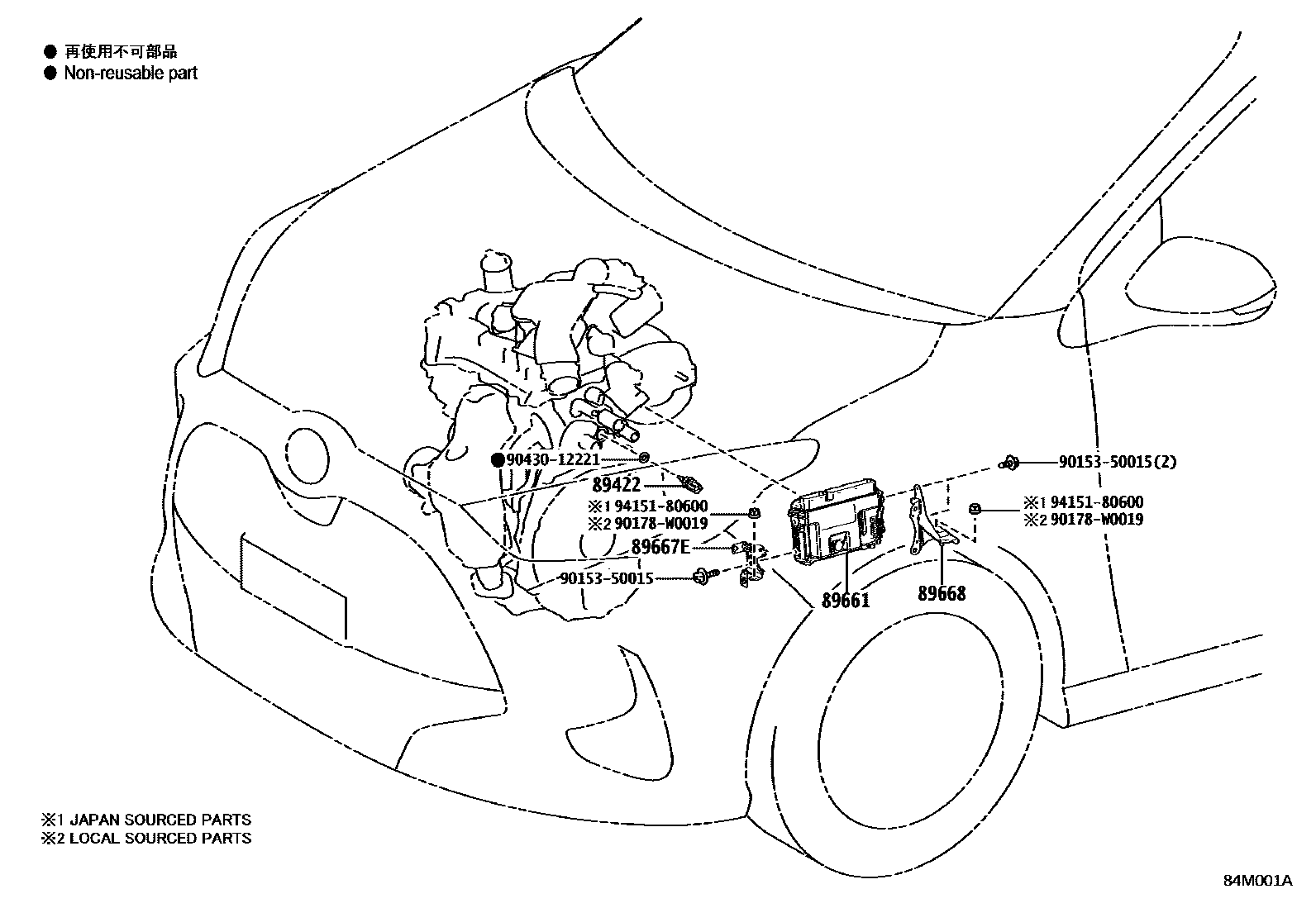

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iKSP211..G202007-202205

89661COMPUTER, ENGINE CONTROL

main89661-0UD60iMXPA11..V202203

DENSO,*614

main89661-0UJ30iMXPH1#..N,S,V;MXPH11..R..FRP202401-202504

DENSO

main89661-0UK60iMXPA11..6F..N202401-202407

DENSO

main89661-0UK80iMXPA11..LHD..CVT..N202401-202407

DENSO

main89661-K0020iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

BOSCH,*614

main89661-K0080iMXPH11202007-202101

DENSO,*614

sub89661-K0081

main89661-K0081iMXPH11202102-202108

DENSO,*614

sub89661-K0082

main89661-K0082iMXPH11..RHD..R202109-202401

DENSO,*614

main89661-K0690iMXPA11..6F202007-202107

DENSO,*614

sub89661-K0691

main89661-K0691iMXPA11..6F202108-202112

DENSO,*614

main89661-K0692iMXPA11..6F..S;MXPA11..LHD..6F..G202201-202401

DENSO,*614

main89661-K0710iMXPA11..CVT202007-202108

DENSO,*614

main89661-K0711iMXPA11..RHD..CVT..G202108-202206

DENSO,*614

main89661-K0712iMXPA11..CVT..(G,S);MXPA11..RHD..CVT..N202207-202401

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-K0010iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

main89667-K0020iMXPH11..RHD..R202007-202401

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0D280iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

main89668-0D290iKSP211..G202007-202205

main89668-0D300iMXPH13202401

main89668-K0020iMXPH11..RHD..R202007-202401

9015350015

main90153-50015

90178W0019

main90178-W0019

9043012221

main90430-12221

9415180600

main94151-80600

8 parts on this diagram · 3 diagrams in section
