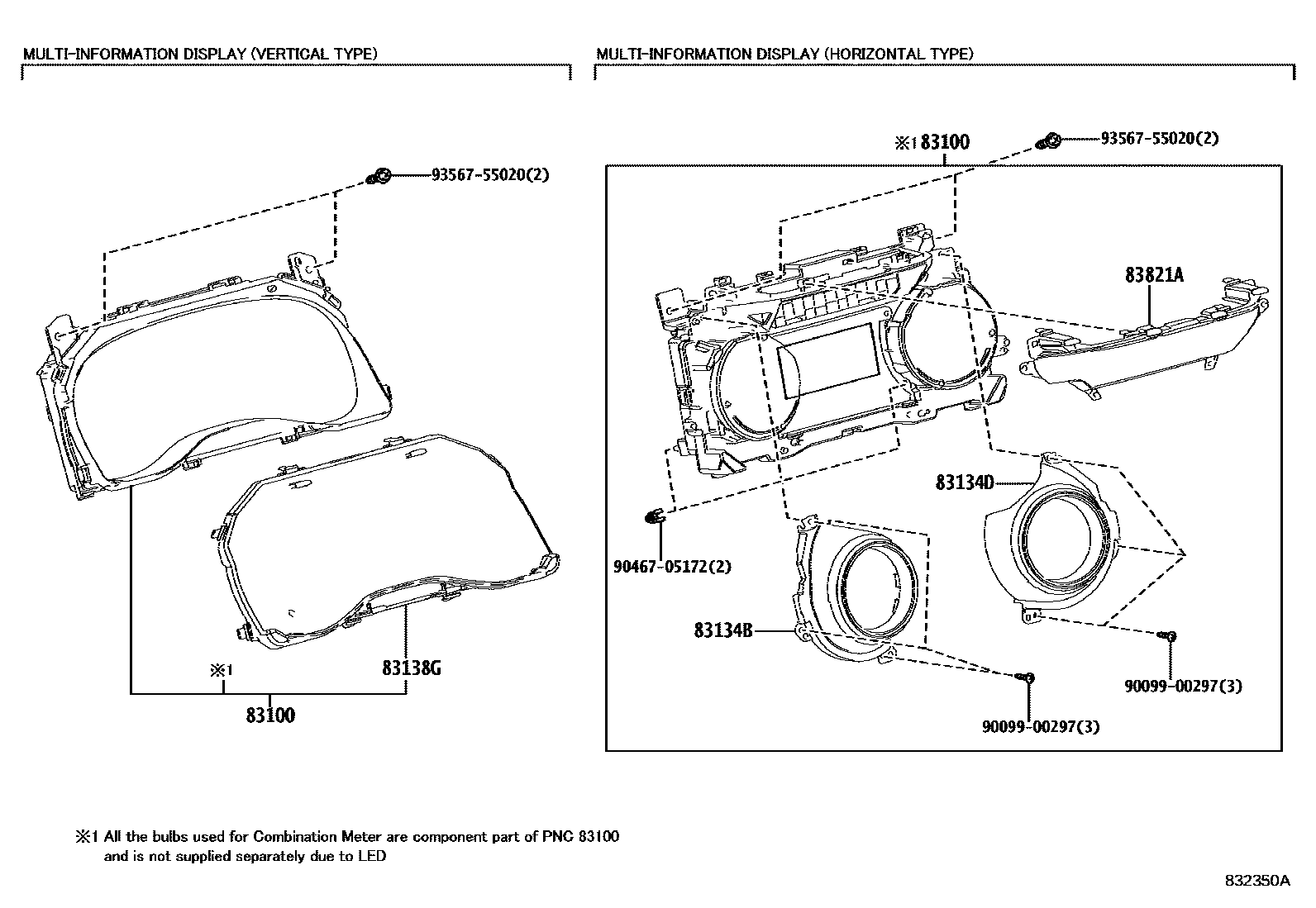

METER

0001 1COMBINATION METER 0002 1HEAD UP DISPLAY

83100METER ASSY, COMBINATION

main83800-F5890iKSP211..RHD..N202007-202008

DENSO,IRELAND, CYPRUS SPEC

sub83800-F5891

main83800-F5A30iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

DENSO

main83800-F5A90iMXPH11..RHD..N202401-202405

DENSO,SPEEDOMETER-ANALOG KM/H

main83800-F5A91iMXPH11..RHD..N202406

DENSO,SPEEDOMETER-ANALOG KM/H

main83800-F5D50iMXPH11..N202401-202405

DENSO,SPEEDOMETER-DIGITAL 12.3 INCHI MPH

main83800-F5D51iMXPH11..N202406-202410

DENSO,SPEEDOMETER-DIGITAL 12.3 INCHI KM/H

main83800-F5D52iMXPH11..N202411

DENSO,SPEEDOMETER-DIGITAL 12.3 INCHI KM/H

main83800-F5F20supersedes 83800-F5F40iMXPA11..RHD..V202203

DENSO,SPEEDOMETER-DIGITAL(KM/H) & GR-S

main83800-F5F31supersedes 83800-F5F51iMXPH11..LHD..V202203-202401

DENSO,SPEEDOMETER-DIGITAL(KM/H) & GR-S

main83800-F5J20iKSP211..RHD..(N,R)202007-202008

DENSO

sub83800-F5J21

main83800-K0190supersedes 83800-K0250iMXPA11..LHD..N202007-202008

DENSO,SPEEDOMETER-ANALOG(KM/H)

main83800-K0191iMXPA11..LHD..N202008-202401

DENSO,SPEEDOMETER-ANALOG(KM/H)

main83800-K0220iMXPH11..RHD..R202007-202008

DENSO,IRELAND, CYPRUS SPEC

main83800-K0221supersedes 83800-K0281iMXPH11..RHD..N202008-202401

DENSO,SPEEDOMETER-ANALOG(KM/H)

main83800-K0280iMXPH11..RHD..(N,R)202007-202008

DENSO

sub83800-K0281

main83800-K0290supersedes 83800-K0530iMXPA11..RHD..6F..(G,S)202007-202008

DENSO,IRELAND, CYPRUS SPEC

main83800-K0291supersedes 83800-K0531iMXPA11..RHD..6F..S202008

DENSO,IRELAND, CYPRUS SPEC

main83800-K0300supersedes 83800-K0540iMXPA11..RHD..CVT..(G,S)202007-202008

DENSO,IRELAND, CYPRUS SPEC

main83800-K0301supersedes 83800-K0541iMXPA11..LHD..CVT..(G,S)202008

DENSO,IRELAND, CYPRUS SPEC

main83800-K0520iMXPH11..LHD..(G,S)202007-202008

DENSO,IRELAND, CYPRUS SPEC

main83800-K0521supersedes 83800-K0551iMXPH11..LHD..(G,S)202008-202202

DENSO,IRELAND, CYPRUS SPEC

main83800-K0522supersedes 83800-K0552iMXPH11..RHD..S202203-202401

DENSO,IRELAND, CYPRUS SPEC

main83800-F5A60iMXPH11..RHD..S202401-202405

DENSO,IRELAND,CYPRUS SPEC&LW PACKAGE

main83800-F5A61supersedes 83800-K0552iMXPH11..RHD..S202406

DENSO,IRELAND,CYPRUS SPEC&LW PACKAGE

main83800-F5C80supersedes 83800-F5J21iKSP211..RHD..(G,R)202007-202008

DENSO,IRELAND, CYPRUS SPEC&LW PACKAGE

main83800-F5C81supersedes 83800-F5J51iKSP211..LHD..G202008-202105

DENSO,IRELAND, CYPRUS SPEC&LW PACKAGE

main83800-F5C90iMXPH11..RHD..(G,R,S)202007-202008

DENSO,IRELAND, CYPRUS SPEC&LW PACKAGE

main83800-F5C91iMXPH11..LHD..(N,S);MXPH11..LHD..R..FRP202008-202401

DENSO,IRELAND, CYPRUS SPEC&LW PACKAGE

main83800-F5D30supersedes 83800-K0281iMXPH11..N202401-202405

DENSO,SPEEDOMETER-DIGITAL 7.0 INCHI KM/H

main83800-F5D31iMXPH11..N202406

DENSO,SPEEDOMETER-DIGITAL 7.0 INCHI KM/H

main83800-F5E80iMXPA11..V202203

DENSO,SPEEDOMETER-ANALOG(KM/H) & GR-S

main83800-F5E90iMXPH11..V202203-202401

DENSO,SPEEDOMETER-ANALOG(KM/H) & GR-S

main83800-F5F00supersedes 83800-F5F40iMXPA11..RHD..V202203

DENSO,SPEEDOMETER-ANALOG(MPH) & GR-S

main83800-F5F10supersedes 83800-F5F51iMXPH11..RHD..V202203-202401

DENSO,SPEEDOMETER-ANALOG(MPH) & GR-S

main83800-F5J30iKSP211..N202007-202008

DENSO,SPEEDOMETER-DIGITAL(KM/H)

main83800-F5J31iKSP211..N202008

DENSO,SPEEDOMETER-DIGITAL(KM/H)

main83800-F5J40supersedes 83800-F5J21iKSP211..RHD..N202007-202008

DENSO,SPEEDOMETER-DIGITAL(MPH)

main83800-F5J41supersedes 83800-F5J21iKSP211..RHD..N202008

DENSO,SPEEDOMETER-DIGITAL(MPH)

main83800-K0200iMXPA11..6F..N202007-202008

DENSO,SPEEDOMETER-DIGITAL(KM/H)

main83800-K0201iMXPA11..6F..N202008-202401

DENSO,SPEEDOMETER-DIGITAL(KM/H)

main83800-K0210iMXPA11..CVT..N202007-202008

DENSO,SPEEDOMETER-DIGITAL(KM/H)

main83800-K0211iMXPA11..LHD..CVT..N202008-202401

DENSO,SPEEDOMETER-DIGITAL(KM/H)

main83800-K0230iMXPH11..N202007-202008

DENSO,SPEEDOMETER-DIGITAL(KM/H)

main83800-K0231iMXPH11..N202008-202202

DENSO,SPEEDOMETER-DIGITAL(KM/H)

main83800-K0232iMXPH11..N202203-202401

DENSO,SPEEDOMETER-DIGITAL(KM/H)

main83800-K0240supersedes 83800-K0251iMXPA11..RHD..6F..N202007-202008

DENSO,SPEEDOMETER-DIGITAL(MPH)

main83800-K0241supersedes 83800-K0251iMXPA11..RHD..6F..N202008-202401

DENSO,SPEEDOMETER-DIGITAL(MPH)

main83800-K0260supersedes 83800-K0251iMXPA11..RHD..CVT..N202007-202008

DENSO,SPEEDOMETER-DIGITAL(MPH)

main83800-K0261supersedes 83800-K0251iMXPA11..RHD..CVT..N202008

DENSO,SPEEDOMETER-DIGITAL(MPH)

main83800-K0270supersedes 83800-K0281iMXPH11..RHD..N202007-202008

DENSO,SPEEDOMETER-DIGITAL(MPH)

main83800-K0271supersedes 83800-K0281iMXPH11..RHD..N202008-202202

DENSO,SPEEDOMETER-DIGITAL(MPH)

main83800-K0272supersedes 83800-K0281iMXPH11..RHD..N202203-202401

DENSO,SPEEDOMETER-DIGITAL(MPH)

83134BCOVER, COMBINATION METER, NO.2

main83822-K0200iMXPH11..V202203-202401

main83822-K0290iMXPH11..G;MXPA11..RHD..S;MXPA11..LHD..(G,S)202007

83134DCOVER, COMBINATION METER, NO.3

main83823-K0200iMXPA11..V202203

main83823-K0290iKSP211..G202007-202105

83138GGLASS, COMBINATION METER

main83852-F5A60iMXPH11..RHD..S202401

IRELAND,CYPRUS SPEC&LW PACKAGE

main83852-F5D50iMXPH11..N202401

SPEEDOMETER-DIGITAL 12.3 INCHI MPH

main83852-K0190iKSP211,MXPH11..RHD..R202007-202205

main83852-F5D30iMXPH11..N202401

SPEEDOMETER-DIGITAL 7.0 INCHI MPH

83821ACOVER, COMBINATION METER, NO.1

main83821-K0200iKSP211..G202007-202105

9009900297

main90099-00297

9046705172

main90467-05172

9356755020

main93567-55020

8 parts on this diagram · 2 diagrams in section
