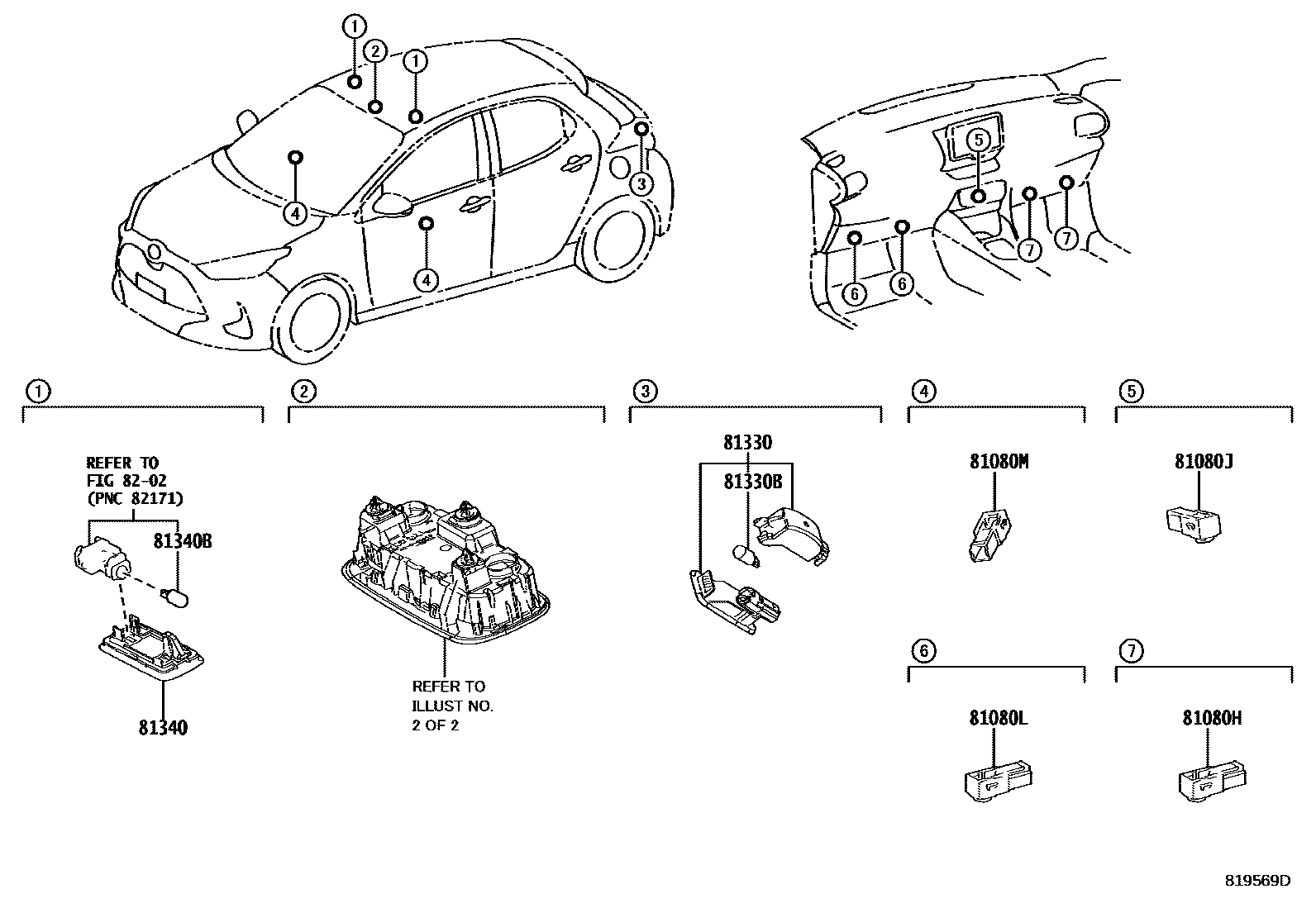

INTERIOR LAMP
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)&WIRELESS CHARGER-WITH
ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
main90981-WB021iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)¥110202007-202407
12V 5W
81340LAMP ASSY, VANITY
MOON ROOF-WITH(PANORAMIC ROOF)
LW PACKAGE
81340BBULB (FOR VANITY LAMP)
12V 8W
8202
9 parts on this diagram · 3 diagrams in section
