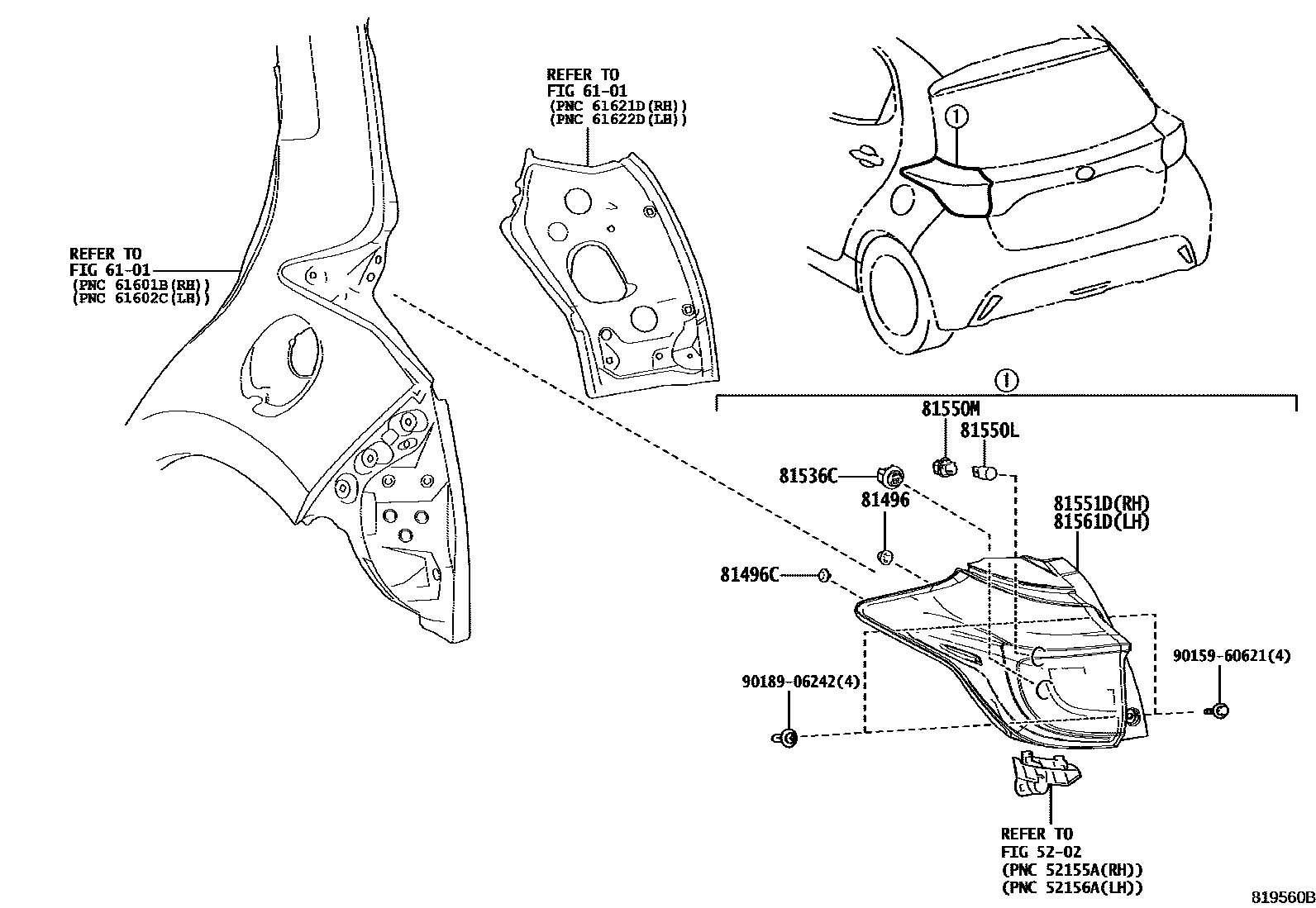

REAR COMBINATION LAMP

0001 1TURN LAMP = BULB 0002 1TURN LAMP = LED

5202

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2iKSP211..G202007-202105

81536CLED, TAIL & STOP LAMP

main81536-15120×2iKSP211,MXPH11..RHD..R202007-202205

main81965-70010×2iMXPA11..6F..N;MXPH11..N,S,V;MXPH11..R..FRP;MXPA11..LHD..CVT..N202206-202401

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iMXPH11..S202007-202401

12V 21W,AMBER,HEADLAMP-HALOGEN & WITH(*AHB)

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60028×2iKSP211,MXPH11..RHD..R202007-202205

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-K0030supersedes 81551-K0040iKSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..RHD..CVT..N202007

HEADLAMP-HALOGEN & WITH(*AHB)

main81551-K0040supersedes 81551-K0030iKSP211..N;MXPA11..RHD..CVT..N202007

REAR COMBINATION LAMP-LED TYPE(TURN LAMP)

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-K0030supersedes 81561-K0040iMXPH11..N..CZEP;MXPH11..(N,R)..FRP202401

HEADLAMP-HALOGEN & WITH(*AHB)

main81561-K0040supersedes 81561-K0030iMXPH1#..S,V202401

REAR COMBINATION LAMP-LED TYPE(TURN LAMP)

9015960621

main90159-60621

9018906242

main90189-06242

11 parts on this diagram · 2 diagrams in section
