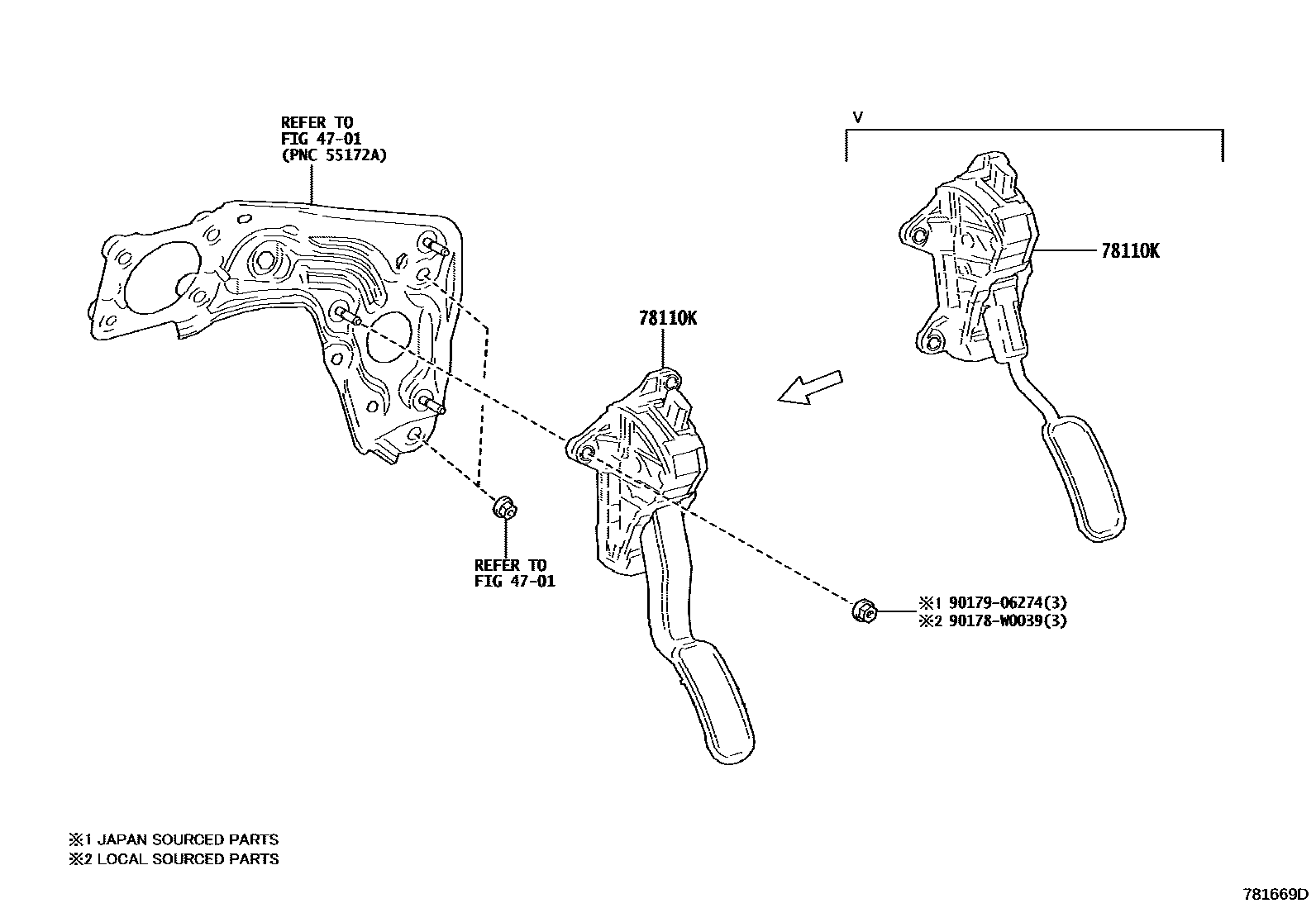

ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-0D290iMXPH1#..LHD..V202401

main78110-0D300iMXPH11..RHD..V202205-202401

main78110-52121iMXPA11,MXPH11..LHD..V202203-202204

main78110-52341iMXPA11,MXPH11..RHD..V202203-202204

main78110-K0020iMXPA11..RHD..6F..N;MXPH11..RHD..(N,S)202007-202401

main78110-K0030iMXPA11..LHD..N202401-202407

main78110-0D280supersedes 78110-K0030iMXPA11..LHD..6F..N..FRP202007-202401

SPEED LIMITER CONTROL-WITHOUT

main78110-52130supersedes 78110-0D290iMXPA11..LHD..V202203-202204

SPEED LIMITER CONTROL-WITHOUT

90178W0039

main90178-W0039

9017906274

main90179-06274

4 parts on this diagram · 2 diagrams in section
