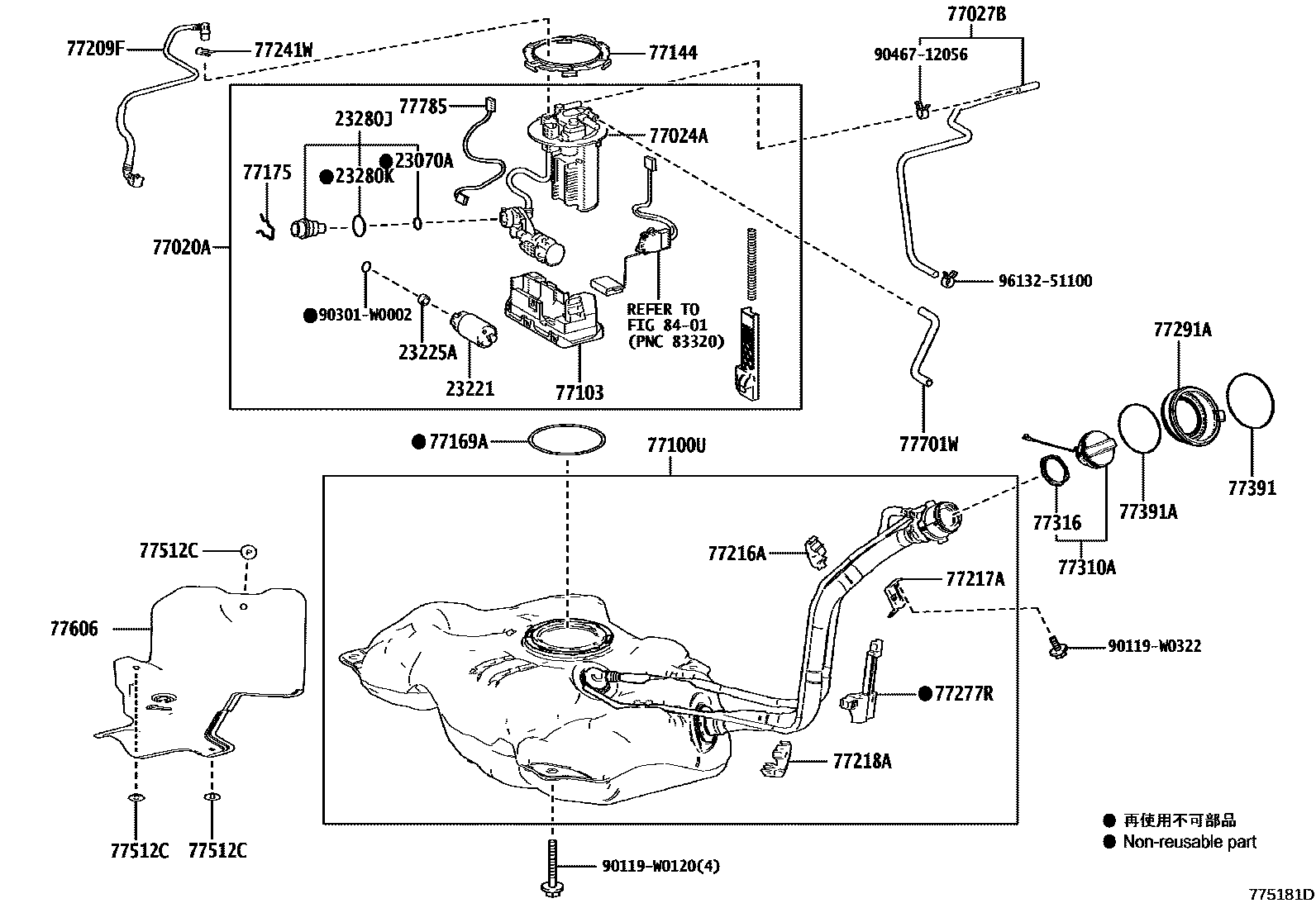

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL LID OPENER 0010 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-24010iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202407

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iM15AFXE..MXPH11..G;1KRFE..KSP211..RHD..N;M15AFXE..MXPH11..R..CZEP;1KRFE..KSP211..LHD..(N,R);M15AFKS..MXPA11..LHD..(G,S,V);M15AFKS..MXPA11..RHD..6F..(S,V);M15AFKS..M202007-202407

23221PUMP, FUEL

main23210-0T010iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202007-202205

main23210-0T040iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202407

23225ASPACER, FUEL PUMP

main23225-0T010iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202007-202205

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-15050iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202401

main23280-21010i1KRFE..KSP211..RHD..N;1KRFE..KSP211..LHD..(N,R)202007-202205

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1KRFE..KSP211..G202007-202205

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0D280iMXPH1#..N,S,V;MXPH11..R..FRP202401

main77020-K0050iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

main77020-K0060iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

main77020-K0080iMXPH11..RHD..R202007-202401

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0D150iMXPH1#..N,S,V;MXPH11..R..FRP202401

main77024-K0010iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

main77024-K0020iKSP211..G202007-202205

main77024-K0030iMXPH11..G;MXPH11..R..CZEP202007-202401

77027BTUBE SUB-ASSY, FUEL EMISSION, NO.1

main77027-K0040iKSP211..G202007-202407

main77027-K0050iMXPH11..N,S,V;MXPH11..LHD..R..FRP202007-202401

77100UTANK SUB-ASSY, FUEL

main77001-K0060iKSP211..RHD..N;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407

main77001-K0090iMXPH11..G;MXPH11..R..CZEP202007-202401

77103SUB-TANK SUB-ASSY, FUEL

main77103-F4070iMXPH1#..N,S,V;MXPH11..R..FRP202401

main77103-K0010iMXPH11..RHD..R202007-202401

main77103-K0030iMXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407

main77103-K0040iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iKSP211..G202007-202407

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D170iMXPA11..6F..N;MXPA11..LHD..CVT..N202307-202407

main77169-47040iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202306

77175SUPPORT, FUEL SUCTION, NO.2

main77175-02050iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

main77175-F4010iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-K0040iKSP211..RHD..R;MXPA11..RHD..G202007-202407

main77209-K0060iMXPH1#..N,S,V;MXPH11..R..FRP202007-202401

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-K0020iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-K0020iKSP211..G202007-202407

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-K0030iKSP211..G202007-202407

77241WCLIP, TUBE JOINT

main77241-32060iKSP211..G202007-202407

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-52120iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-K0030iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202407

77310ACAP ASSY, FUEL TANK

main77300-12020iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

77316GASKET, FUEL TANK CAP

main77316-52040iKSP211..G202007-202407

77391RING, FUEL INLET BOX

main77391-75010iKSP211..G202007-202407

77391ARING, FUEL INLET BOX

main77391-12020iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

77512CBRACKET, FUEL TANK

main77512-35140iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-K0060iKSP211..G202007-202407

main77606-K0090iMXPH11..N,S,V;MXPH11..LHD..R..FRP202007-202401

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-K0040iKSP211..G202007-202407

main77701-K0050iMXPH11..N,S,V;MXPH11..LHD..R..FRP202007-202401

77785HARNESS, FUEL PUMP

main77785-02160iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

main77785-52120iMXPH11..RHD..R202007-202401

main77785-52150iMXPH1#..N,S,V;MXPH11..R..FRP202401

main77785-76010iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

8401

90119W0120

main90119-W0120

90119W0322

main90119-W0322

90301W0002

main90301-W0002

9046712056

main90467-12056

9613251100

main96132-51100

35 parts on this diagram · 9 diagrams in section
