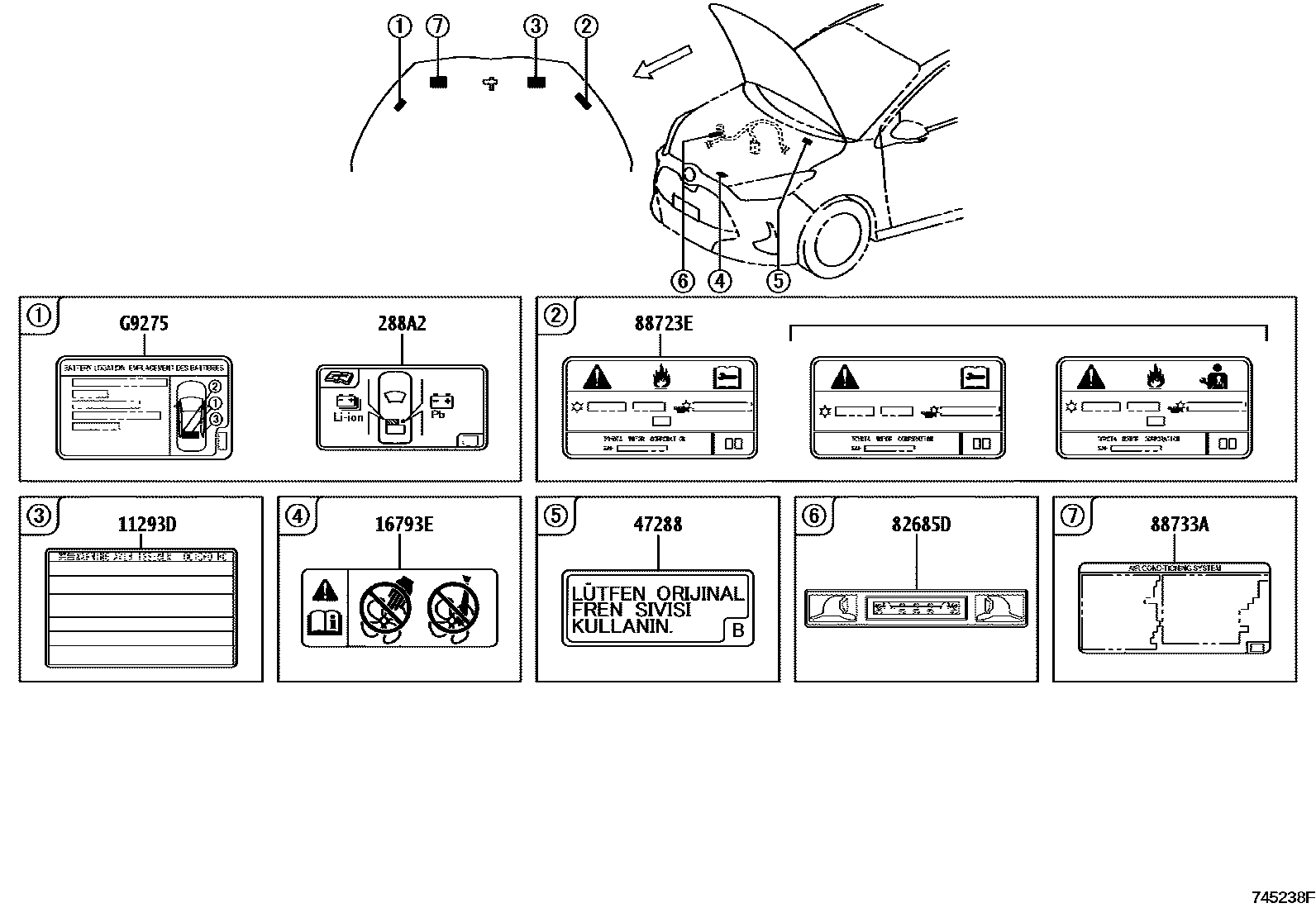

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR

11293DLABEL, ENGINE CAUTION

main11293-36070iM15AFXE..MXPH11..N,S,V;M15AFXE..MXPH11..LHD..R..FRP202007-202401

16793ELABEL, COOLING FAN CAUTION

main16793-36030i1KRFE..KSP211..G202007-202105

288A2LABEL, BATTERY LOCATION

main288A2-15020iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202401

47288LABEL, BRAKE FLUID NOTICE

main47288-64010iMXPA11..LHD..N..FRP;MXPH11..LHD..(N,R,S)..FRP202007-202401

TURKEY SPEC

82685DPLATE, CAUTION

main82684-48010iMXPH1#..N,S,V;MXPH11..R..FRP202401

88723ELABEL, COOLER SERVICE CAUTION

main7454B-0D010iMXPH1#..N,S,V;MXPH11..R..FRP202411

main88723-K0030iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202401

main88723-K0040iMXPH11..N,S,V;MXPH11..LHD..R..FRP202007-202401

main88723-0D270iKSP211..LHD..(N,R)..FRP202007

MOROCCO SPEC

main88723-0D310iMXPH11..LHD..G..FRP202007

MOROCCO SPEC

main88723-K0050iKSP211..LHD..(N,R)..FRP;MXPA11..LHD..CVT..(G,S)..FRP202007

UKRAINE SPEC

main88723-K0060iMXPH11..LHD..G..FRP202007

UKRAINE SPEC

88733ALABEL, COOLER SERVICE INFORMATION

main88733-0H010iMXPH1#..N,S,V;MXPH11..R..FRP202411

G9275LABEL, BATTERY CAUTION, NO.1

mainG9275K0030iMXPH11..N,S,V;MXPH11..LHD..R..FRP202007-202401

8 parts on this diagram · 2 diagrams in section
