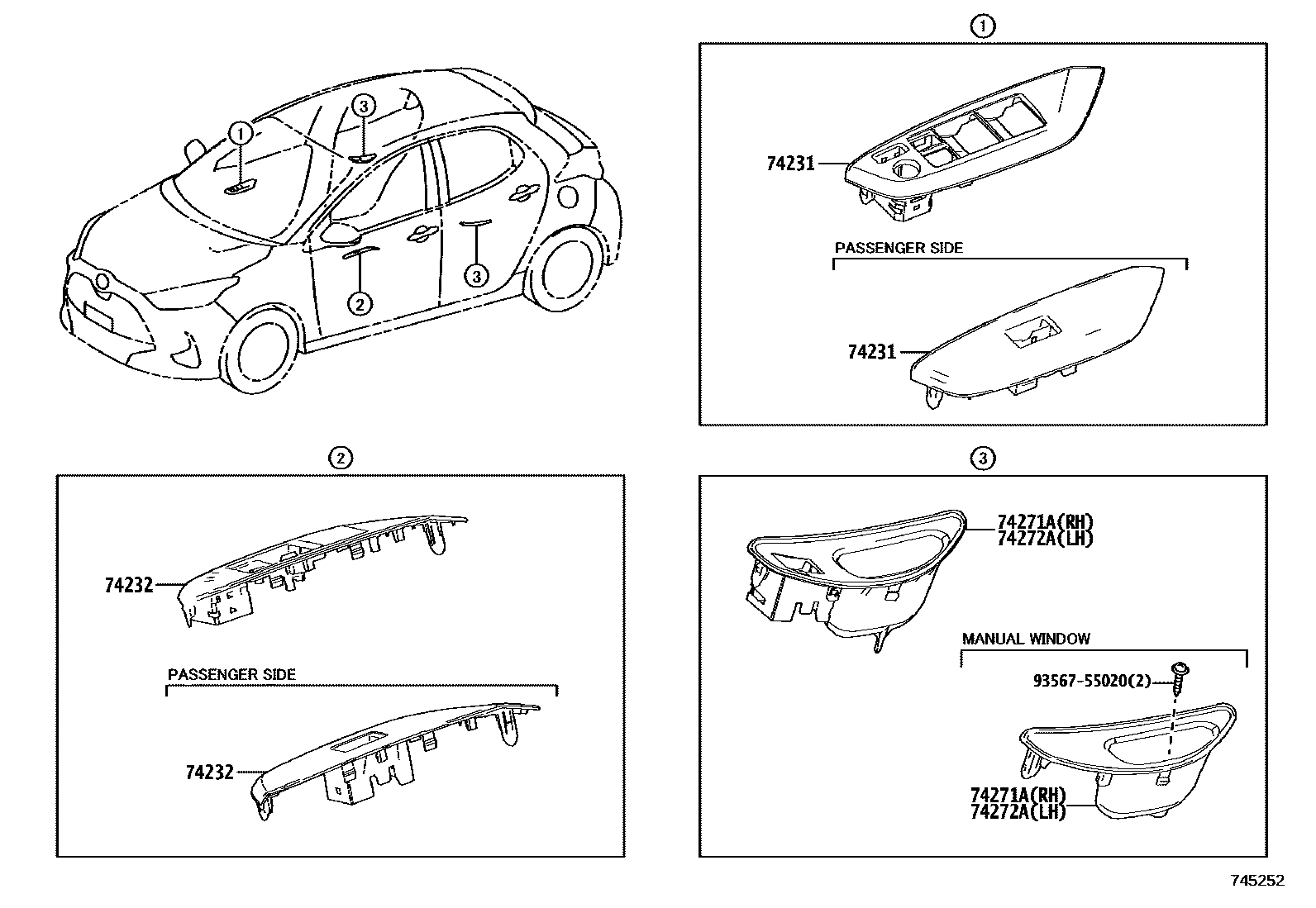

ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-K0050-C0i202007-202205

BLACK,TRIM2#

BLACK,TRIM2#

main74231-K0120-C1supersedes 74231-K0050-C0i202007-202105

BLACK,TRIM1#

main74231-K0060-C0supersedes 74231-K0050-C0i202203

BLIND SPOT MONITOR-WITH,BLACK,TRIM2#

main74231-K0070-C1supersedes 74231-K0120-C1i202007

POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN AUTO)&BLIND SPOT MONITOR-WITH,BLACK,TRIM1#,2#,4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-K0040-C1i202401-202407

BLACK,TRIM2#

main74232-K0060-C0i202007-202401

BLACK,TRIM2#

main74232-K0080-C1i202007-202105

BLACK,TRIM1#

main74232-K0070-C0supersedes 74232-K0080-C1i202007-202105

LW PACKAGE,BLACK,TRIM2#

main74232-K0120-C1supersedes 74232-K0060-C0i202401

POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN AUTO),BLACK,TRIM2#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-K0050-C0supersedes 74271-K0090-C1i202007

BLACK,TRIM2#

main74271-K0090-C1supersedes 74271-K0050-C0i202007

BLACK,TRIM2#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-K0050-C0supersedes 74272-K0090-C1i202007-202205

BLACK,TRIM2#

main74272-K0090-C1supersedes 74272-K0050-C0i202007

BLACK,TRIM2#

9356755020

5 parts on this diagram · 2 diagrams in section
