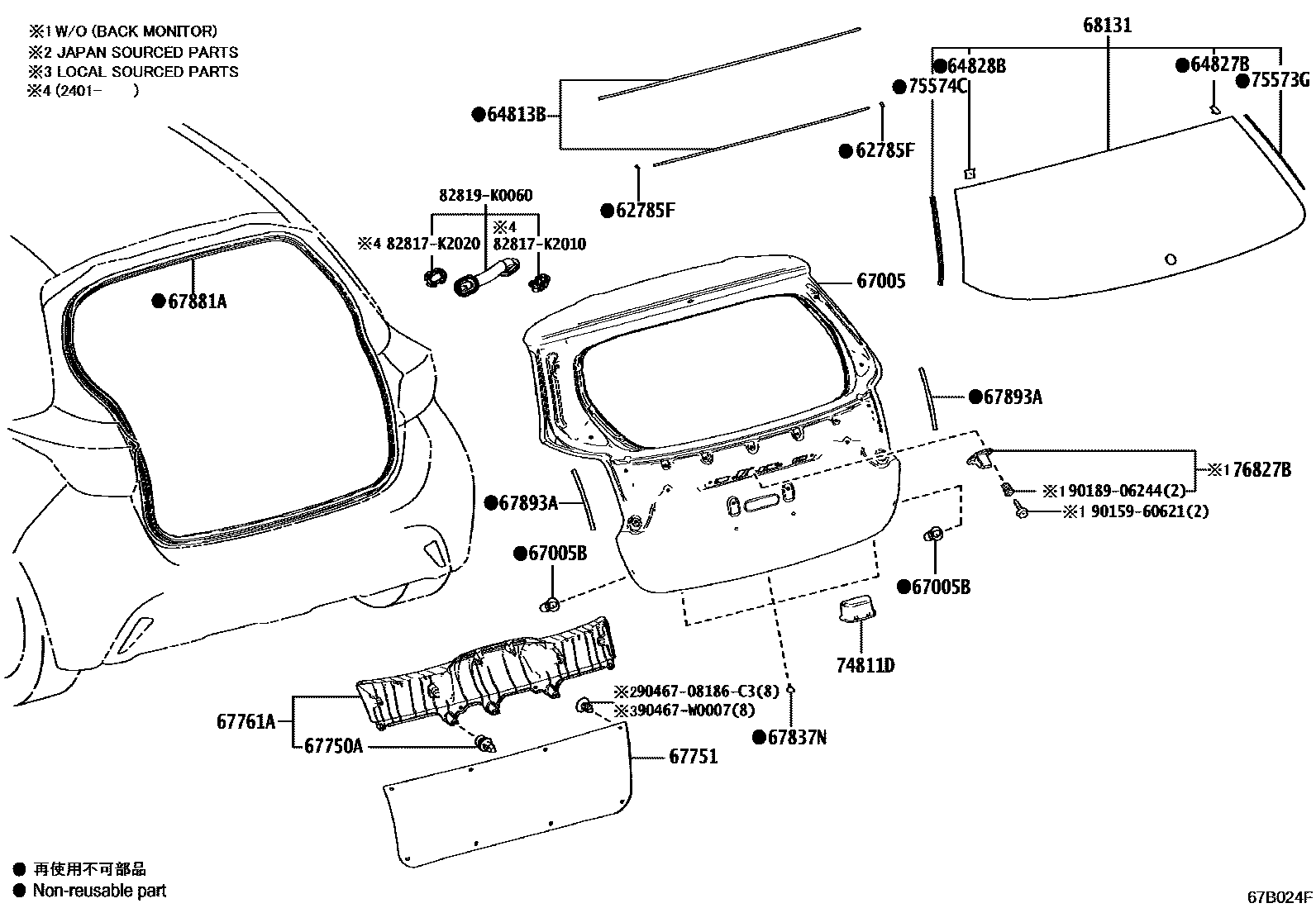

BACK DOOR PANEL & GLASS

62785FSPACER, BACK DOOR GLASS

main62785-12050×2iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

*D,L=1057 OR 736

64827BCLIP, BACK WINDOW GLASS, RH

main64827-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

64828BCLIP, BACK WINDOW GLASS, LH

main64828-K0010iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

67005PANEL SUB-ASSY, BACK DOOR

main67005-K0010supersedes 67005-K0030iMXPH11..N,S202007-202401

LW PACKAGE

main67005-K0030supersedes 67005-K0010iMXPH11..N,S,V202007-202401

BODY COLOR-TWO-TONES&WITH(STOP & START SYSTEM)

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142×2iKSP211..G202007-202105

67750ACLIP(FOR BACK DOOR TRIM)

main90467-W0005×8iKSP211,MXPA11,MXPH11202007

67751BOARD, BACK DOOR TRIM

main67751-K0040-C0iKSP211,MXPA11,MXPH11..G..FRP202007

BLACK,TRIM1#,2#

67761ACOVER, BACK DOOR TRIM

main67761-K0020-C0iKSP211,MXPA11,MXPH11..G..FRP202007

BLACK,TRIM1#,2#

67837NSEAL, BACK DOOR DUST PROOF

main67837-K0040×3iKSP211..G202007-202105

main67837-K0041×3iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

67881AWEATHERSTRIP, BACK DOOR

main67881-K0010iMXPH1#..N,S,V;MXPH11..R..FRP202401

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-0D040×2iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

68131GLASS, BACK DOOR

main68105-0D490supersedes 68105-0D520iMXPH11..S,V202111-202401

BACK GLASS-PRIVACY

main68105-0D500iMXPH11..N..CZEP;MXPH11..(N,R)..FRP202401

main68105-0D510supersedes 68105-0D500iMXPH11..N202401

BACK GLASS-PRIVACY

main68105-0D520supersedes 68105-0D500iKSP211,MXPH11..RHD..R202111-202205

BACK GLASS-GREEN(T=3.1)

main68105-K0040supersedes 68105-K0200iMXPA11,MXPH11..G,S202106-202111

BACK GLASS-PRIVACY

main68105-K0050iMXPA11..G,N;KSP211..LHD..N;KSP211..RHD..(N,R);MXPH11..LHD..(G,N);MXPH11..RHD..(G,N,R)202007-202106

main68105-K0220supersedes 68105-K0050iMXPA11..N;KSP211,MXPH11..LHD..N;KSP211,MXPH11..RHD..(N,R)202106-202111

BACK GLASS-GREEN(T=3.1)

74811DHANDLE, DOOR PULL

main74811-13010-C2iKSP211,MXPA11,MXPH11..G..FRP202007

BLACK,TRIM1#,2#

75573GMOULDING, BACK WINDOW, OUTSIDE RH NO.1

main75573-0D080iMXPH1#..N,S,V;MXPH11..R..FRP202401

75574CMOULDING, BACK WINDOW, OUTSIDE LH NO.1

main75574-0D030iMXPH1#..N,S,V;MXPH11..R..FRP202401

76827BRETAINER, BACK DOOR GARNISH, NO.2

main76827-K0010iKSP211,MXPH11..RHD..R202007-202205

BACK MONITOR-WITHOUT

82817K2010PROTECTOR, WIRING HARNESS, NO.1

main82817-K2010

82817K2020PROTECTOR, WIRING HARNESS, NO.1

main82817-K2020

82819K0060GROMMET, WIRING HARNESS

main82819-K0060

9015960621

main90159-60621

9018906244

main90189-06244

9046708186C3

main90467-08186C3

90467W0007

main90467-W0007

24 parts on this diagram · 1 diagram in section
