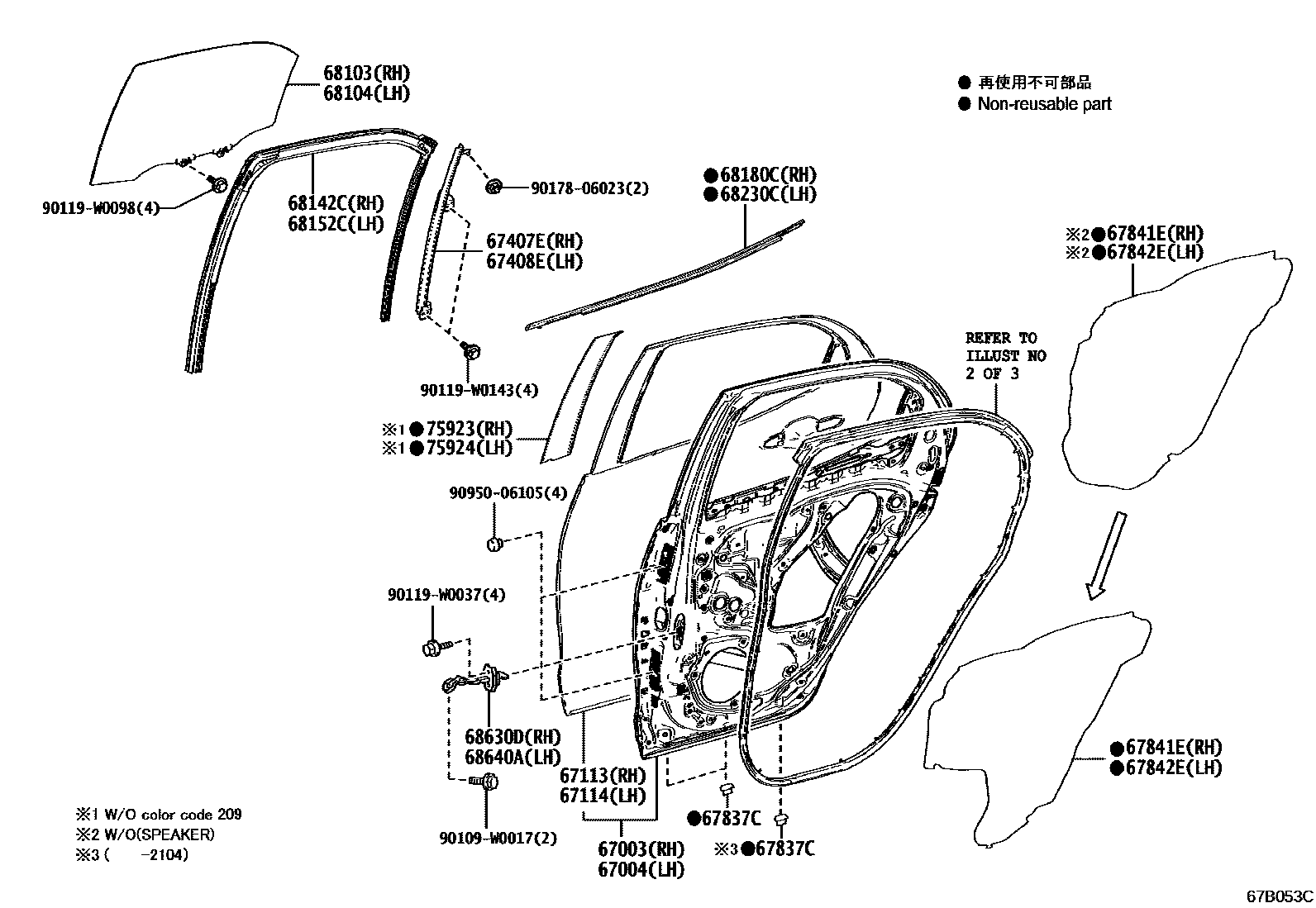

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1WEATHERSTRIP 0003 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-K0060iKSP211..G202007-202105

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-K0060iKSP211..G202007-202105

67113PANEL, REAR DOOR, OUTER RH

main67113-K0050iKSP211..G202007-202105

67114PANEL, REAR DOOR, OUTER LH

main67114-K0050iKSP211..G202007-202105

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-K0010iKSP211..G202007-202105

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-K0010iKSP211..G202007-202105

67837CSEAL, REAR DOOR DUST PROOF

main67837-48050×4iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202104

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-K0050iMXPH11..N,S,V;MXPA11..6F..N;MXPA11..LHD..CVT..N202007-202401

main67841-K0060iMXPH11..R..FRP202401

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-K0050iKSP211..N;MXPH11..G;MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

main67841-K0060iMXPH11..LHD..R..FRP202007-202401

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0D030supersedes 68103-0D040iMXPH11..N..CZEP;MXPH11..(N,R)..FRP202401

main68103-0D040supersedes 68103-0D030iMXPH11..N;MXPA11..6F..N;MXPA11..LHD..CVT..N202111-202401

BACK GLASS-PRIVACY

main68103-K0010iKSP211,MXPA11,MXPH11..N,R202007-202110

main68103-K0020supersedes 68103-K0020iKSP211,MXPA11,MXPH11..N202007-202110

BACK GLASS-PRIVACY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0D030supersedes 68104-0D040iKSP211,MXPH11..RHD..R202111-202205

BACK GLASS-GREEN(T=3.1)

main68104-0D040supersedes 68104-0D030iMXPH1#..S,V202401

BACK GLASS-PRIVACY

main68104-K0010iKSP211,MXPA11,MXPH11..N,R202007-202110

main68104-K0020supersedes 68104-K0020iKSP211,MXPA11,MXPH11..N202007-202110

BACK GLASS-PRIVACY

68142CRUN, REAR DOOR GLASS, RH

main68142-K0010iMXPH1#..N,S,V;MXPH11..R..FRP202401

68152CRUN, REAR DOOR GLASS, LH

main68152-K0010iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-52240iMXPH11..G;MXPA11..LHD..G202007-202302

main68180-52241iMXPA11,MXPH11..G202303

main68180-K0010supersedes 68180-52240iMXPH11..G,S202007-202208

LW PACKAGE

main68180-K0011iMXPH11..G202209

LW PACKAGE

main68180-K0050iMXPH11..S,V202007-202401

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-52240iMXPA11..RHD..G202007-202205

main68230-52241iMXPA11,MXPH11..G202303

main68230-K0010supersedes 68230-52240iMXPH11..G,S202007-202208

LW PACKAGE

main68230-K0011iMXPA11..6F..N;MXPH11..N..CZEP;MXPH11..(N,R)..FRP;MXPA11..LHD..CVT..N202209-202401

LW PACKAGE

main68230-K0050iMXPH1#..S,V202401

68630DCHECK ASSY, REAR DOOR, RH

main68630-0D260iMXPA11..6F..N;MXPH11..N,S,V;MXPH11..R..FRP;MXPA11..LHD..CVT..N202309-202401

main68630-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

main68630-K0011iKSP211,MXPA11,MXPH11202209-202308

68640ACHECK ASSY, REAR DOOR, LH

main68630-0D260iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main68630-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

main68630-K0011iKSP211,MXPA11,MXPH11202209-202308

75923TAPE, BLACK OUT, NO.2 RH

main75923-0D390iKSP211,MXPA11,MXPH11202111

0 OR 1PIECE,REF.ILL.

main75923-K0010iKSP211,MXPA11,MXPH11202007-202110

0 OR 1PIECE,REF.ILL.

75924TAPE, BLACK OUT, NO.2 LH

main75924-0D390iMXPH11..N,S;MXPH11..R..FRP202401

0 OR 1PIECE,REF.ILL.

main75924-K0010iKSP211,MXPA11,MXPH11202007-202110

0 OR 1PIECE,REF.ILL.

90109W0017

main90109-W0017

90119W0037

main90119-W0037

90119W0098

main90119-W0098

90119W0143

main90119-W0143

9017806023

main90178-06023

9095006105

main90950-06105

25 parts on this diagram · 3 diagrams in section
