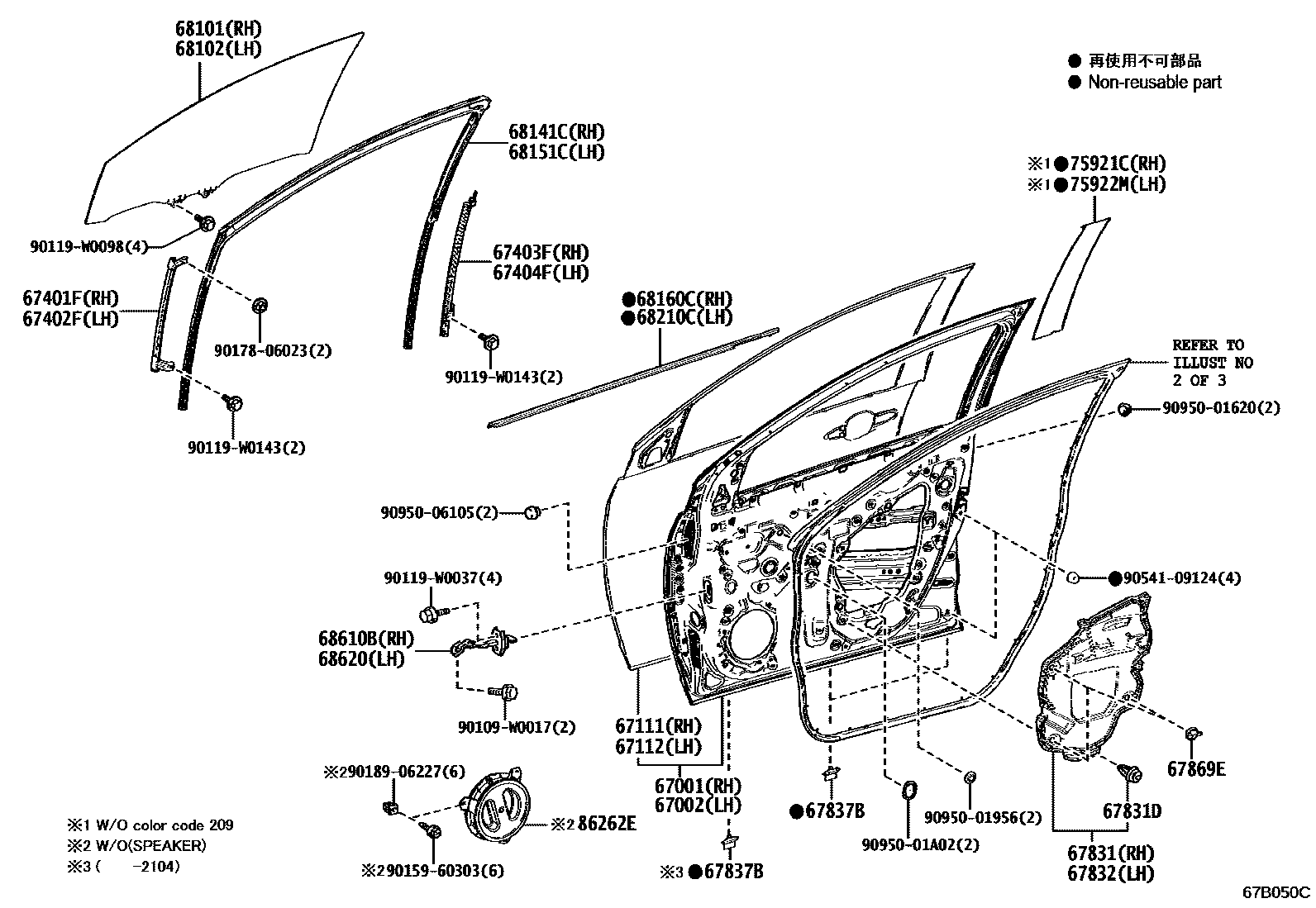

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1WEATHERSTRIP 0003 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-K0020iMXPH1#..N,S,V;MXPH11..R..FRP202401

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-K0020iMXPH1#..N,S,V;MXPH11..R..FRP202401

67111PANEL, FRONT DOOR, OUTER RH

main67111-K0050iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

67112PANEL, FRONT DOOR, OUTER LH

main67112-K0050iKSP211..G202007-202105

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-K0010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-K0010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-K0030iMXPH1#..N,S,V;MXPH11..R..FRP202401

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-K0010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×8iKSP211..G202007-202105

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-K0010iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

67837BSEAL, FRONT DOOR DUST PROOF

main67837-48050×6iKSP211,MXPA11,MXPH11202007-202104

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-47010×6iMXPH1#..N,S,V;MXPH11..R..FRP202401

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0D060iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202111-202401

main68101-K0010iKSP211..N,R;MXPA11,MXPH11202007-202110

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0D060iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main68102-K0010iKSP211..G202007-202105

68141CRUN, FRONT DOOR GLASS, RH

main68141-K0010iMXPH1#..N,S,V;MXPH11..R..FRP202401

68151CRUN, FRONT DOOR GLASS, LH

main68151-K0010iKSP211..G202007-202105

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-K0010supersedes 68160-K0020iKSP211,MXPH11..RHD..R202007-202205

main68160-K0011iMXPH11..G202209

LW PACKAGE

main68160-K0020iMXPA11..RHD..G202007-202205

main68160-K0021iMXPA11,MXPH11..G202303

main68160-K0050iMXPH1#..S,V202401

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-K0010supersedes 68210-K0020iMXPA11..N;KSP211,MXPH11..RHD..N;KSP211,MXPH11..LHD..(N,R)202007-202208

LW PACKAGE

main68210-K0011iMXPH11..S202401

LW PACKAGE

main68210-K0020iMXPA11..RHD..G202007-202205

main68210-K0021iMXPA11,MXPH11..G202303

main68210-K0050iMXPA11..S,V202007

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0D250iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main68610-K0010iMXPA11..N,S,V;KSP211..RHD..N;MXPA11..LHD..G;MXPH11..LHD..R;MXPH11..G,N,S,V;KSP211..LHD..(N,R)202007-202308

68620CHECK ASSY, FRONT DOOR, LH

main68610-0D250iMXPA11..6F..N;MXPH11..N,S,V;MXPH11..R..FRP;MXPA11..LHD..CVT..N202309-202401

main68610-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0D230iMXPH1#..N,S,V;MXPH11..R..FRP202401

0 OR 1PIECE,REF.ILL.

main75921-K0010iKSP211..N;MXPH11..G,N,S;KSP211,MXPH11..LHD..R202007-202110

0 OR 1PIECE,REF.ILL.

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0D230iKSP211,MXPA11,MXPH11202111

0 OR 1PIECE,REF.ILL.

main75922-K0010iKSP211..N;MXPH11..G,N,S;KSP211,MXPH11..LHD..R202007-202110

0 OR 1PIECE,REF.ILL.

86262ECOVER, SPEAKER, FRONT

main86262-02030×2iKSP211,MXPH11..RHD..R202007-202205

LW PACKAGE

90109W0017

main90109-W0017

90119W0037

main90119-W0037

90119W0098

main90119-W0098

90119W0143

main90119-W0143

9015960303

main90159-60303

9017806023

main90178-06023

9018906227

main90189-06227

9054109124

main90541-09124

9095001620

main90950-01620

9095001956

main90950-01956

9095001A02

main90950-01A02

9095006105

main90950-06105

36 parts on this diagram · 3 diagrams in section
