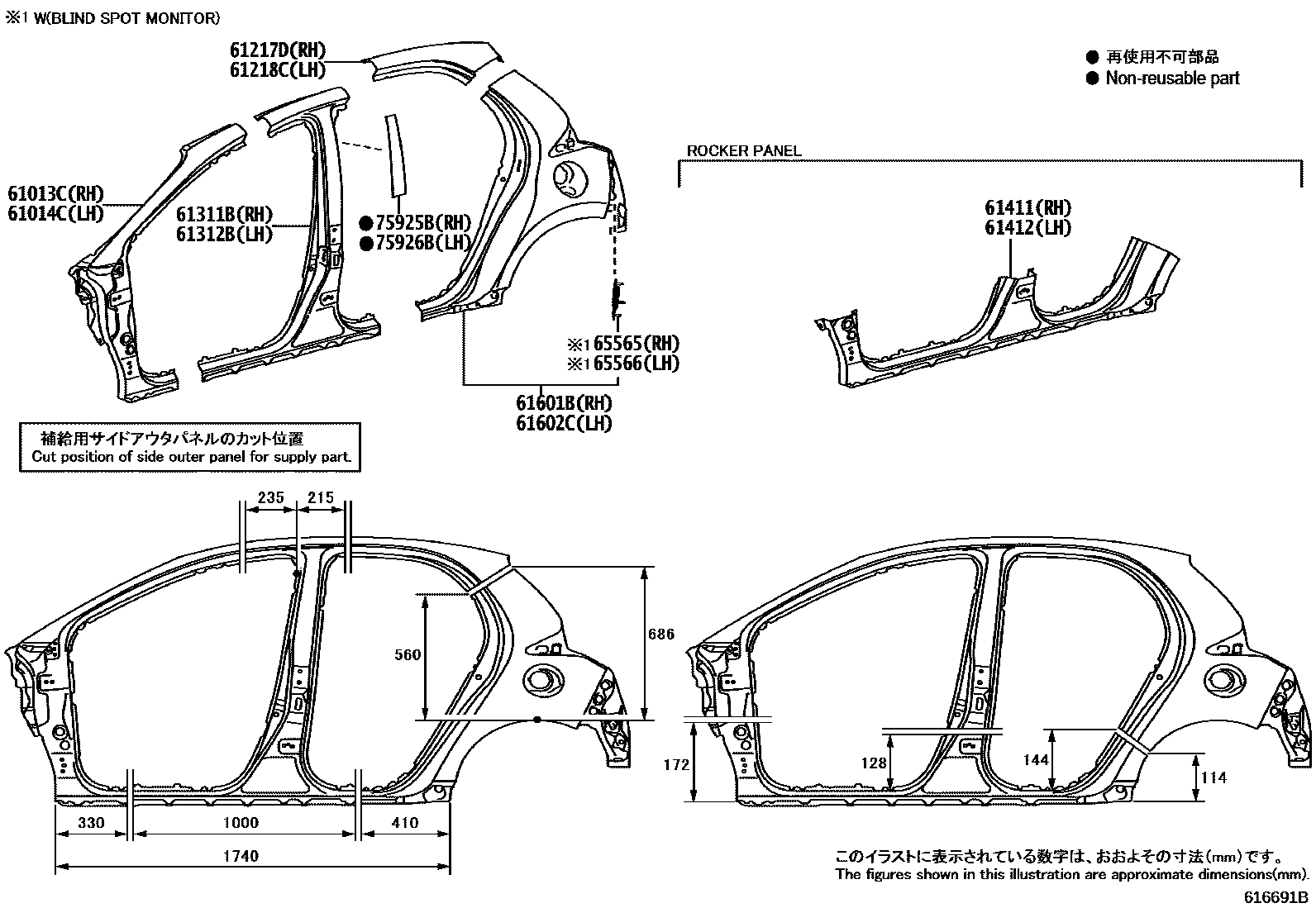

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, LH 0003 1INNER PANEL, RH

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-0D010iKSP211..G202007-202105

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-0D010iKSP211..G202007-202105

61217DRAIL, ROOF SIDE, OUTER NO.4 RH

main61217-0D010iKSP211..G202007-202105

61218CRAIL, ROOF SIDE, OUTER NO.4 LH

main61218-0D010iKSP211..G202007-202105

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0D160iKSP211..G202007-202105

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0D160iKSP211..G202007-202105

61411PANEL, ROCKER, OUTER RH

main61411-0D180iKSP211..G202007-202105

61412PANEL, ROCKER, OUTER LH

main61412-0D180iKSP211..G202007-202105

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-0D360iKSP211..G202007-202105

main61601-0D350iMXPH11..G;MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

BLIND SPOT MONITOR-WITH

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-0D360iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main61602-0D350iMXPH11..G;MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

BLIND SPOT MONITOR-WITH

65565PATCH, SIDE PANEL REAR END, RH

main65565-02070iKSP211..LHD..G202007-202105

BLIND SPOT MONITOR-WITH

65566PATCH, SIDE PANEL REAR END, LH

main65565-02070iKSP211..LHD..G202007-202105

BLIND SPOT MONITOR-WITH

75925BTAPE, BLACK OUT, NO.3 RH

main75925-K0010iKSP211,MXPA11,MXPH11202007

75926BTAPE, BLACK OUT, NO.3 LH

main75926-K0010iKSP211,MXPA11,MXPH11202007

14 parts on this diagram · 3 diagrams in section
