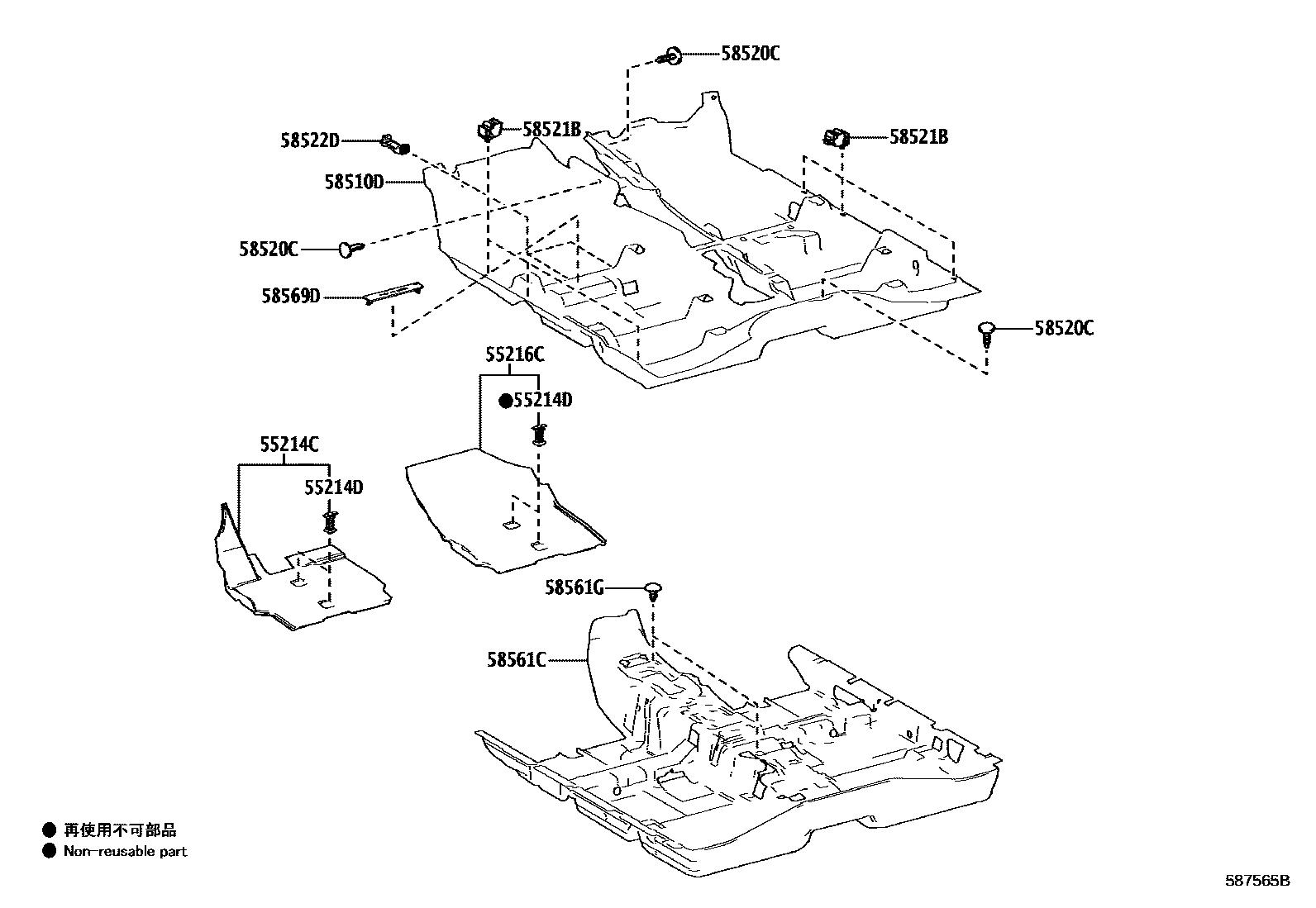

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR CARPET 0003 1FLOOR CARPET 0004 1FLOOR CARPET 0005 1FLOOR MAT 0006 1FLOOR MAT

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-K0010iKSP211..RHD..N;MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

main55214-K0020iMXPH1#..RHD..(N,S,V)202401

main55214-0H050supersedes 55214-0H060iKSP211..CZEP;MXPA11..(G,S)..CZEP;MXPH11..(G,R)..CZEP202111

COLD AREA SPEC-WITH(EUROPE A RANK)

main55214-K0050supersedes 55214-K0030iMXPH1#..LHD..(N,R,S,V)..FRP202401

COLD AREA SPEC-WITH(EUROPE A RANK)

55214DCLIP(FOR DASH PANEL INSULATOR PAD)

main58198-52020×4iKSP211..G202007-202105

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

main55216-0H050supersedes 55216-0H060iMXPH1#..(N,S)..CZEP202401

COLD AREA SPEC-WITH(EUROPE A RANK)

main55216-K0040supersedes 55216-K0020iMXPA11..LHD..N..FRP;MXPH11..LHD..(N,R,S,V)..FRP202007-202401

COLD AREA SPEC-WITH(EUROPE A RANK)

58510DCARPET ASSY, FLOOR, FRONT

main58510-0DE20-C0iKSP211,MXPA11..(N,R,S)..CZEP202309

BLACK,TRIM1#

main58510-0DE21-C0iMXPA11..N..CZEP202404-202407

BLACK,TRIM2#

main58510-0DF50-C0iMXPH11..(N,R,S)..CZEP202309

BLACK,TRIM2#

main58510-0DF51-C0iMXPH1#..(N,S)..CZEP202404

BLACK,TRIM2#

main58510-K0030-C3iKSP211,MXPA11..RHD..N202007

BLACK,TRIM1#,2#,4#

main58510-K0031-C3iMXPA11..RHD..6F..N202404-202407

BLACK,TRIM2#

main58510-K0040-C2iMXPH11..RHD..N202007-202401

BLACK,TRIM1#,2#,4#

main58510-K0041-C2iMXPH1#..RHD..(N,S,V)202404

BLACK,TRIM2#

main58510-K0050-C2iKSP211,MXPA11..LHD..(R,S,V)..FRP202007

BLACK,TRIM1#,2#,4#

main58510-K0051-C2iMXPA11..LHD..N..FRP202404-202407

BLACK,TRIM2#

main58510-K0060-C2iMXPH11..(R,S)..CZEP202007-202309

BLACK,TRIM2#

main58510-K0061-C2iMXPH1#..LHD..(N,R,S,V)..FRP202404

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23×2iMXPA11..S,V;KSP211..LHD..R202007

BLACK,TRIM1#,2#,4#

58521BHOOK, FLOOR CARPET

main58521-02160×6iMXPH1#..N,S,V;MXPH11..R..FRP202401

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030×2iMXPH1#..N,S,V;MXPH11..R..FRP202401

58561CSILENCER, FRONT FLOOR, NO.1

main58561-K0080iMXPA11..RHD..6F..N202401-202407

main58561-K0130iMXPH11..RHD202007

main58561-K0100supersedes 58561-K0090iMXPA11..LHD..N202401-202407

COLD AREA SPEC-WITH(EUROPE A RANK)

main58561-K0140supersedes 58561-K0160iMXPH11..LHD202007

COLD AREA SPEC-WITH(EUROPE A RANK)

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90467-07042-C4×2iMXPH11..N,S;MXPH11..R..FRP202401

BLACK

sub90467-06175

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02110-C0iKSP211..N;MXPA11..RHD..CVT..N202007

BLACK,TRIM2#

10 parts on this diagram · 6 diagrams in section
