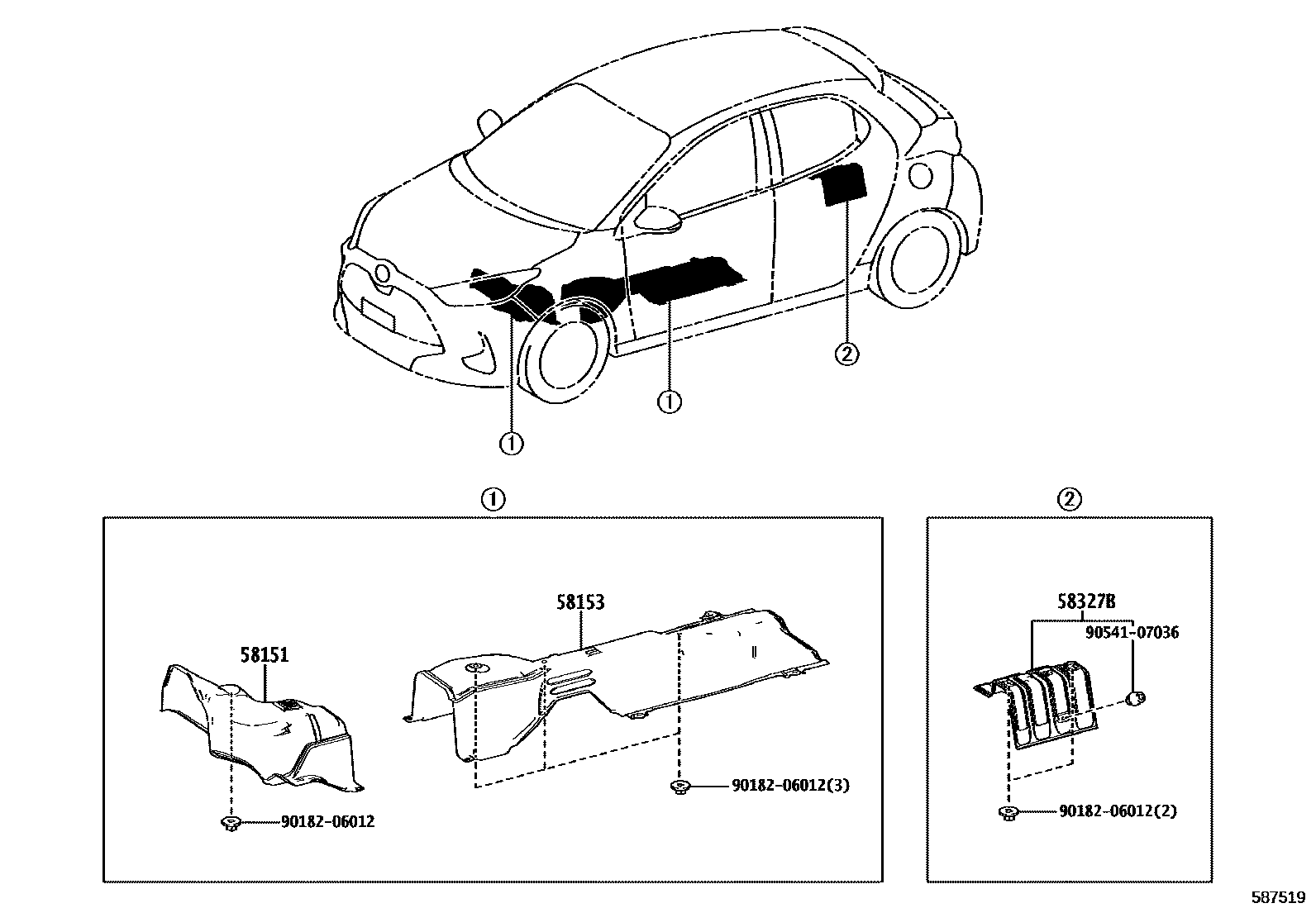

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-K0010iMXPA11..RHD..G;MXPH11..RHD..R202007-202407

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0D111iMXPA11..V202203-202401

main58153-K0010iKSP211..G202007-202407

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-K0010iKSP211..G202007-202407

9018206012

main90182-06012

9054107036

main90541-07036

5 parts on this diagram · 1 diagram in section
