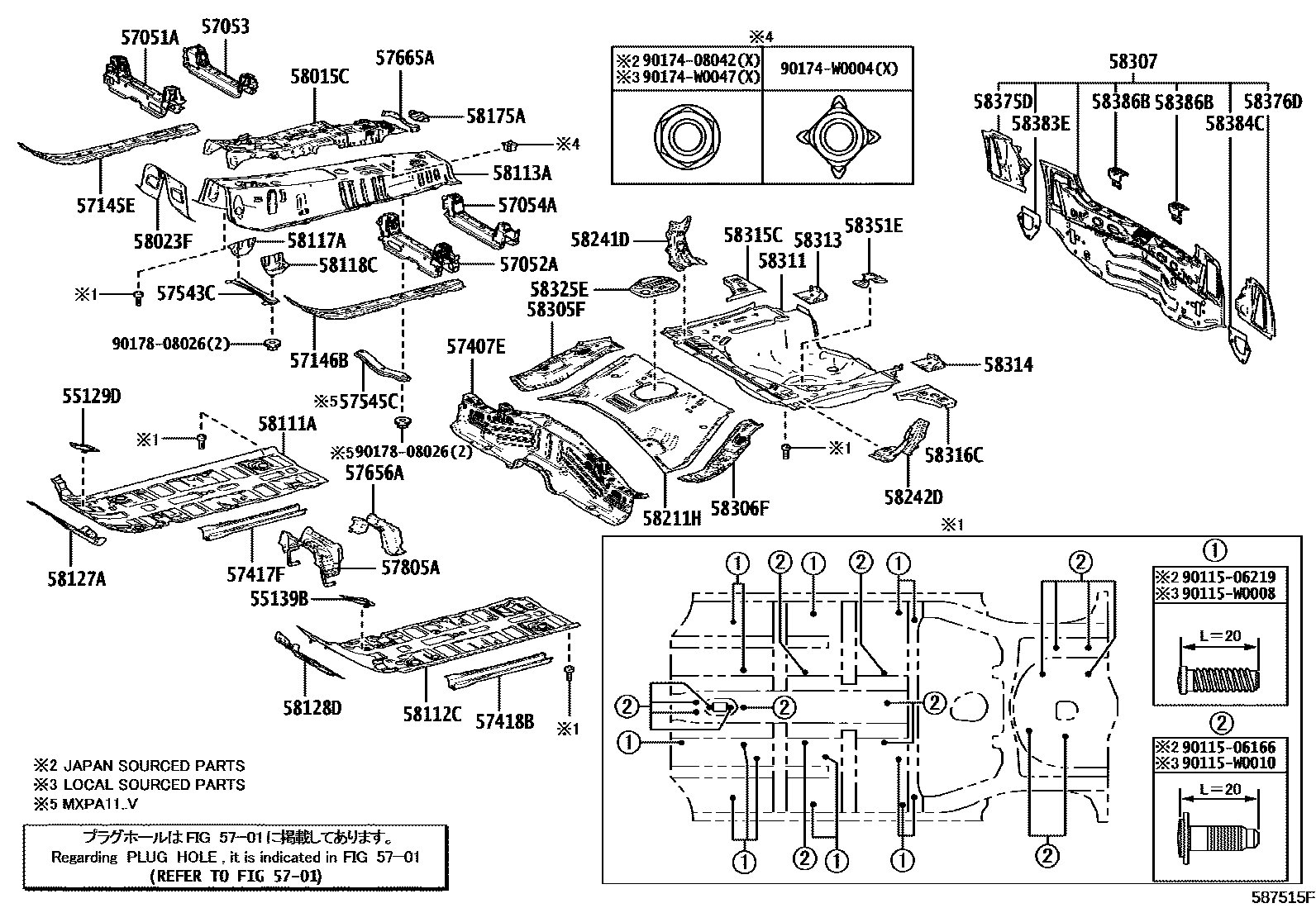

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55129DCOVER, DASH PANEL HOLE, RH

main55129-K0010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

55139BCOVER, DASH PANEL HOLE, LH

main55139-K0010iKSP211..G202007-202105

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-K0010iKSP211..G202007-202105

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-K0010iKSP211..G202007-202105

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-0D010iKSP211..G202007-202105

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-0D010iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

57145EREINFORCEMENT, FRONT SIDE MEMBER, REAR RH

main57145-K0010iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

57146BREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-K0010iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-K0010iKSP211..G202007-202105

main57407-K0020iMXPH11..N,S,V;MXPH11..LHD..R..FRP202007-202401

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-K0010iKSP211..G202007-202105

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-K0010iKSP211..G202007-202105

57543CBRACE, CENTER FLOOR, NO.1

main57543-K0010iMXPH1#..N,S,V;MXPH11..R..FRP202401

57545CBRACE, CENTER FLOOR, NO.2

main57545-0D020iMXPH1#..V202401

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-0D150iMXPH11..V202203-202401

main57656-K0010iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

main57665-K0010iKSP211..G202007-202105

57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1

main57805-0D160iMXPA11..N..CZEP;MXPH11..(N,S)..CZEP202111-202401

main57805-K0010iKSP211..N..FRP;MXPH11..G..FRP;MXPA11..LHD..G..FRP;KSP211..LHD..R..FRP;MXPA11..6F..(S,V)..FRP;MXPA11..RHD..CVT..(N,S);MXPA11..LHD..CVT..S..FRP202007

58015CPANEL SUB-ASSY, FRONT FLOOR HOUSING

main58015-K0030iKSP211..G202007-202105

58023FBRACKET SUB-ASSY, FLEXIBLE HOSE

main58023-0D010iMXPA11..N..CZEP202401-202407

main58023-K0010iMXPA11..6F..N..FRP;MXPA11..LHD..CVT..N..FRP202401-202407

58111APAN, FRONT FLOOR, RH

main58111-K0010iMXPH1#..N,S,V;MXPH11..R..FRP202401

58112CPAN, FRONT FLOOR, LH

main58112-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

58113APANEL, FRONT FLOOR, CENTER

main58113-0D925iKSP211..RHD..R;MXPA11..RHD..G202007-202205

main58113-K0903iMXPH1#..N,S,V;MXPH11..R..FRP202401

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-K0010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-K0010iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-K0010iKSP211..G202007-202105

58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-K0010iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-0D070iKSP211..RHD..N;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

58211HPAN, CENTER FLOOR

main58211-K0010iKSP211..G202007-202105

main58211-K0020iMXPH1#..N,S,V;MXPH11..R..FRP202401

58241DGUSSET, WHEELHOUSE INNER, FRONT RH

main58241-K0010iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

58242DGUSSET, WHEELHOUSE INNER, FRONT LH

main58242-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-K0010iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main58305-K0020iMXPH11..G;MXPH11..R..CZEP202007

sub58305-52120

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-K0010iKSP211..RHD..N;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

main58306-K0020iMXPH1#..N,S,V;MXPH11..R..FRP202401

sub58306-52160

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-K0051iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

58311PAN, REAR FLOOR

main58311-0D310iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202012-202205

main58311-0D311iMXPH1#..N,S,V;MXPH11..R..FRP202410

main58311-K0010iKSP211,MXPA11,MXPH11202007-202011

58313PANEL, REAR FLOOR SIDE, RH

main58313-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

58314PANEL, REAR FLOOR SIDE, LH

main58313-K0010iKSP211..G202007-202105

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-K0010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-K0010iKSP211..RHD..R;MXPA11..RHD..G202007-202205

main58325-K0020iMXPH1#..N,S,V;MXPH11..R..FRP202401

58351EBRACKET, SPARE WHEEL CLAMP

main58351-02020iKSP211..G202007-202105

58375DREINFORCEMENT, BODY LOWER BACK PANEL, RH

main58391-K0010iKSP211..G202007-202105

58376DREINFORCEMENT, BODY LOWER BACK, LH

main58392-K0010iKSP211..G202007-202105

58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH

main58383-52110iKSP211..G202007-202105

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-52230iKSP211..G202007-202105

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02160×2iKSP211..G202007-202105

9011506166

main90115-06166

9011506219

main90115-06219

90115W0008

main90115-W0008

90115W0010

main90115-W0010

9017408042

main90174-08042

90174W0004

main90174-W0004

90174W0047

main90174-W0047

9017808026

main90178-08026

53 parts on this diagram · 2 diagrams in section
