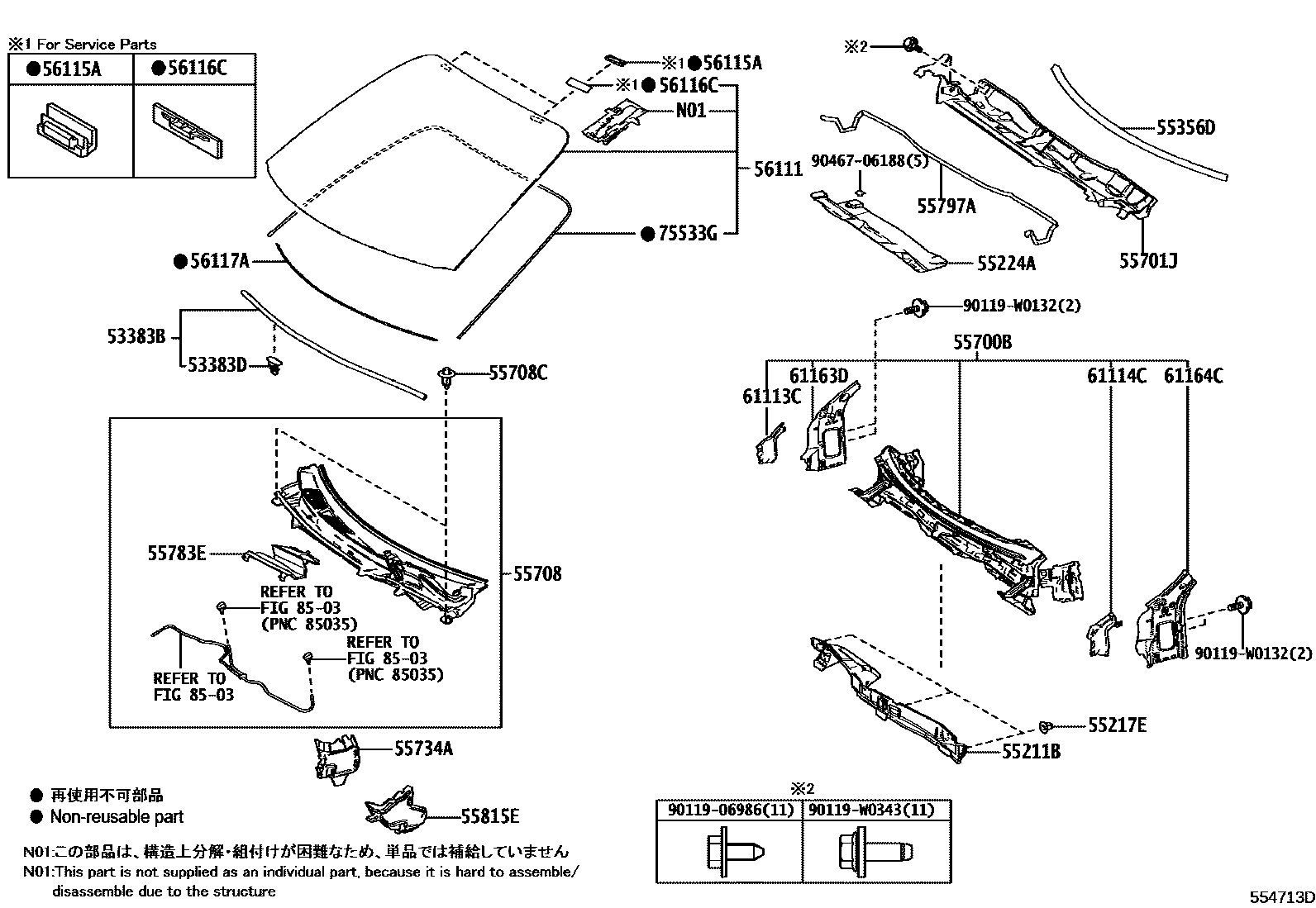

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55211BSILENCER, FRONT PANEL
55217ERETAINER, DASH PANEL SILENCER
main55217-51010×3iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007
55224AINSULATOR, DASH PANEL, OUTER NO.2
LW PACKAGE&
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
COLD AREA SPEC-WITH(EUROPE A RANK)
55708CCLIP, COWL TOP VENTILATOR LOUVER
55734APLATE, WATER GUARD, RH
main55735-K0020iKSP211..LHD..(N,R);MXPH11..(G,R)..CZEP;MXPH11..LHD..G..FRP;MXPA11..LHD..(G,S,V)202007
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55797ASEAL, COWL WATER EXTRACT
55815ESEAL, FRONT VENTILATOR, NO.1
main55815-K0020iKSP211..LHD..(N,R);MXPH11..(G,R)..CZEP;MXPH11..LHD..G..FRP;MXPA11..LHD..(G,S,V)202007
56111GLASS, WINDSHIELD
WINDSHIELD GLASS-GREEN&WINDSHIELD WIPER CONTROL-INTERMITTENT(TIME ADJUSTMENT) & MIST
WINDSHIELD GLASS-GREEN&WINDSHIELD WIPER CONTROL-INTERMITTENT(TIME ADJUSTMENT) & MIST
WINDSHIELD GLASS-GREEN&WINDSHIELD WIPER CONTROL-INTERMITTENT(TIME ADJUSTMENT) & MIST
WINDSHIELD GLASS-GREEN&WINDSHIELD WIPER CONTROL-INTERMITTENT(TIME ADJUSTMENT) & MIST
WINDSHIELD GLASS-GREEN&WINDSHIELD WIPER CONTROL-INTERMITTENT(TIME ADJUSTMENT) & MIST
sub56101-0DE20
WINDSHIELD GLASS-GREEN(ACOUSTIC)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST
ACTIVE SAFETY PACKAGE-WITHOUT
ACTIVE SAFETY PACKAGE-WITHOUT
ACTIVE SAFETY PACKAGE-WITHOUT&WINDSHIELD GLASS-GREEN
ACTIVE SAFETY PACKAGE-WITHOUT&WINDSHIELD GLASS-GREEN
UKRAINE SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&WINDSHIELD GLASS-GREEN
WINDSHIELD GLASS-GREEN(ACOUSTIC)
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&HEAD-UP DISPLAY-WITH
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&HEAD-UP DISPLAY-WITH
ACTIVE SAFETY PACKAGE-WITHOUT&WINDSHIELD GLASS-GREEN&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&HEAD-UP DISPLAY-WITH
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR) & MIST
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&HEAD-UP DISPLAY-WITH
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&HEAD-UP DISPLAY-WITH
ACTIVE SAFETY PACKAGE-WITHOUT
ACTIVE SAFETY PACKAGE-WITHOUT&WINDSHIELD GLASS-GREEN
ACTIVE SAFETY PACKAGE-WITHOUT&WINDSHIELD GLASS-GREEN&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&HEAD-UP DISPLAY-WITH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=1234,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&HEAD-UP DISPLAY-WITH
61113CPANEL, SIDE, INNER RH
61114CPANEL, SIDE, INNER LH
61163DPILLAR, FRONT BODY, LOWER INNER RH
61164CPILLAR, FRONT BODY, LOWER INNER LH
75533GMOULDING, WINDSHIELD, OUTSIDE
8503
9011906986
main90119-06986
90119W0132
main90119-W0132
90119W0343
main90119-W0343
9046706188
main90467-06188
28 parts on this diagram · 2 diagrams in section
