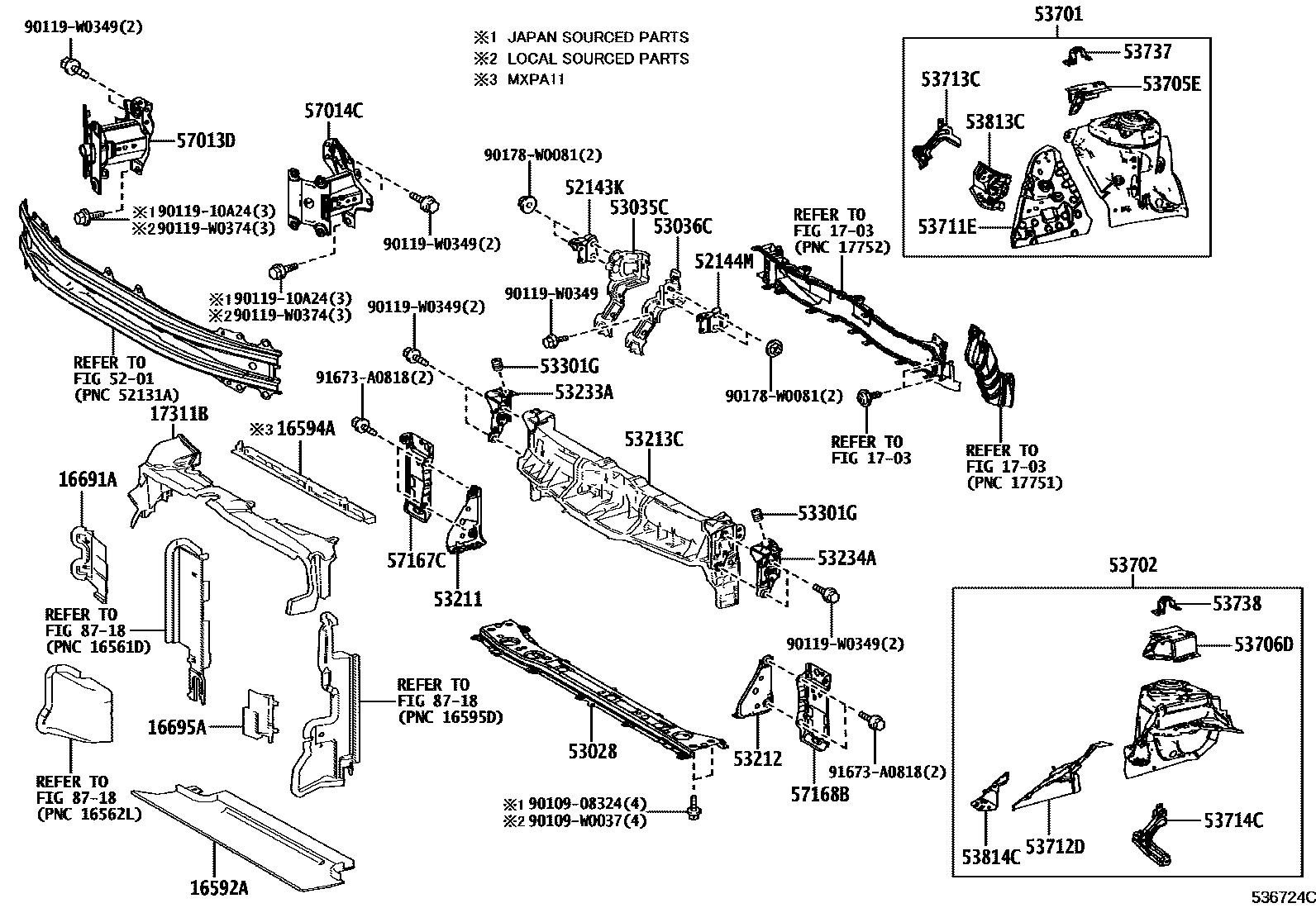

FRONT FENDER APRON & DASH PANEL

0001 1RADIATOR SUPPORT & FENDER APR0002 1RADIATOR SUPPORT & FENDER APR0003 1RADIATOR SUPPORT & FENDER APR0004 1RADIATOR SUPPORT & FENDER APR0005 1DASH PANEL 0006 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-K0020iM15#,1KRFE..KSP211,MXPA11,MXPH11202007-202407

16594AGUIDE, RADIATOR AIR, NO.2

main16594-K0030iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202407

main16594-K0040iM15AFXE..MXPH11202007

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-K0020iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202007-202407

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-K0020iM15#,1KRFE..KSP211,MXPA11,MXPH11202007-202407

1703

17311BDUCT, AIR INLET, NO.1

main17301-F3010iM15#,1KRFE..KSP211,MXPA11,MXPH11202007-202407

5201

52143KARM, FRONT BUMPER, LOWER RH

main52143-K0030iMXPA11..RHD..G;KSP211,MXPH11..RHD..R¥930202007-202407

52144MARM, FRONT BUMPER, LOWER LH

main52144-K0030iKSP211..G¥930202007-202407

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-0D130iKSP211..G202007-202407

53035CBRACKET SUB-ASSY, FRONT END PANEL MOUNTING, RH

main53035-K0020iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

53036CBRACKET SUB-ASSY, FRONT END PANEL MOUNTING, LH

main53036-K0020iKSP211..G202007-202407

53211SUPPORT, RADIATOR, RH

main53211-K0010iKSP211..G¥1,600202007-202407

53212SUPPORT, RADIATOR, LH

main53212-K0010iKSP211..G¥1,600202007-202407

53213CSUPPORT, RADIATOR, UPPER FRONT

main53213-K0010iKSP211..G¥8,100202007-202108

sub53213-52180¥7,400

sub53213-K0011

main53213-K0011iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202109-202407

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-0D090iMXPH1#..N,S,V;MXPH11..R..FRP202401-202407

main53233-K0010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)¥1,220202007-202401

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-0D090iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main53234-K0010iKSP211..G¥1,220202007-202401

53301GCUSHION, HOOD BUMPER

main90541-W0003iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP¥160202007-202407

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0D310iMXPA11..N..CZEP202111-202407

main53701-K0020iMXPA11..6F..N..FRP;MXPA11..LHD..CVT..N..FRP202007-202407

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0D300iKSP211..CZEP;MXPA11..(G,S)..CZEP;MXPH11..(G,R)..CZEP202111-202407

main53702-K0020iMXPH1#..(N,R,S,V)..FRP202007-202407

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-0D010iKSP211..CZEP;MXPA11..(G,S)..CZEP;MXPH11..(G,R)..CZEP202111-202407

main53705-K0010iMXPA11..6F..N..FRP;MXPA11..LHD..CVT..N..FRP¥1,320202007-202407

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-0D010iMXPH1#..(N,S)..CZEP202111-202407

main53706-K0010iMXPA11..6F..N..FRP;MXPH11..LHD..R..FRP;MXPH11..(N,S,V)..FRP;MXPA11..LHD..CVT..N..FRP¥1,320202007-202407

53711EAPRON, FRONT FENDER, RH

main53711-K0010iKSP211..G¥3,220202007-202407

53712DAPRON, FRONT FENDER, LH

main53712-K0010iKSP211..G¥3,220202007-202407

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-K0020iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-K0020iKSP211..G202007-202407

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-K0010iKSP211..G¥360202007-202407

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-K0010iKSP211..G¥360202007-202407

53813CEXTENSION, FRONT FENDER, RH

main53813-0D010iMXPA11..N..CZEP202111-202407

main53813-K0010iKSP211..N..FRP;MXPH11..G..FRP;MXPA11..LHD..G..FRP;KSP211..LHD..R..FRP;MXPA11..6F..(S,V)..FRP;MXPA11..RHD..CVT..(N,S);MXPA11..LHD..CVT..S..FRP¥1,530202007-202407

53814CEXTENSION, FRONT FENDER, LH

main53814-0D010iMXPA11..N..CZEP202111-202407

main53814-K0010iMXPA11..6F..N..FRP;MXPA11..LHD..CVT..N..FRP¥1,390202007-202407

57013DBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-K0010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)¥6,500202007-202407

57014CBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-K0010iKSP211..G¥4,110202007-202407

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-K0010iKSP211..G¥1,320202007-202407

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-K0010iKSP211..G¥1,320202007-202407

8718

9010908324

main90109-08324¥80

90109W0037

main90109-W0037

9011910A24

main90119-10A24¥140

90119W0349

main90119-W0349

90119W0374

main90119-W0374

90178W0081

main90178-W0081

91673A0818

main91673-A0818¥80

42 parts on this diagram · 6 diagrams in section
