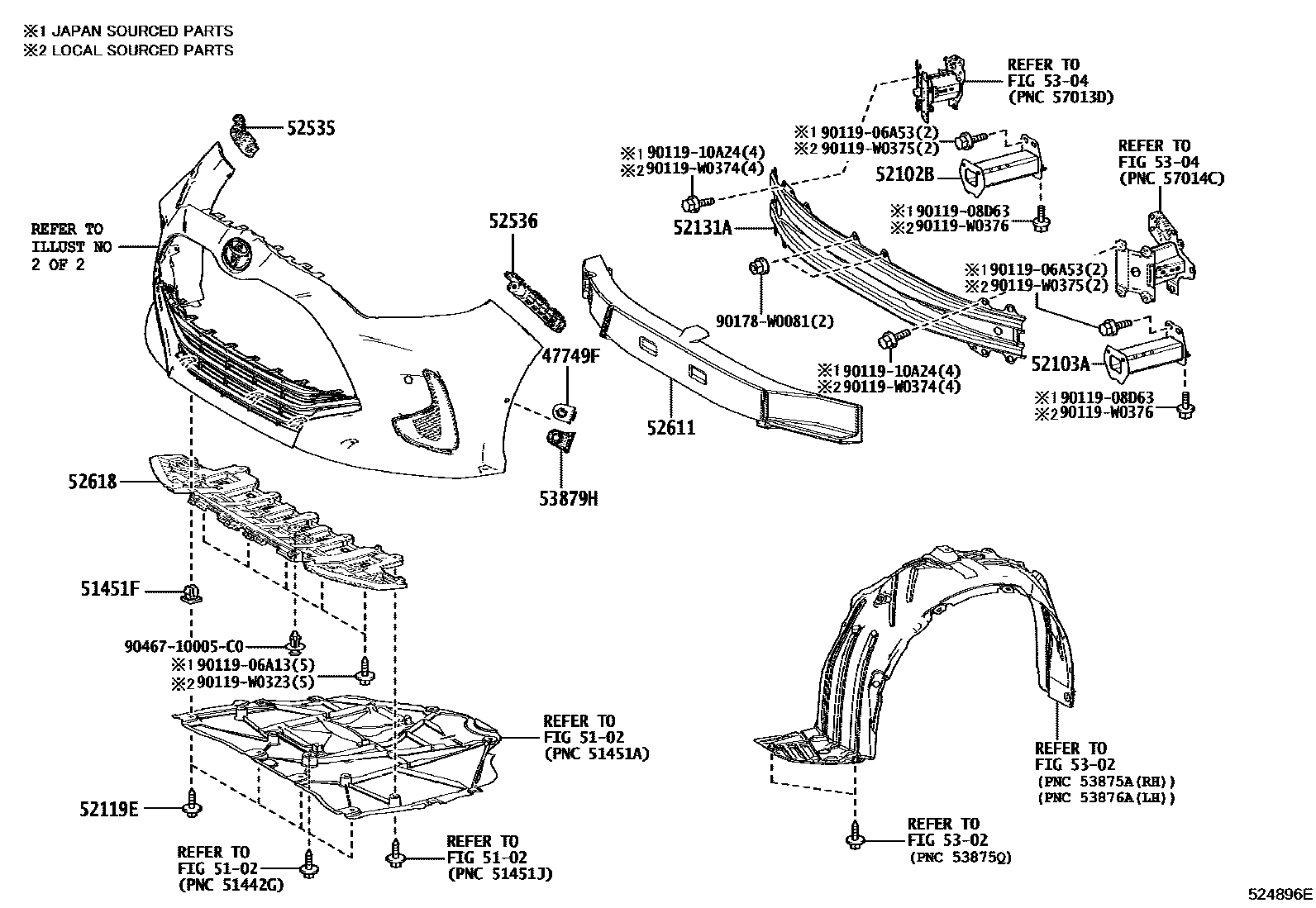

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-02040×2iKSP211,MXPA11,MXPH11202007

(L)

main47749-33030×2iMXPH1#..N,S,V;MXPH11..R..FRP202401

(J)

5102

51451FGROMMET, NO.1

main90189-06237×4iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-K0010iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-K0010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

52119ESCREW, NO.2

main90159-60477×4iKSP211,MXPA11,MXPH11202007

(J)

main90159-W0026×4iMXPH1#..N,S,V;MXPH11..R..FRP202401

(L)

52131AREINFORCEMENT, FRONT BUMPER

main52131-K0020iKSP211..G202007-202105

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-K0010iKSP211,MXPA11,MXPH11202007

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-K0010iKSP211,MXPA11,MXPH11202007

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0D210iMXPH1#..(N,R,S,V)..FRP202401-202504

main52611-K0010iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

52618ABSORBER, FRONT BUMPER, LOWER

main52618-K0010iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

5302

5304

53879HRETAINER, FRONT FENDER LINER

main53879-02160×2supersedes 53879-02160iMXPH1#..N,S,V;MXPH11..R..FRP202401

(L)

main53879-33030×2iKSP211..G,N;MXPA11,MXPH11;KSP211..R..CZEP202007

(J)

9011906A13

main90119-06A13

9011906A53

main90119-06A53

9011908D63

main90119-08D63

9011910A24

main90119-10A24

90119W0323

main90119-W0323

90119W0374

main90119-W0374

90119W0375

main90119-W0375

90119W0376

main90119-W0376

90178W0081

main90178-W0081

9046710005C0

main90467-10005C0

24 parts on this diagram · 2 diagrams in section
