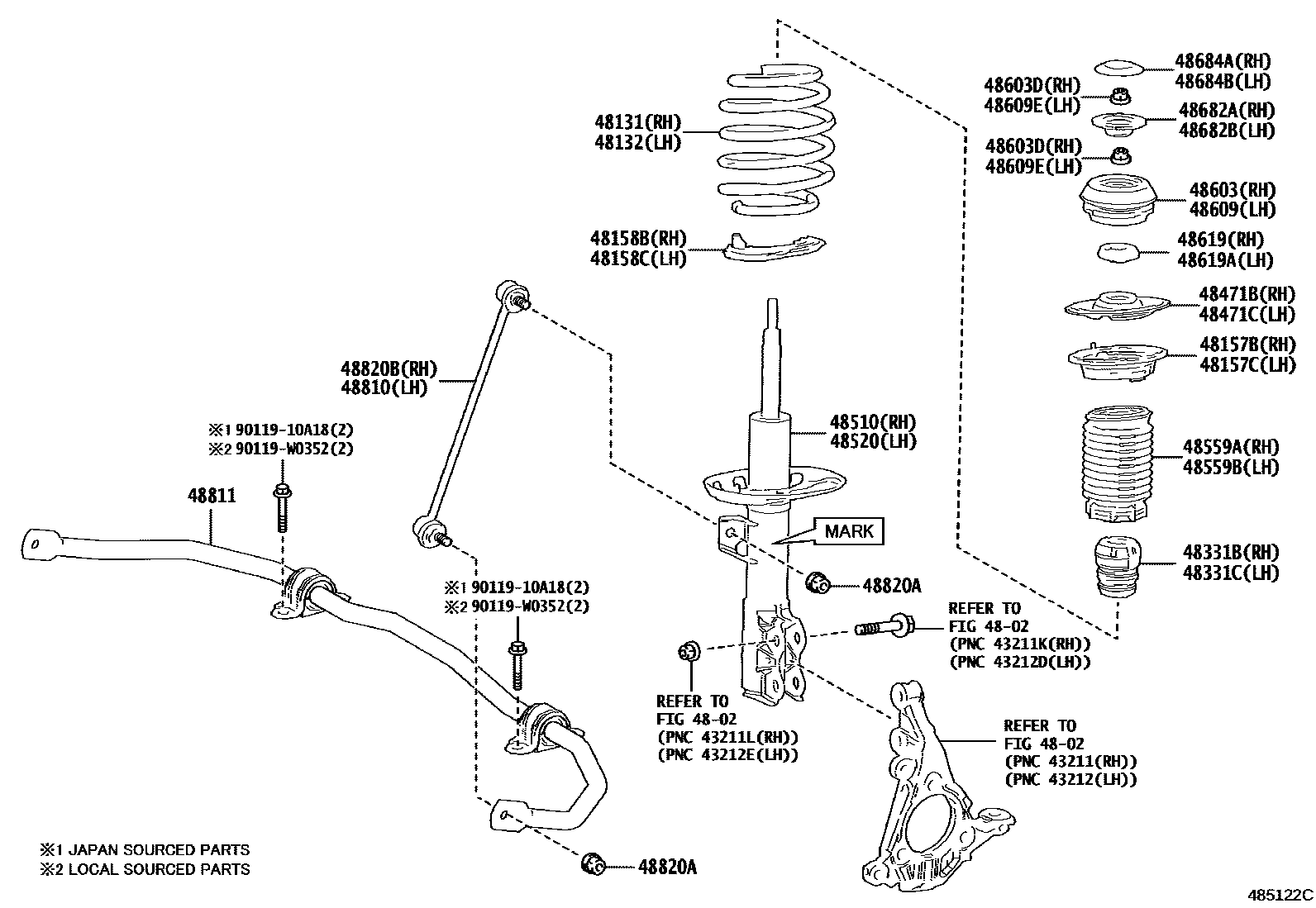

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0DG90iMXPA11..V202203

main48131-0DJ20iMXPH11..V202203-202401

main48131-K0070iKSP211..RHD..R202007-202205

main48131-K0080iMXPA11..6F..N202007-202401

main48131-K0090iMXPH11..N,S;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

main48131-K0110iKSP211..LHD..G202007-202105

EGYPT SPEC

main48131-K0130iMXPH11..LHD..(N,R)..FRP202401

TUNISIA SPEC

48132SPRING, FRONT COIL, LH

main48131-0DG90iMXPA11..V202203

main48131-0DJ20iMXPH11..V202203-202401

main48131-K0070iKSP211..RHD..R202007-202205

main48131-K0080iMXPA11..6F..S;MXPA11..LHD..6F..G202007

main48131-K0090iMXPH11..N,S;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

main48131-K0110iKSP211..LHD..FRP202205

TUNISIA SPEC

main48131-K0130iMXPA11..LHD..CVT..N..FRP;MXPH11..LHD..(N,R,S)..FRP202007-202401

EGYPT SPEC

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-K0020iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-K0020iKSP211..G202007-202105

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-K0020iMXPH1#..N,S,V;MXPH11..R..FRP202401

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-K0020iKSP211..G202007-202105

48331BBUMPER, FRONT SPRING, RH

main48331-0D240iMXPH11..V202203-202401

main48331-K0030iKSP211..G202007-202105

48331CBUMPER, FRONT SPRING, LH

main48331-0D240iMXPH11..V202203-202401

main48331-K0030iKSP211..G202007-202105

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-K0020iKSP211..G202007-202105

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-K0020iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-0DF30iMXPA11..V202203

MARK 48510-0DF30

main48510-0DG90iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

MARK 48510-0DG90

main48510-0DJ40iMXPH1#..N,S;MXPH11..R..FRP202401

MARK 48510-0DJ40

main48510-0DJ60iMXPH1#..V202401

MARK 48510-0DJ60

main48510-K0070iKSP211..G202007-202105

48510-K0070

main48510-K0080iMXPA11..LHD..(G,S);MXPA11..RHD..6F..S;MXPA11..RHD..CVT..(N,S)202007

48510-K0080

main48510-K0090iMXPH11..RHD..R202007-202205

48510-K0090

main48510-K0120iMXPA11..LHD..CVT..N..FRP;MXPH11..LHD..(N,R,S)..FRP202007-202401

48510-K0120,EGYPT SPEC

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-0D480iMXPH11..V202203-202401

MARK 48520-0D480

main48520-0D640iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

MARK 48520-0D640

main48520-0D660iMXPH1#..N,S;MXPH11..R..FRP202401

MARK 48520-0D660

main48520-0D680iMXPH1#..V202401

MARK 48520-0D680

main48520-K0070iKSP211..G202007-202105

48520-K0070

main48520-K0080iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202401

48520-K0080

main48520-K0090iMXPH11..G;MXPH11..R..CZEP202007

48520-K0090

main48520-K0120iKSP211..LHD..G202007-202105

48520-K0120,EGYPT SPEC

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-K0020iMXPH1#..N,S,V;MXPH11..R..FRP202401

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-K0020iKSP211..G202007-202105

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-K0021iKSP211..G202007-202105

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-W0015×2iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

(L)

main90179-12145×2iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

(J)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-K0021iKSP211..G202007-202105

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-W0015×2iKSP211..G202007-202105

(L)

main90179-12145×2iMXPH1#..N,S,V;MXPH11..R..FRP202401

(J)

48619BEARING, STRUT MOUNTING, RH

main48619-K0010iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

48619ABEARING, STRUT MOUNTING, LH

main48619-K0010iKSP211..G202007-202105

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-K0020iKSP211..G202007-202105

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-K0020iKSP211..G202007-202105

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-K0010iKSP211..G202007-202105

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-K0010iKSP211..G202007-202105

48810LINK ASSY, FRONT STABILIZER, LH

main48820-K0010iKSP211..G202007-202105

48811BAR, STABILIZER, FRONT

main48804-K0030iKSP211..G202007-202105

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-W0051×4iKSP211..G202007-202105

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-K0010iKSP211..G202007-202105

9011910A18

main90119-10A18

90119W0352

main90119-W0352

31 parts on this diagram · 1 diagram in section
