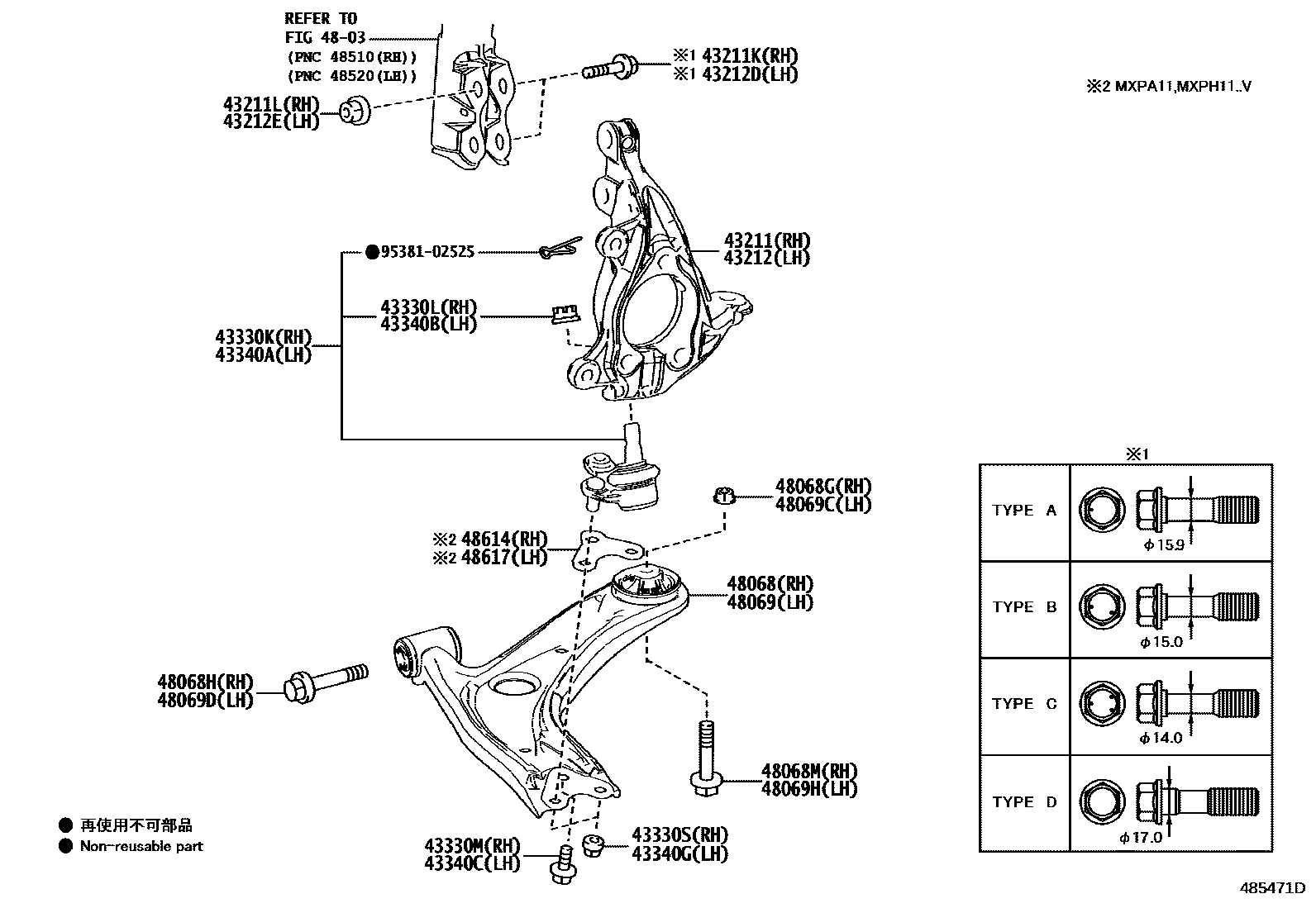

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-02410iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17013iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

OD=15.9,TYPE A:REFER ILLUST.

main90105-17014iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

OD=15,TYPE B:REFER ILLUST.

main90105-17015iMXPH1#..N,S,V;MXPH11..R..FRP202007-202407

OD=14,TYPE C:REFER ILLUST.

main90105-17020iKSP211..N,R;MXPA11,MXPH11202007-202106

OD=17,(J),TYPE D:REF ILL.

main90105-17021iMXPA11..6F..N;MXPA11..LHD..CVT..N202107-202407

OD=17,(J),TYPE D:REF ILL.

main90105-W0070iKSP211..G202007-202107

OD=17,(L),TYPE D:REF ILL.

main90105-W0327iMXPH11..RHD..R;KSP211,MXPA11..RHD..(G,R)202107-202407

OD=17,(L),TYPE D:REF ILL.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iKSP211..G202007-202407

43212KNUCKLE, STEERING, LH

main43212-02410iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202407

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17013iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407

OD=15.9,TYPE A:REFER ILLUST.

main90105-17014iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202407

OD=15,TYPE B:REFER ILLUST.

main90105-17015iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202407

OD=14,TYPE C:REFER ILLUST.

main90105-17020iKSP211..N,R;MXPA11,MXPH11202007-202106

OD=17,(J),TYPE D:REF ILL.

main90105-17021iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202107-202407

OD=17,(J),TYPE D:REF ILL.

main90105-W0070iKSP211..N,R;MXPA11,MXPH11202007-202107

OD=17,(L),TYPE D:REF ILL.

main90105-W0327iMXPH1#..N,S,V;MXPH11..R..FRP202107-202407

OD=17,(L),TYPE D:REF ILL.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iKSP211..G202007-202407

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09A50iKSP211..G202007-202407

main43330-09B80iMXPH11..V202203-202401

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12407iMXPH11..N,S;MXPA11..6F..N;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

(J)

main90105-12407iMXPH1#..N,S;MXPH11..R..FRP202401-202407

(J),TYPE A:REF ILL.

main90105-W0320iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

(L),TYPE A:REF ILL.

main90105-W0320iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202401

(L)

main91552-L1225iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

TYPE B:REFER ILLUST.

main91552-L1225iMXPH11..V202203-202401

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019iKSP211..G202007-202407

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09A50iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;MXPA11..RHD..6F..S;KSP211..LHD..(N,R);MXPA11..LHD..(G,S);MXPA11..RHD..CVT..(N,S)202007-202407

main43330-09B80iMXPH1#..V202203-202401

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12407iKSP211..G202007-202401

(J)

main90105-12407iMXPH1#..N,S;MXPH11..R..FRP202401-202407

(J),TYPE A:REF ILL.

main90105-W0320iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

(L),TYPE A:REF ILL.

main90105-W0320iKSP211..G202007-202401

(L)

main91552-L1225iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

TYPE B:REFER ILLUST.

main91552-L1225iMXPH11..V202203-202401

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019iKSP211..G202007-202407

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0D340iMXPH1#..V202203-202401

main48068-K0020iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;MXPA11..RHD..6F..S;KSP211..LHD..(N,R);MXPA11..LHD..(G,S);MXPA11..RHD..CVT..(N,S)202007-202407

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-W0045iMXPH1#..N,S,V;MXPH11..R..FRP202007-202407

(L)

main90179-14068iKSP211..G202007-202407

(J)

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14193iMXPH1#..N,S,V;MXPH11..R..FRP202107-202407

(J)

main90119-14193iKSP211..G202007-202107

main90119-W0365iMXPH11..RHD..R;KSP211,MXPA11..RHD..(G,R)202107-202407

(L)

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

(J)

main90119-W0279iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

(L)

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0D260iMXPH1#..V202203-202401

main48069-K0020iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-W0045iKSP211..G202007-202407

(L)

main90179-14068iKSP211..G202007-202407

(J)

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14193iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202107-202407

(J)

main90119-14193iKSP211..G202007-202107

main90119-W0365iMXPH1#..N,S,V;MXPH11..R..FRP202107-202407

(L)

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180iKSP211..G202007-202407

(J)

main90119-W0279iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

(L)

48614PLATE, ARM ATTACHMENT, INNER RH NO.1

main48614-0D010iMXPH11..V202203-202401

48617PLATE, ARM ATTACHMENT, INNER LH NO.1

main48614-0D010iMXPH1#..V202203-202401

9538102525

main95381-02525

26 parts on this diagram · 1 diagram in section
