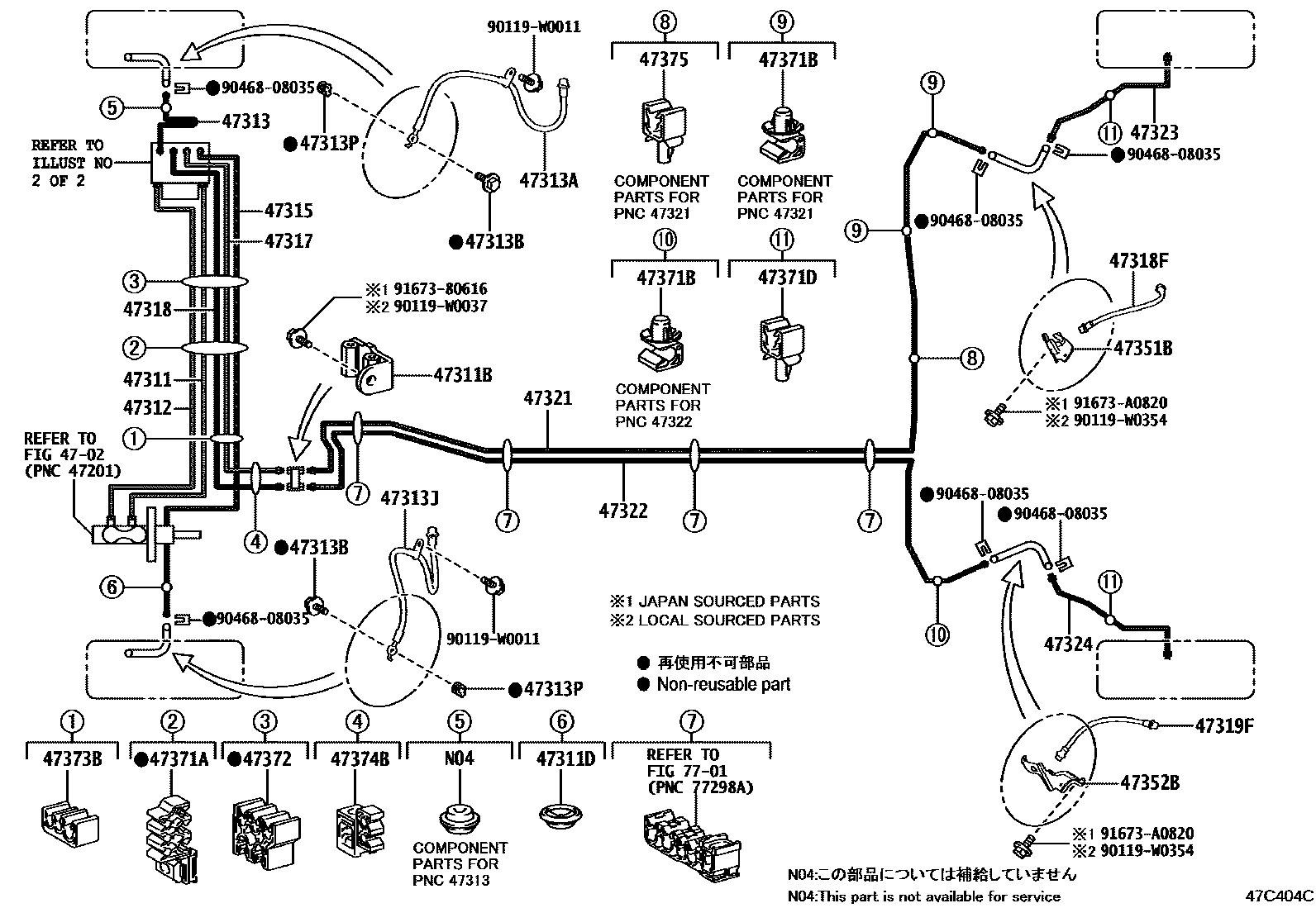

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE ACTUATOR 0006 1BRAKE ACTUATOR 0007 1BRAKE ACTUATOR 0008 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-K0030iMXPA11..LHD..N202401-202407

main47311-K0050iKSP211..RHD..N;MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

main47311-K0080iMXPH11..LHD..R..FRP;MXPH11..LHD..(N,S,V)202007-202401

main47311-K0100iMXPH1#..RHD..(N,S,V)202401

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10317iKSP211..G202007-202105

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202401

47312TUBE, FRONT BRAKE, NO.2

main47312-K0030iMXPA11..LHD..N202007-202401

main47312-K0050iKSP211..RHD..R;MXPA11..RHD..G202007-202205

main47312-K0080iMXPH11..R..FRP;MXPH1#..LHD..(N,S,V)202401

main47312-K0100iMXPH11..RHD..G202007

47313TUBE, FRONT BRAKE, NO.3

main47313-0DA30iMXPH11..(G,R)..CZEP202111

main47313-K0010iKSP211..RHD..R;MXPA11..RHD..G202007-202205

main47313-K0030iMXPA11..LHD..N202007-202401

main47313-K0070iMXPH11..LHD..G..FRP202007

main47313-K0080iMXPH11..RHD..G202007

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-W2055iKSP211..G202007-202105

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-W2056iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iMXPH1#..N,S,V;MXPH11..R..FRP202401

47315TUBE, FRONT BRAKE, NO.5

main47315-0DA30iMXPH11..(G,R)..CZEP202111

main47315-K0010iKSP211..RHD..R;MXPA11..RHD..G202007-202205

main47315-K0030iMXPA11..LHD..N202007-202401

main47315-K0070iMXPH11..LHD..G..FRP202007

main47315-K0080iMXPH11..RHD..G202007

47317TUBE, FRONT BRAKE, NO.7

main47317-K0010iKSP211..RHD..G202007-202105

main47317-K0030iMXPA11..LHD..N202401-202407

main47317-K0070iMXPH11..(G,R)..CZEP;MXPH11..LHD..G..FRP202007

main47317-K0080iMXPH11..RHD..(N,S,V)202007-202401

47318TUBE, FRONT BRAKE, NO.8

main47318-K0010iMXPA11..RHD..6F..N202007-202401

main47318-K0030iMXPA11..LHD..N202401-202407

main47318-K0070iMXPH11..(G,R)..CZEP;MXPH11..LHD..G..FRP202007

main47318-K0080iMXPH11..RHD..R202007-202205

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-W2057iMXPH11..G;MXPH11..R..CZEP202007

main90947-W2059iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-W2058iMXPH1#..N,S,V;MXPH11..R..FRP202401

main90947-W2059iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202401

47321TUBE, REAR BRAKE, NO.1

main47321-0D490iKSP211..G202007-202105

main47321-0D520iMXPH11..G;MXPH11..R..CZEP202007

47322TUBE, REAR BRAKE, NO.2

main47322-0D520iKSP211..G202007-202105

47323TUBE, REAR BRAKE, NO.3

main47323-0D390iMXPA11..N..CZEP202111-202401

main47323-K0020iKSP211..G202007-202105

47324TUBE, REAR BRAKE, NO.4

main47324-0D390iKSP211..CZEP;MXPA11..(G,S)..CZEP202111

main47324-K0020iKSP211..G202007-202105

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-K0030iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-K0030iKSP211..G202007-202105

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01E31iKSP211..LHD..G202007-202105

main90949-01E43×2iMXPH11..RHD..(N,S,V)202007-202401

main90949-01E44iMXPH11..LHD..R..FRP;MXPH11..LHD..(N,S,V)202007-202401

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D17×3iKSP211..RHD..R;MXPA11..RHD..G202007-202205

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01E01×2iKSP211..RHD..R;MXPA11..RHD..G202007-202205

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E30iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202205

main90949-01E31iMXPH11..(G,R)..CZEP;MXPH11..LHD..G..FRP202007

main90949-01E40iMXPA11..LHD..N202007-202401

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D92iKSP211..LHD..G202007-202105

main90949-01E40iMXPH1#..RHD..(N,S,V)202401

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00957iMXPH11..LHD..R..FRP;MXPH11..LHD..(N,S,V)202007-202401

main90949-01E62iMXPH1#..RHD..(N,S,V)202401

main90949-01E75iKSP211..LHD..G202007-202105

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D17iMXPH11..RHD..(N,S,V)202007-202401

main90949-01D92iMXPH11..LHD..R..FRP;MXPH11..LHD..(N,S,V)202007-202401

main90949-01E01iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202401

7701

90119W0011

main90119-W0011

90119W0037

main90119-W0037

90119W0354

main90119-W0354

9046808035

main90468-08035

9167380616

main91673-80616

91673A0820

main91673-A0820

35 parts on this diagram · 8 diagrams in section
