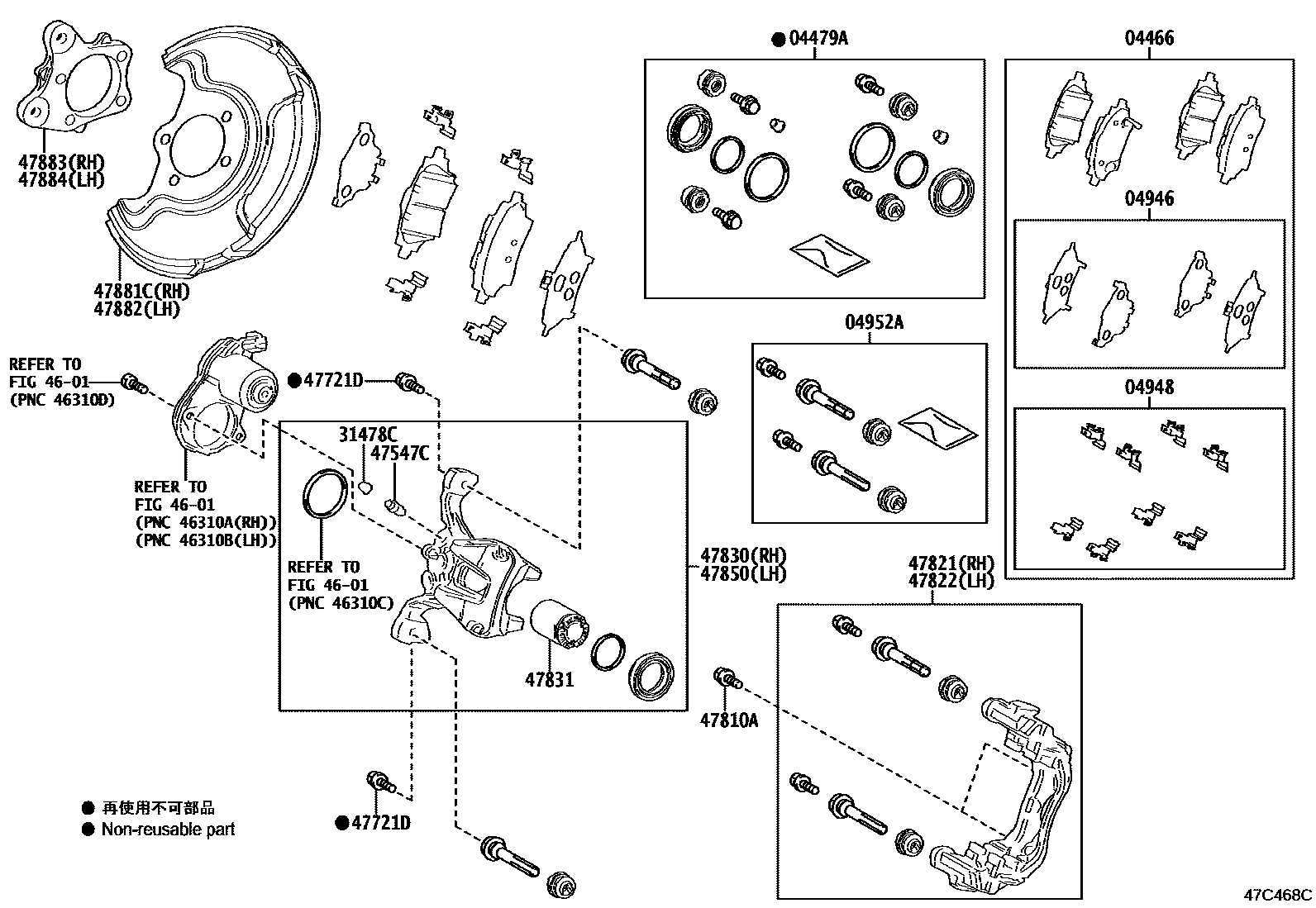

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-K0000iMXPH11202007-202212

MARK NBK D6361,W(INDICATOR)

main04466-K0001iMXPH11202212

MARK NBK D6361,W/O(INDICATOR)

main04466-K0001iMXPH1#..N,S,V;MXPH11..R..FRP202401

MARK NBK D6361

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-F4010iMXPH11..RHD..R202007-202401

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-F4010iMXPH11..RHD..R202007-202401

04948FITTING KIT, DISC BRAKE, REAR

main04948-F4010iMXPH11..RHD..R202007-202212

main04948-F4020iMXPH11..N,S,V;MXPH11..R..FRP202212-202401

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-F4020iMXPH11..RHD..R202007-202401

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main90069-39027iMXPH11..RHD..R202007-202401

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-F4030iMXPH11..RHD..R202007-202401

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90069-31417iMXPH11..RHD..R202007-202401

*8-1.00PX22-10

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iMXPH11..RHD..R¥130202007-202401

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-K9000iMXPH11..RHD..R202007-202401

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-K9000iMXPH11..RHD..R202007-202401

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-K0010iMXPH11..RHD..R202007-202401

47831PISTON, REAR DISC BRAKE

main47831-F4030iMXPH11..RHD..R202007-202401

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-K0010iMXPH11..RHD..R202007-202401

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-K0010iMXPH11..RHD..R202007-202401

47882COVER, DISC BRAKE DUST, REAR LH

main47882-K0010iMXPH11..RHD..R202007-202401

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-K0010iMXPH11..RHD..R202007-202401

47884BRACKET, CALIPER SUPPORT, REAR LH

main47884-K0010iMXPH11..RHD..R202007-202401

19 parts on this diagram · 2 diagrams in section
