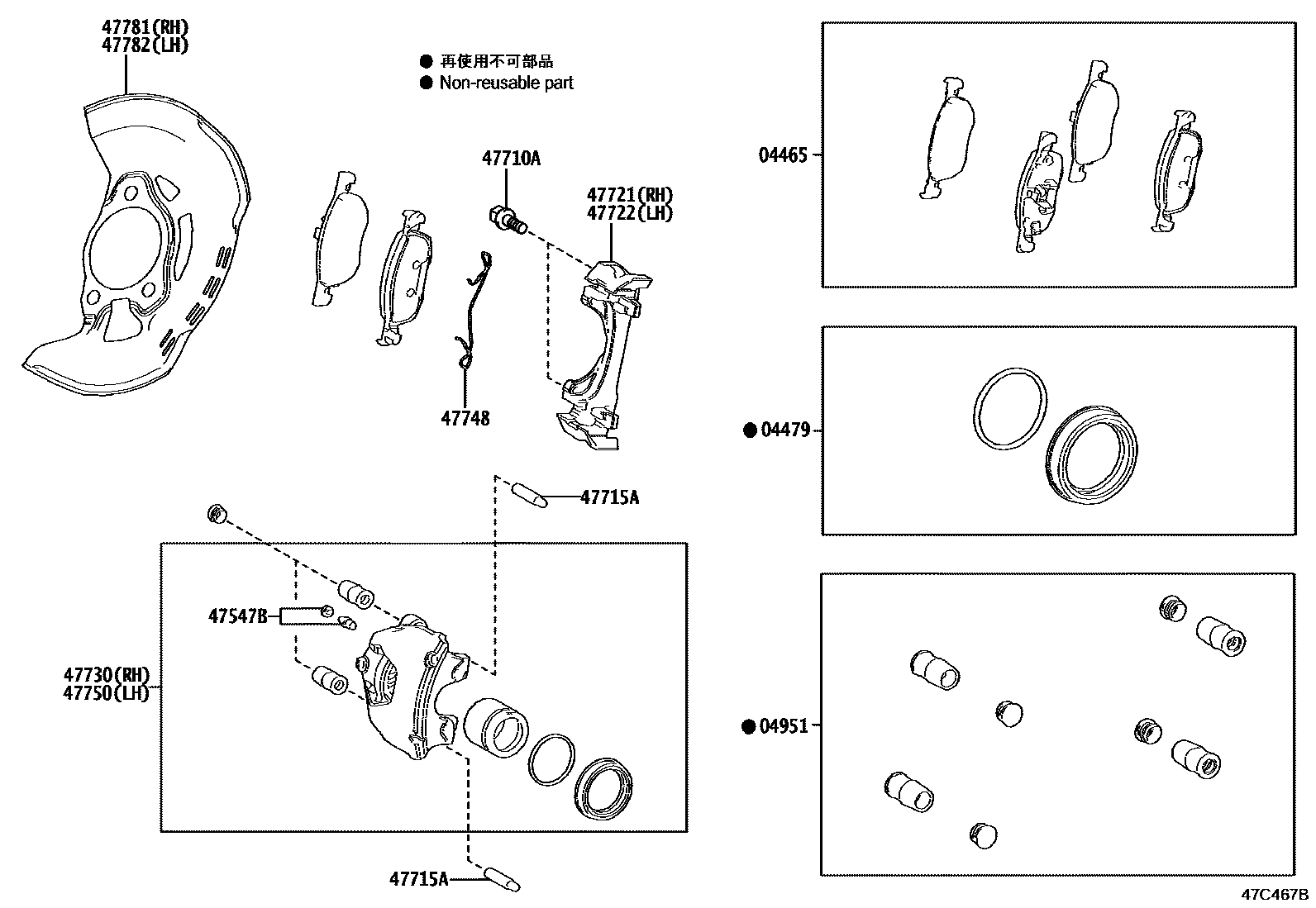

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-K0000iKSP211..RHD..N;KSP211..LHD..(N,R);MXPA11..RHD..CVT..N202007-202407

MARK GA 5019 GF

main04465-K0010iMXPH1#..N,S,V;MXPH11..R..FRP202007-202401

MARK GA 5019 GF

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-K0000iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

04951BUSH KIT, DISC BRAKE, FRONT

main04951-05010iKSP211..G¥2,050202007-202407

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-09050iMXPA11..RHD..G;KSP211,MXPH11..RHD..R¥380202007-202407

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-W0121iKSP211..G¥160202007-202407

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-05010iKSP211..G¥460202007-202407

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-K0030iKSP211..G202007-202407

main47721-K0040iMXPH11..N,S,V;MXPH11..LHD..R..FRP202007-202401

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-K0030iKSP211..RHD..R202007-202407

main47721-K0040iMXPA11..RHD..G;MXPH11..RHD..R202007-202401

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-K0030iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202407

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-0D070iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-K0030iKSP211..G202007-202407

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-K0030iKSP211..G202007-202407

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-K0030iKSP211..G202007-202407

13 parts on this diagram · 1 diagram in section
