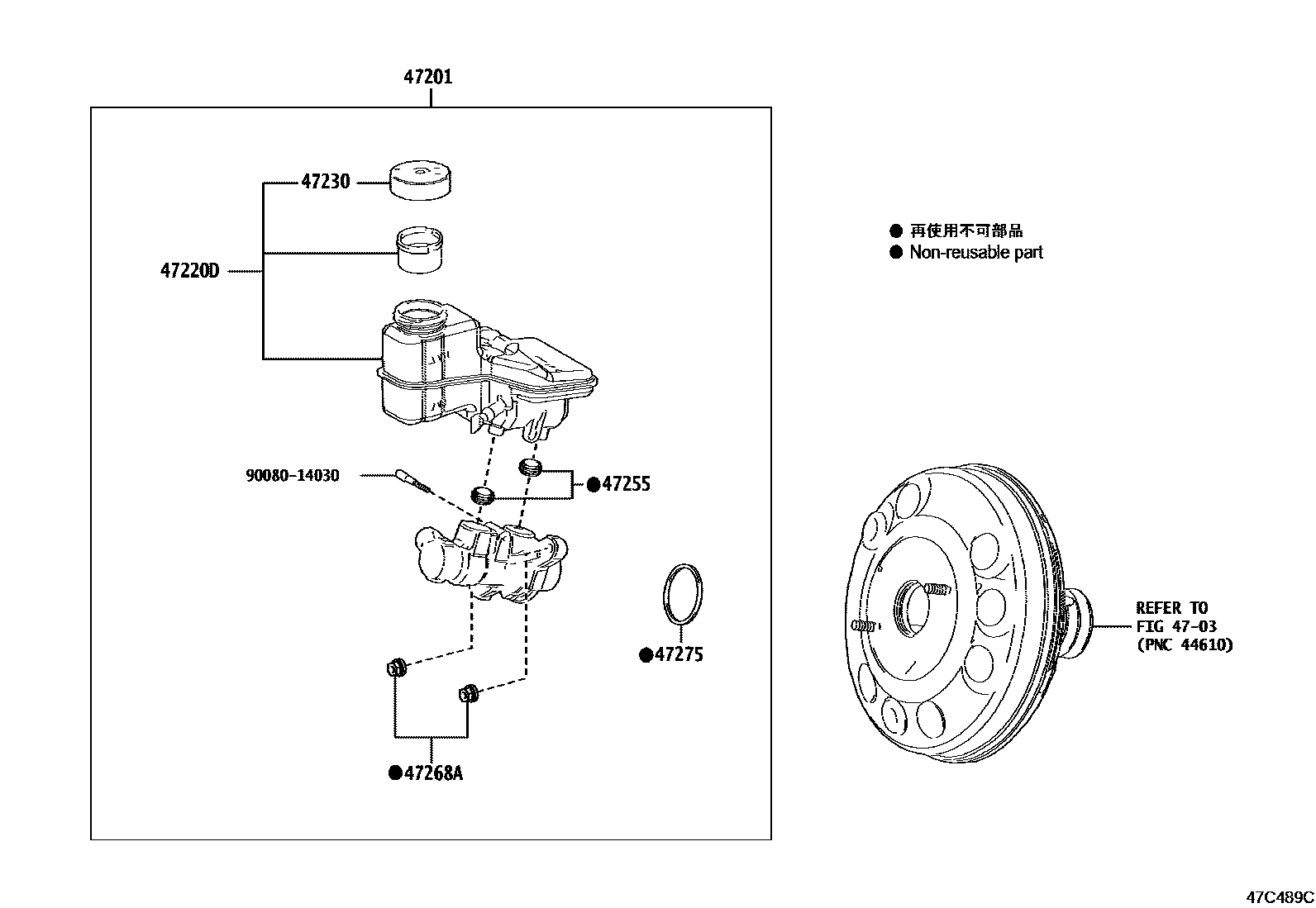

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09B80iMXPH11..R..FRP;MXPH1#..LHD..(N,S,V)202401

main47201-K9005iMXPH11..LHD..R..FRP;MXPH11..LHD..(N,S,V)202007-202401

main47201-K9015iMXPH1#..RHD..(N,S,V)202007-202401

main47201-K9025iMXPA11..LHD..N202007-202407

main47201-K9035iKSP211..RHD..G202007-202407

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-09390iMXPH11..R..FRP;MXPH1#..LHD..(N,S,V)202401

main47220-K0030iMXPA11..LHD..N202007-202407

main47220-K0040iMXPA11..RHD..6F..N202007-202407

main47220-K9005iMXPH11..(G,R)..CZEP;MXPH11..LHD..G..FRP202007-202401

main47220-K9015iMXPH11..RHD..G202007-202401

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D180iKSP211..RHD..N;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407

main47230-F4010iMXPH1#..N,S,V;MXPH11..R..FRP202007-202401

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09030iKSP211..G202007-202407

main47255-09040iMXPH1#..N,S,V;MXPH11..R..FRP202007-202401

47268ANUT, BRAKE MASTER CYLINDER

main47268-05010iKSP211..G202007-202407

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iMXPH11..G;MXPH11..R..CZEP202007-202401

main47275-0D020iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

9008014030

main90080-14030

8 parts on this diagram · 4 diagrams in section
