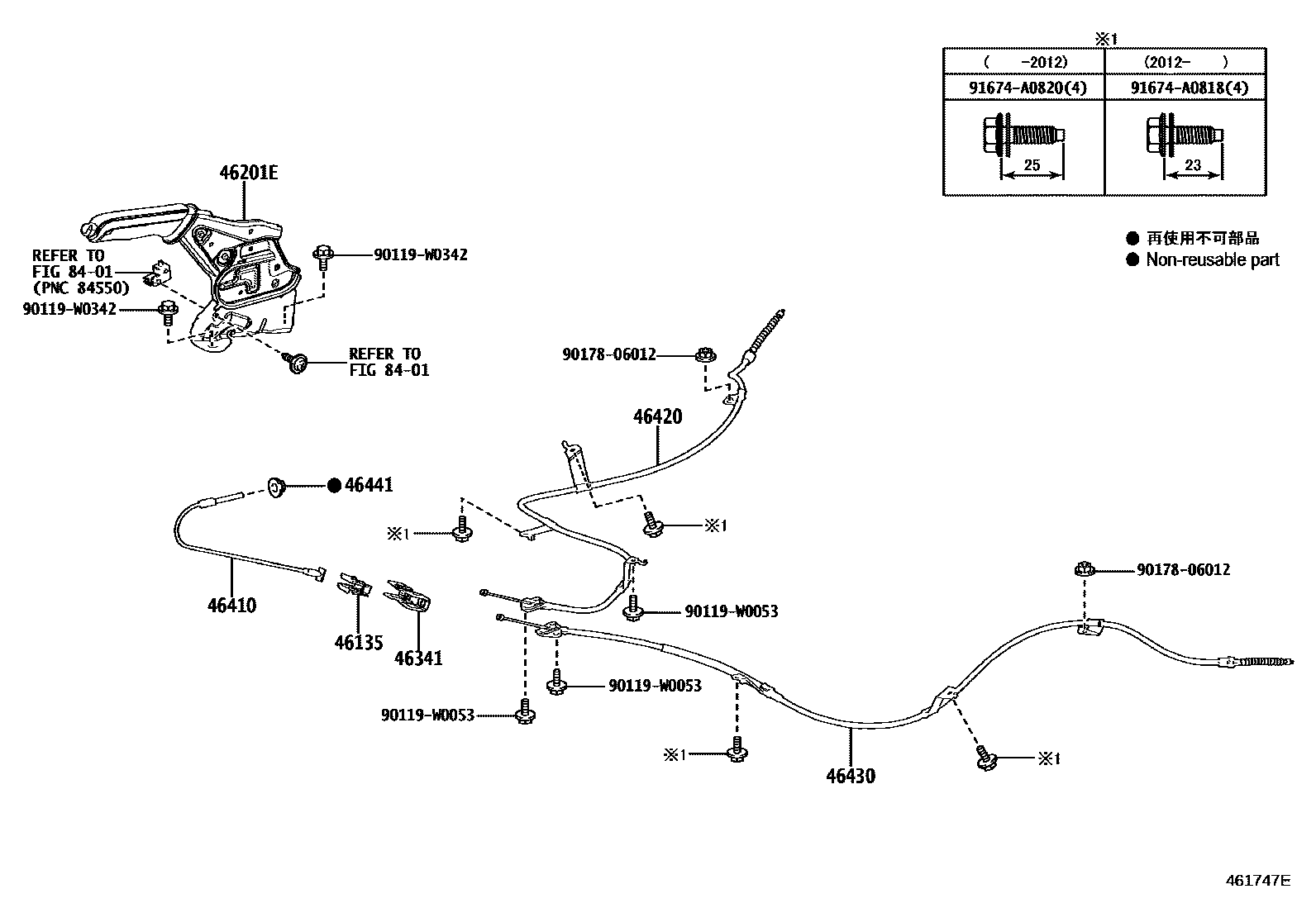

PARKING BRAKE & CABLE

0001 1 0002 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-K0010iKSP211..RHD..R;MXPA11..RHD..G202007-202205

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-K0010-C0iMXPA11..RHD..G202007-202205

BLACK,TRIM1#,2#

46341EQUALIZER, PARKING BRAKE

main46341-K0010iKSP211..G202007-202105

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-K0010iKSP211..G202007-202105

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D360iMXPA11..V202203

main46420-K0050iKSP211..RHD..R;MXPA11..RHD..G202007-202205

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D370iMXPA11..V202203

main46430-K0050iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202401

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iKSP211..G202007-202105

8401

90119W0053

main90119-W0053

90119W0342

main90119-W0342

9017806012

main90178-06012

91674A0818

main91674-A0818

91674A0820

main91674-A0820

13 parts on this diagram · 2 diagrams in section
