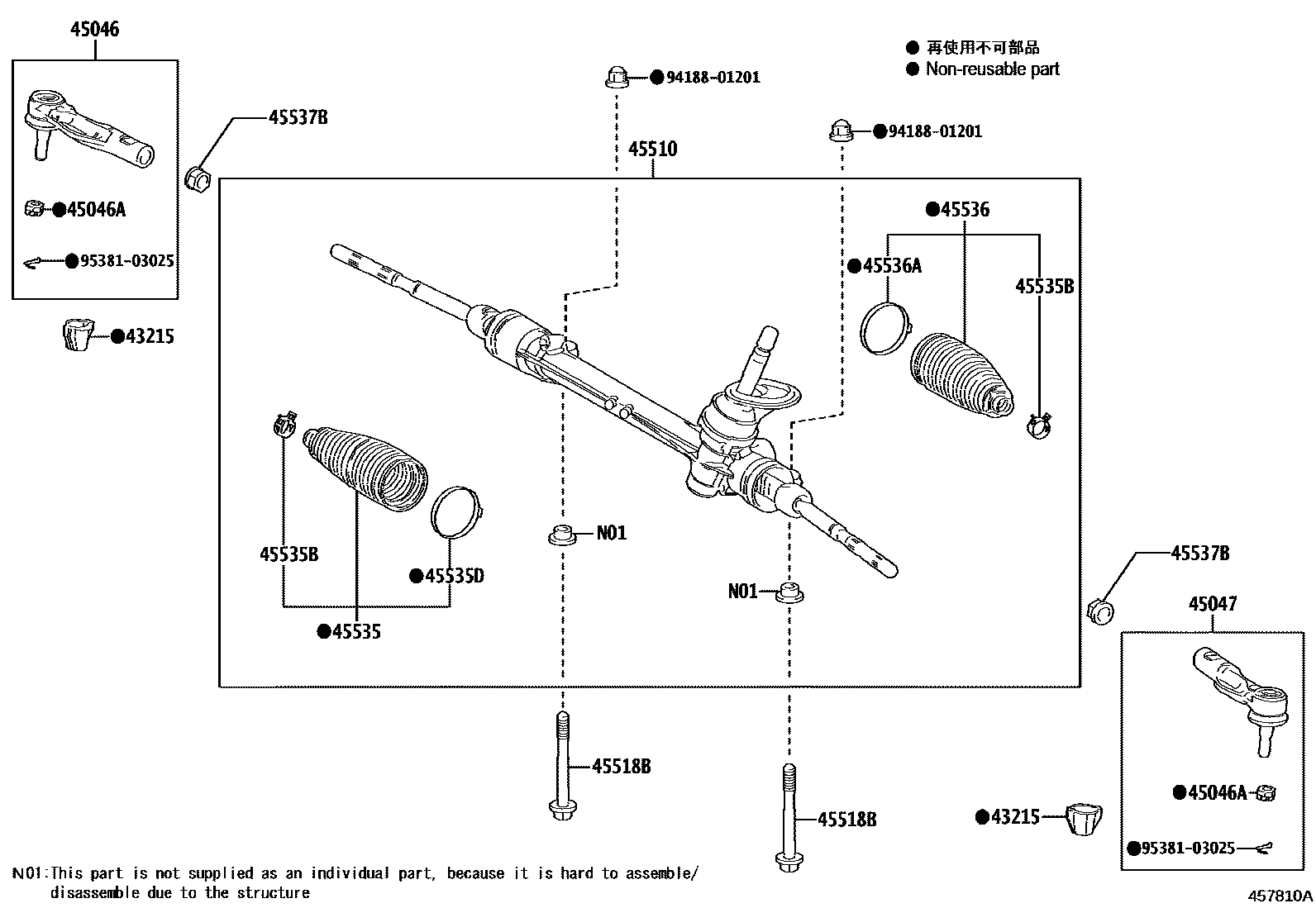

FRONT STEERING GEAR & LINK

0001 1 0002 1

43215SEAL, STEERING KNUCKLE

main43215-12010iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

45046END SUB-ASSY, TIE ROD, RH

main45046-09A20iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

main45046-F9010iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iKSP211..G202007-202407

45047END SUB-ASSY, TIE ROD, LH

main45047-09450iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202401

main45047-F9010iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

45510GEAR ASSY, STEERING

main45510-0D640iMXPH11..RHD..N202401

TIRE & DISC WHEEL-195/55R16, 6J, ALUMINUM

main45510-0D640iMXPH11..RHD..N202401

TIRE & DISC WHEEL-195/55R16,6J,ALUMINUM

main45510-0D670iMXPH1#..LHD..S202401

TIRE & DISC WHEEL-195/55R16, 6J, ALUMINUM

main45510-0D670iMXPH11..LHD..N202401

TIRE & DISC WHEEL-195/55R16,6J,ALUMINUM

main45510-0H100iMXPH1#..LHD..S..FRP202401

LW PACKAGE&TIRE & DISC WHEEL-185/65R15, 6J, STEEL

main45510-0H100iMXPH11..LHD..S202401

TIRE & DISC WHEEL-185/65R15, 6J, ALUMINUM, ROUGH ROAD SPEC

main45510-0H100iMXPA11..LHD..N202401-202407

main45510-0H110iMXPA11..RHD..6F..N202401-202407

main45510-0H110iMXPH11..RHD..S202401

LW PACKAGE&TIRE & DISC WHEEL-185/65R15, 6J, STEEL

main45510-K0040iKSP211,MXPH11..RHD..R202007-202205

TIRE & DISC WHEEL-185/65R15, 6J, ALUMINUM

main45510-K0040iMXPH11..RHD..G202007-202401

TIRE & DISC WHEEL-185/65R15, 6J, STEEL

main45510-K0050iMXPH11..RHD..G;MXPA11..RHD..(S,V)202007-202401

TIRE & DISC WHEEL-195/55R16, 6J, ALUMINUM

main45510-K0050iKSP211..RHD..G202007-202205

main45510-K0050iMXPH11..RHD..(S,V)202007-202401

TIRE & DISC WHEEL-195/55R16, 6J, ALUMINUM(BLACK)

main45510-K0060iMXPH11..LHD..G..FRP;MXPA11..LHD..(G,S)..FRP202007-202401

TIRE & DISC WHEEL-185/65R15, 6J, STEEL

main45510-K0060iMXPH11..LHD..G..FRP;MXPA11..LHD..(G,S)..FRP202007-202401

TIRE & DISC WHEEL-185/65R15, 6J, ALUMINUM, ROUGH ROAD SPEC

main45510-K0060iMXPH11..LHD..G..FRP;MXPA11..LHD..(G,S)..FRP202007

TIRE & DISC WHEEL-185/65R15, 6J, ALUMINUM

main45510-K0070iMXPH11..LHD..(S,V)202007-202401

TIRE & DISC WHEEL-195/55R16, 6J, ALUMINUM

main45510-K0070iMXPH11..LHD..G;MXPA11..LHD..(G,S,V)202007-202401

TIRE & DISC WHEEL-195/55R16, 6J, ALUMINUM(BLACK)

main45510-K0070iKSP211..LHD..G202007-202105

45518BBOLT, STEERING RACK HOUSING

main90119-12458iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main90119-W0367iKSP211..G202007-202401

45535BOOT, STEERING RACK, NO.1

main45535-F9010iKSP211..G202007-202404

main45535-F9011iMXPA11..6F..N;MXPA11..LHD..CVT..N202405-202407

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-F4010iKSP211..G202007-202404

main45538-F4011iMXPA11..6F..N;MXPA11..LHD..CVT..N202405-202407

45536BOOT, STEERING RACK, NO.2

main45535-F9010iKSP211..G202007-202404

main45535-F9011iMXPA11..6F..N;MXPA11..LHD..CVT..N202405-202407

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-F4010iKSP211..G202007-202404

main45538-F4011iMXPA11..6F..N;MXPA11..LHD..CVT..N202405-202407

45537BNUT, RACK END LOCK

main90178-16001iKSP211..G202007-202407

9418801201

main94188-01201

9538103025

main95381-03025

14 parts on this diagram · 2 diagrams in section
